Ariba Analytics using SAP Analytics Cloud, Data Intelligence Cloud and HANA DocStore – Part 3

webadmin

This is Part Three of a blog series on Ariba Analytics using SAP Analytics Cloud, Data Intelligence Cloud and HANA DocStore. If you would like to start with Part One, please click here

Ariba Analytics using SAP Analytics Cloud, Data Intelligence Cloud and HANA DocStore – Part 1

Recap

SAP Analytics Cloud makes it easy for businesses to understand their data through its stories, dashboards and analytical applications. Our worked example is using SAP Ariba Data to create an SAC Story that lets you know how much spend has been approved within Ariba Requisitions created in the last thirty days

A simple SAC Story tracking Approved Requisitions

In Part One of our blog series we discussed how we can retrieve data from SAP Ariba’s APIs using SAP Data Intelligence Cloud. We stored this data as JSON Documents in the SAP HANA Document Store

In Part Two of our blog series we built SQL and Calculation Views on top of our JSON Document Collection

In this blog post we’ll use the Calculation View in SAP Analytics Cloud as a Live Data Model, which will provide the data to our SAP Analytics Cloud Story

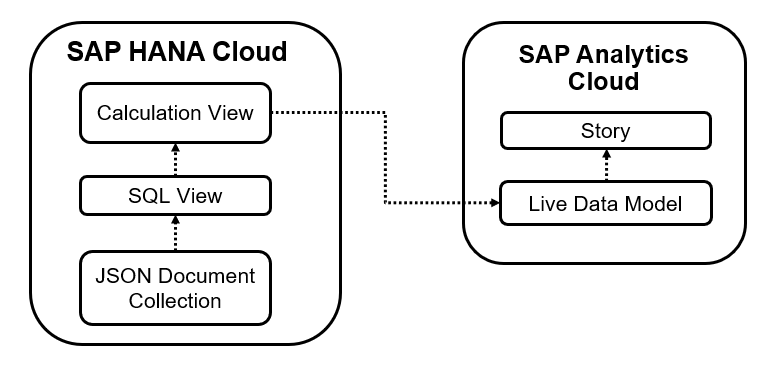

Viewing our HANA DocStore Collection data in an SAP Analytics Cloud Story

Accessing our HDI Container from SAP Analytics Cloud

Before we can consume our Calculation View in SAP Analytics Cloud, we’ll need to connect SAC to our HDI Container. We can do this from within SAC itself

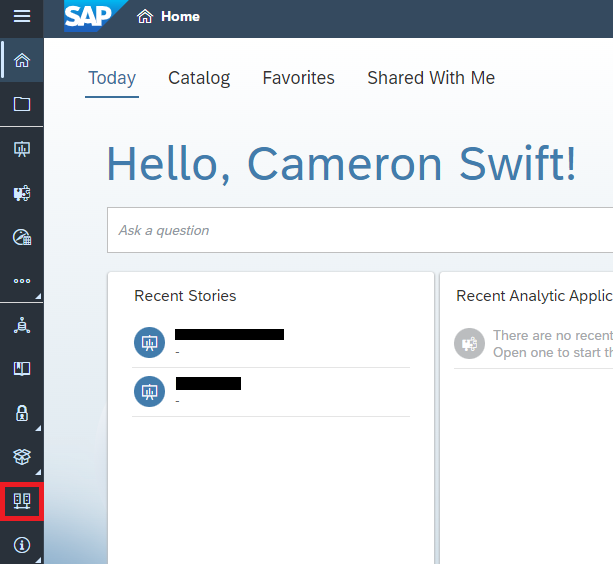

Click on Connections

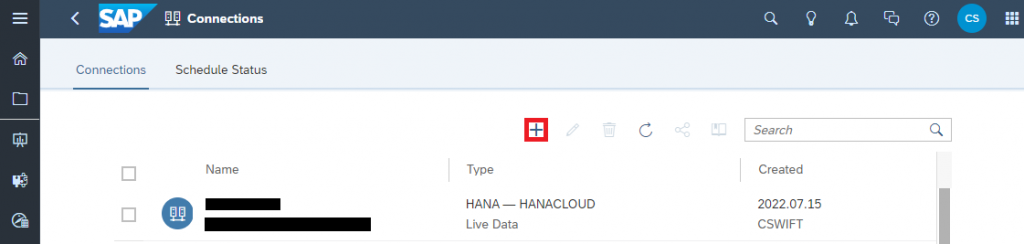

Click on Add Connection

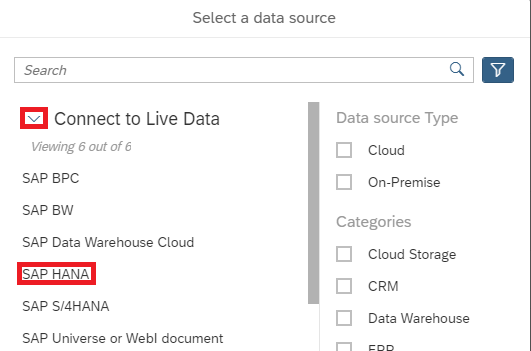

Select SAP HANA under Connect to Live Data

Next, we’ll have to enter the host and credentials for our HDI Container. If you’re not sure where to find these, refer to Part One of this blog series where we retrieved these for Data Intelligence Cloud (under the heading Creating Our Connections in Data Intelligence)

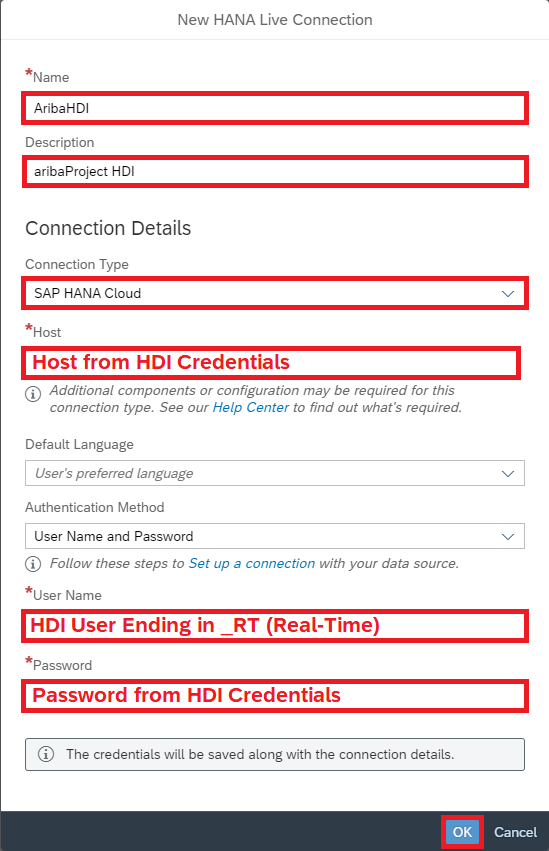

Choose HANA Cloud as the Connection Type, enter HDI details then click OK

Our HANA Cloud Connection has been created and now we’re ready to create in SAC

Creating a Live Data Model

Within SAP Analytics Cloud we’re going to use a Live Data Model to access our Calculation View in real time. This means that the data in our Document Store Collection will be available immediately after our Data Intelligence Pipeline updates it

Another benefit of using this Live Data Model compared to creating a Model on Acquired Data is that data doesn’t need to be copied to SAP Analytics Cloud for use

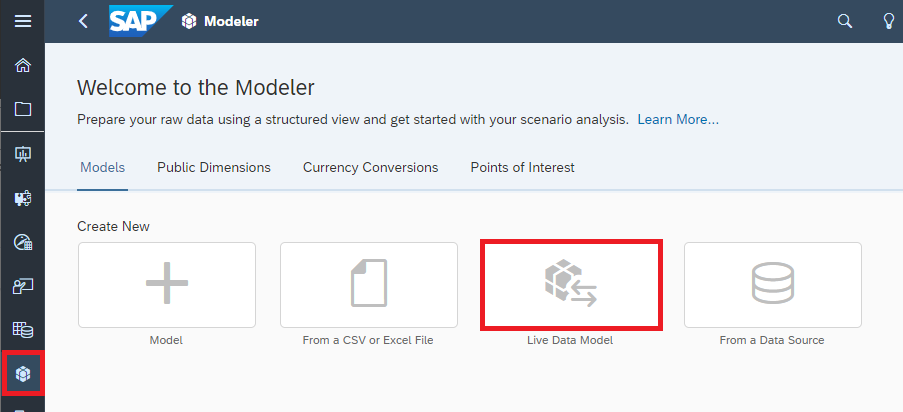

Click on Modeler, then Live Data Model

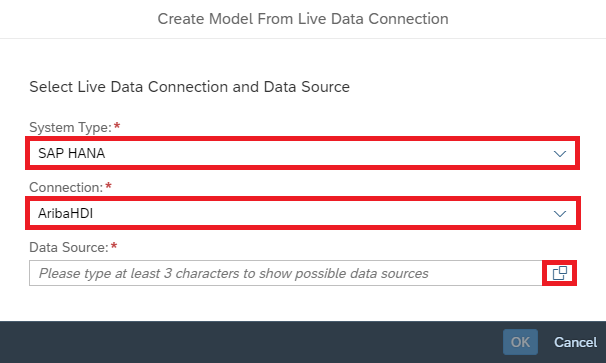

Select SAP HANA as the System Type, our AribaHDI Connection then click on the Input Help for Data Source

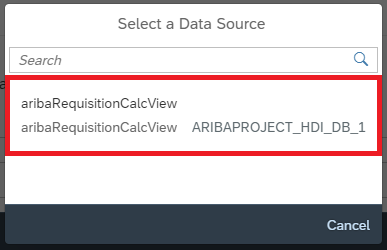

Click on our Calculation View

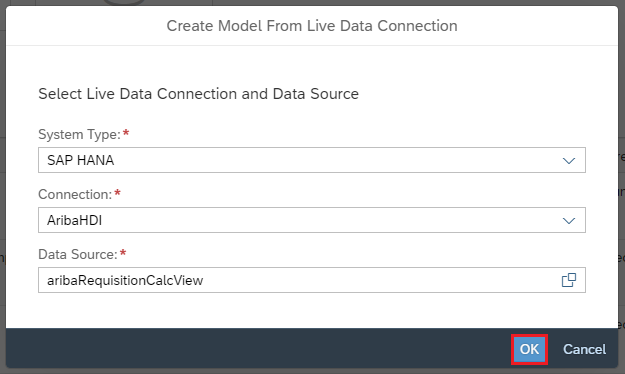

Click OK

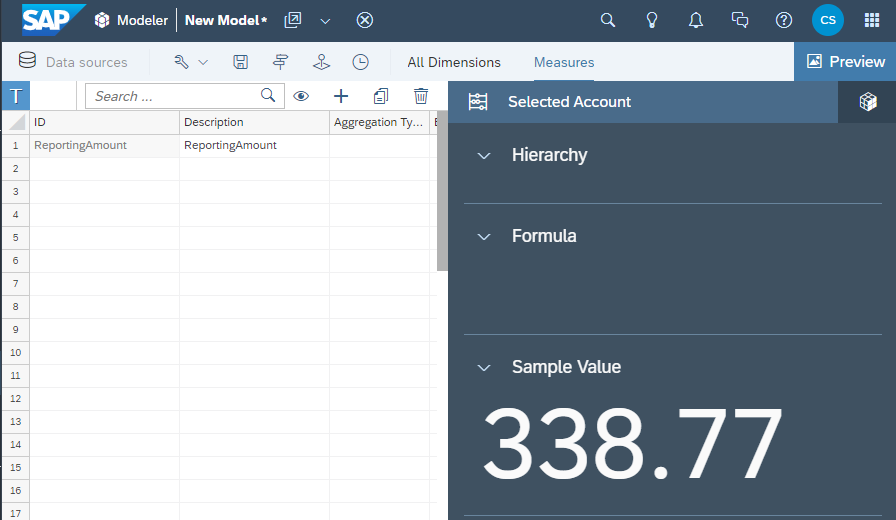

Now we’re looking at the Live Data Model in the SAP Analytics Cloud Modeler. We can see our Calculated Measure, ReportingAmount

Viewing the Measures for our Live Model

We can also check the Live Model’s Dimensions

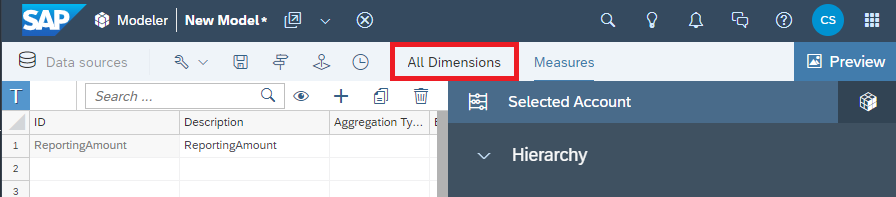

Click on All Dimensions

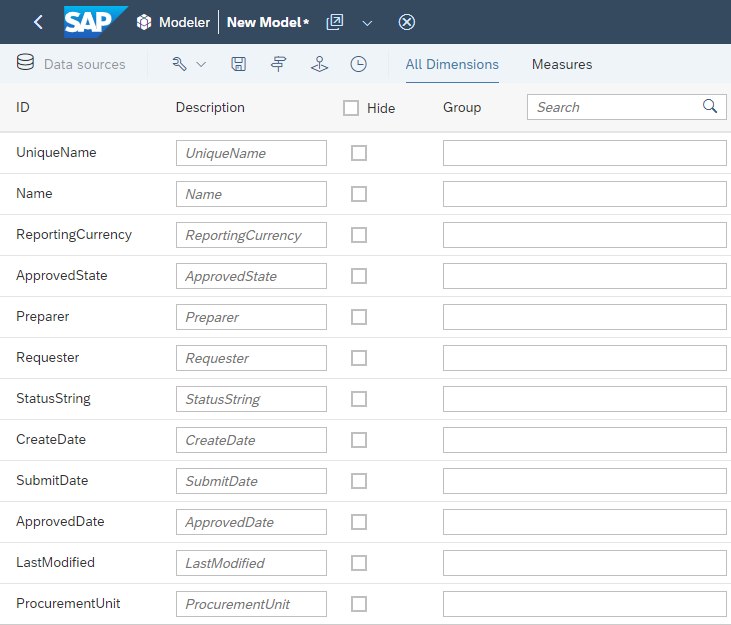

Our Dimensions are all here

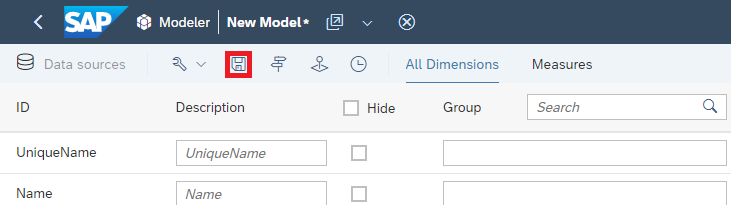

Click on Save

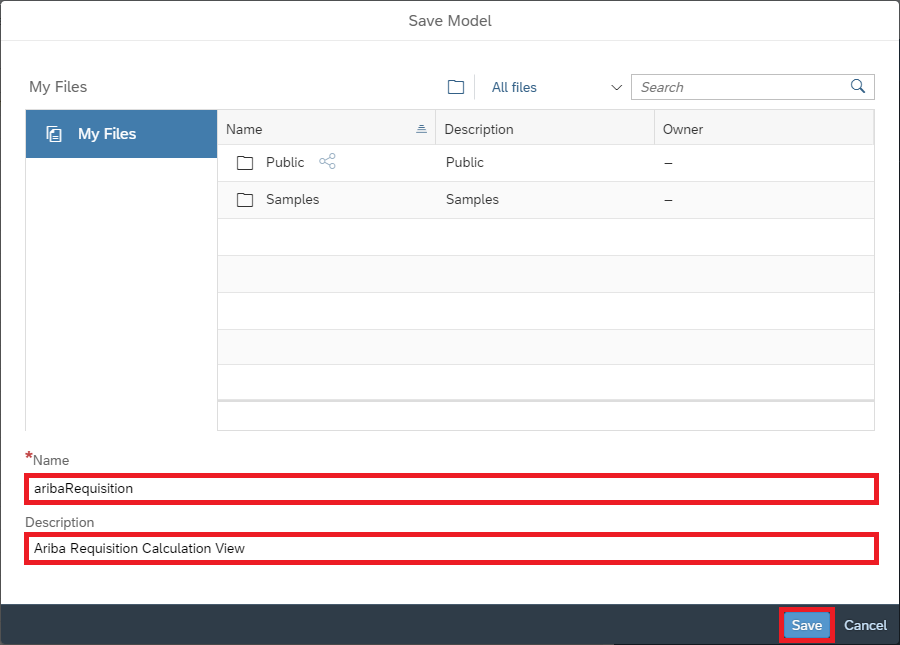

Enter a Name and Description then click Save

Now that we’ve got our Live Data Model, we’re ready to create our Story and visualize our Ariba Data

Creating an SAC Story

Stories within SAP Analytics Cloud let us use visualize data in a number of ways, including charts, visualizations and images

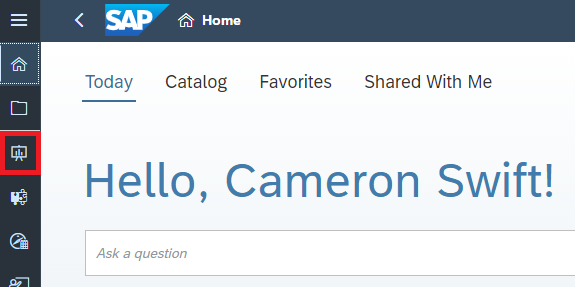

Click on Stories

Within a Story there are a number of different Page Types available. For our example we’re going to add a Responsive Page. A Responsive Page allows you to create layouts that resize and adapt when viewed on different screen sizes

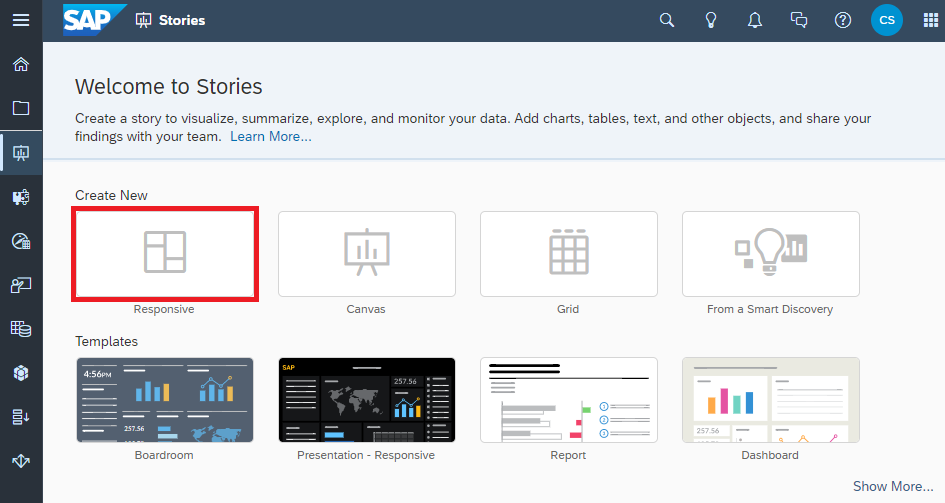

Click on Responsive Page

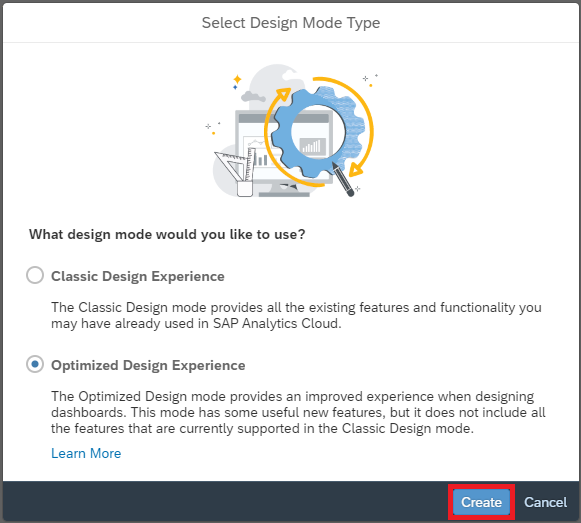

Leave Optimized Design Experience selected and click Create

First we’re going to give our Page a title – for example: Approved Requisitions (Past 30 Days)

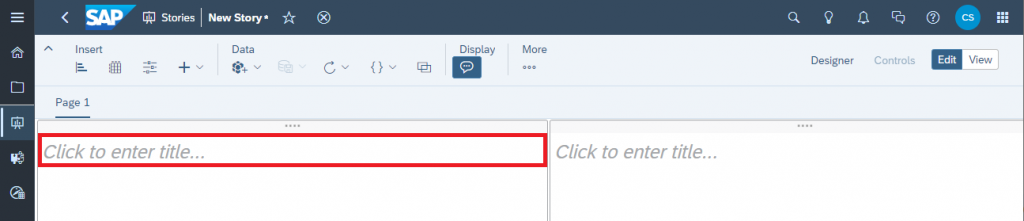

Double Click then give your Page a title

Next, we’re going to attach the Live Data Model we created to our Story

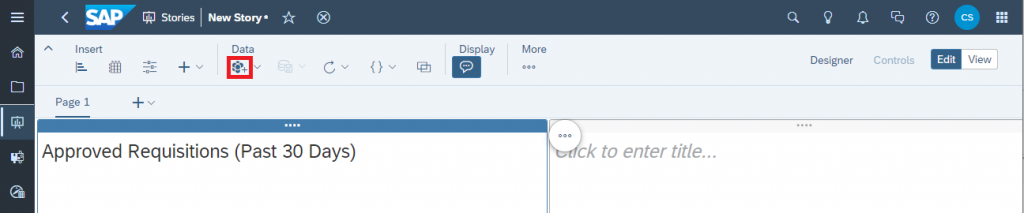

Click on Add New Data

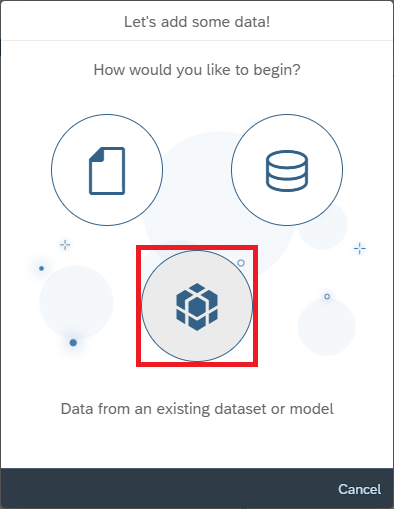

Click on Data from an existing dataset or model

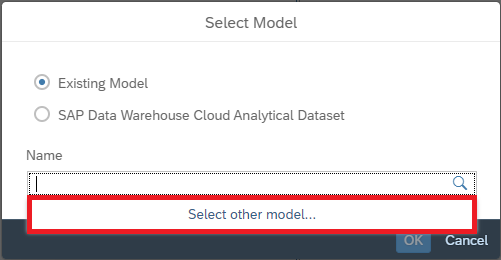

Click on Select other model

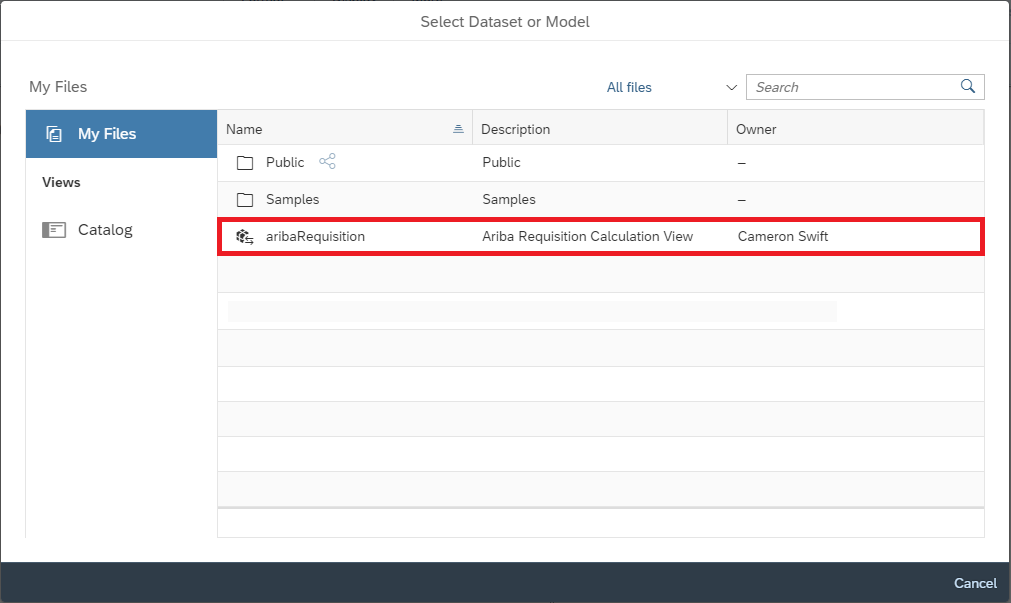

Click on our Live Data Model

Now we’re able to use the data from our Live Data Model in our Story

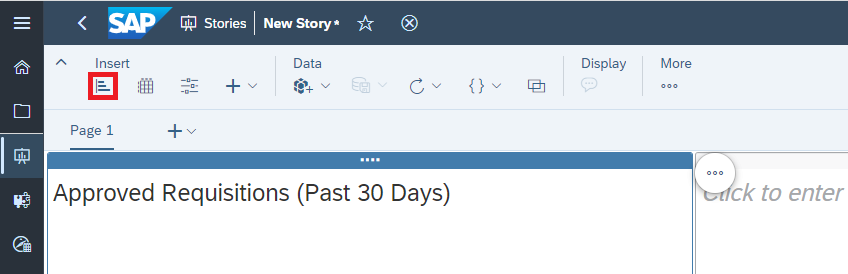

Click on Chart in the Insert Toolbar

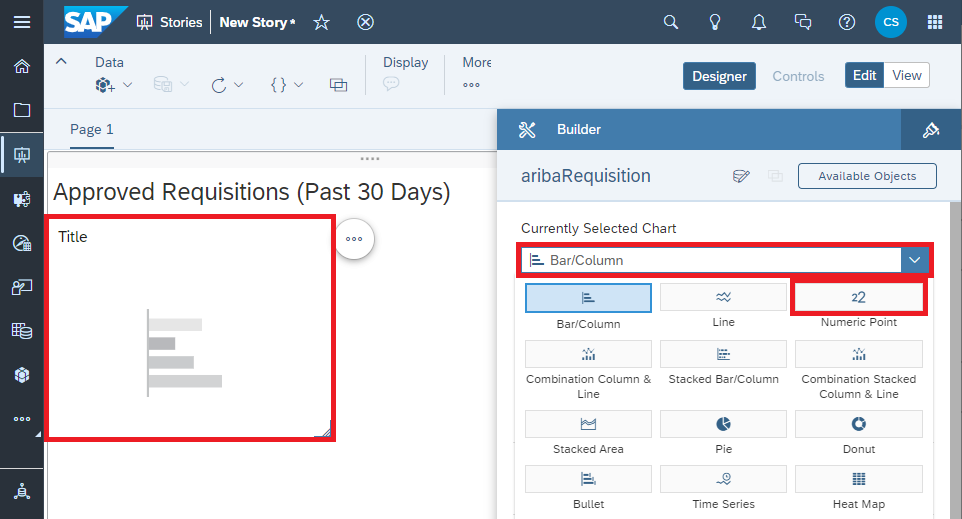

Click on our Chart, then on the Chart Type dropdown and select the Numeric Point

Now it’s time to give our chart some data

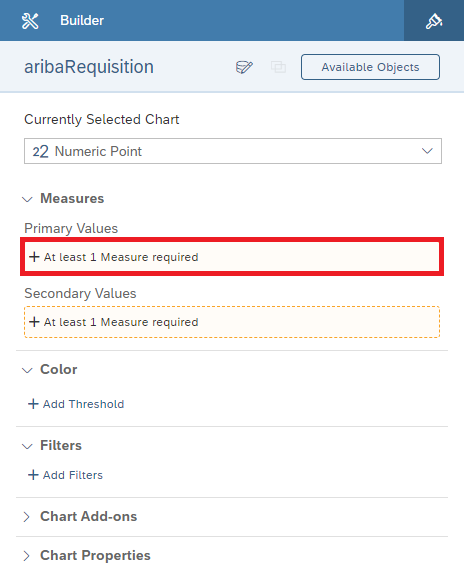

Click on Add Measure under Primary Values

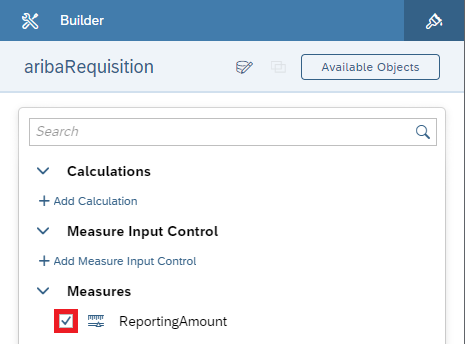

Click the checkbox next to ReportingAmount

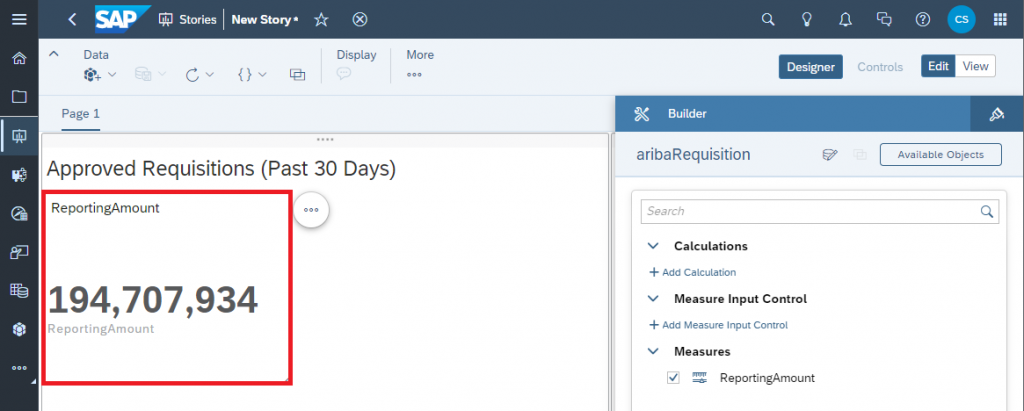

Now we can see a sum of all of our Approved Requisitions. However, we may (or rather we probably will) have Requisitions in more than one currency. To separate these Requisitions we’ll need to use Chart Filters

Click on our Numeric Point again to exit the Measure Selection

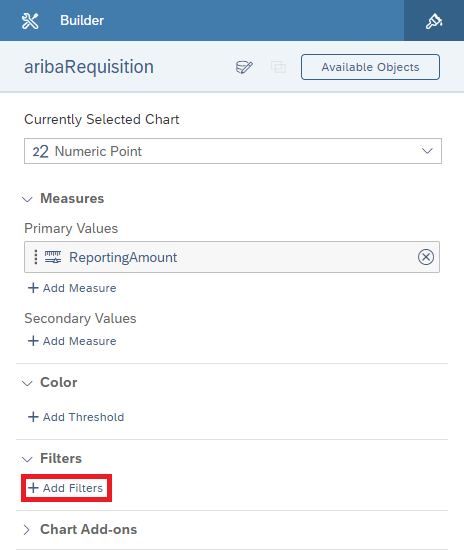

Click on Add Filters

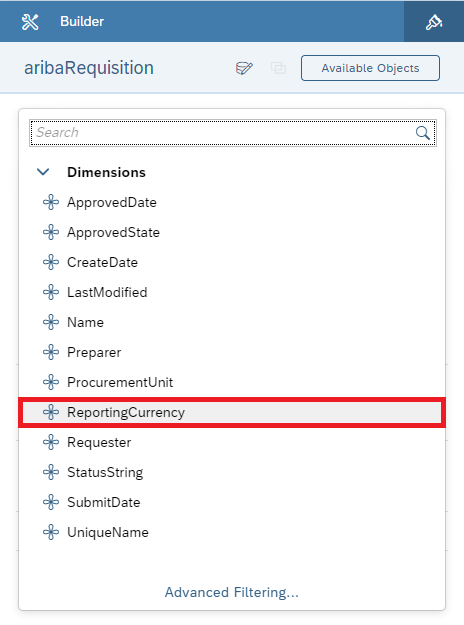

Select the Column ReportingCurrency

From here we’ll be able to select which values of ReportingCurrency we’d like to see reflected in our ReportingAmount total. Given that it doesn’t make sense to sum totals in different currencies without first converting them, we’re going to select only a single currency

The data in your system may have different currencies than mine, so feel free to adjust accordingly

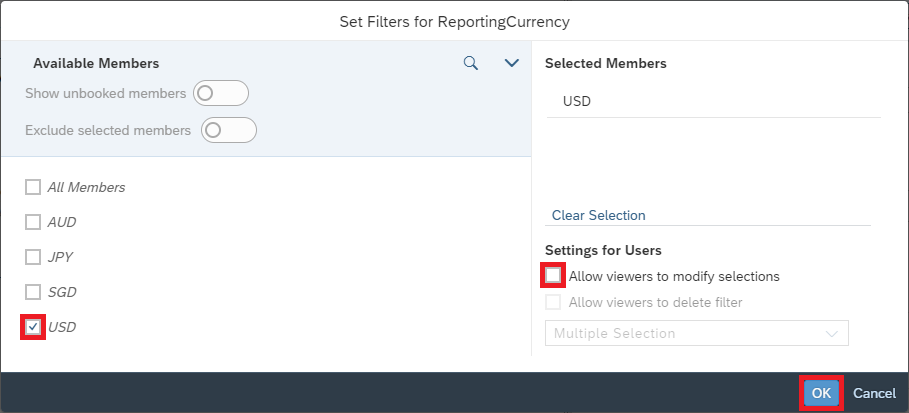

Select your currency, unselect Allow viewer to modify selections and click OK

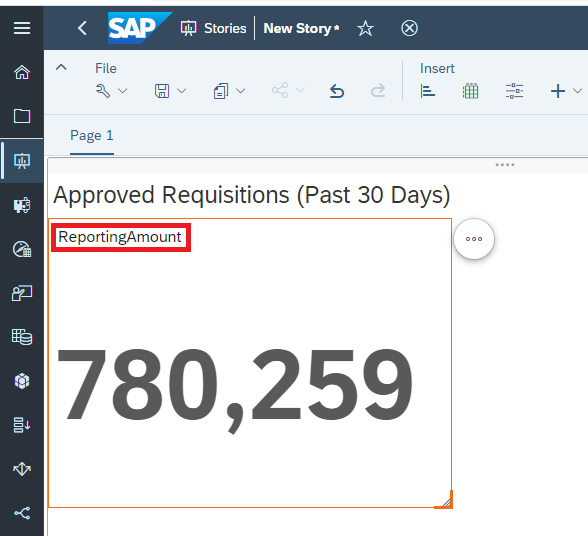

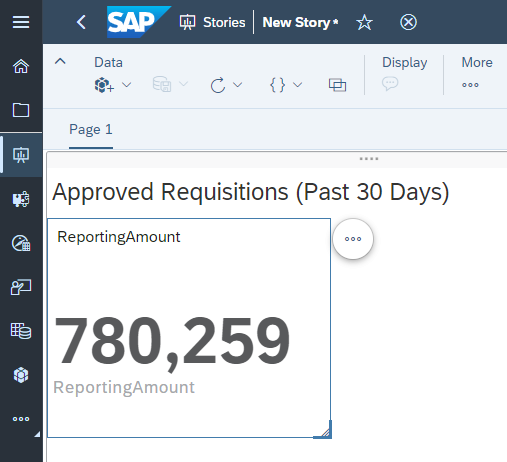

We now have our total ReportingAmount for our first currency

While it’s great to have our total, the average end user is not going to know what ReportingAmount means. It’s time to give our Numeric Point a meaningful label

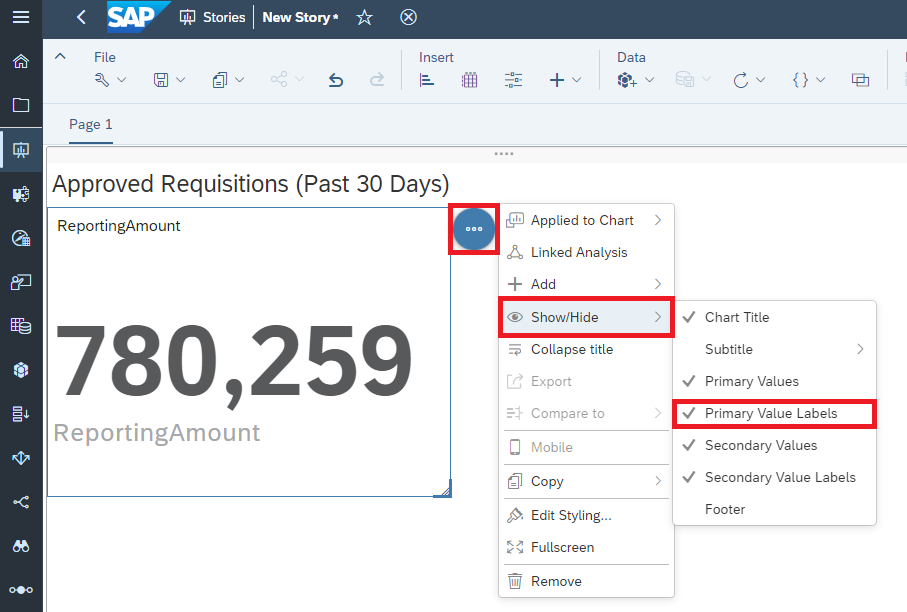

Click on Primary Value Labels under Show/Hide to turn off the lower ReportingAmount label
Double click on the Chart Title to edit

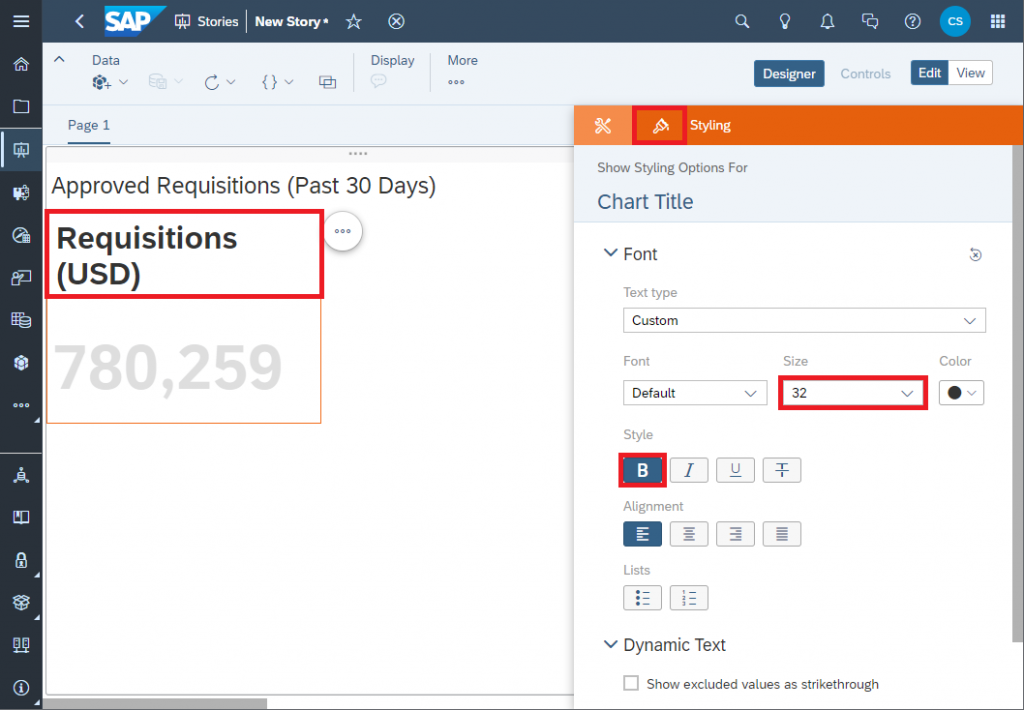

Type your Chart Title and use the Styling panel as desired

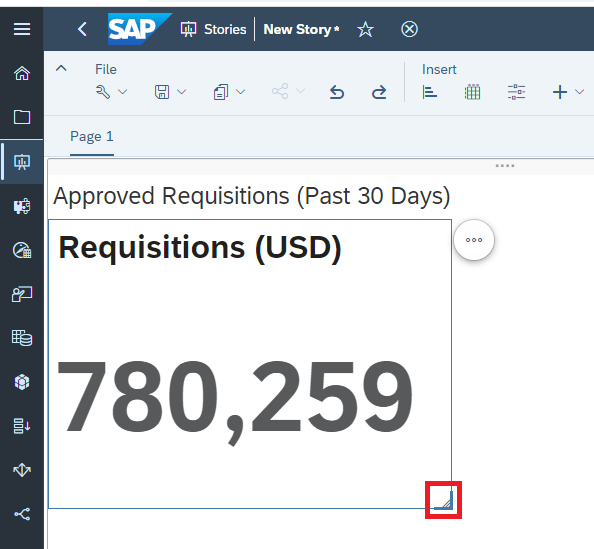

We can adjust the size of our Chart using the arrow in the corner

At this point, we have our Numeric Point set up and ready to go

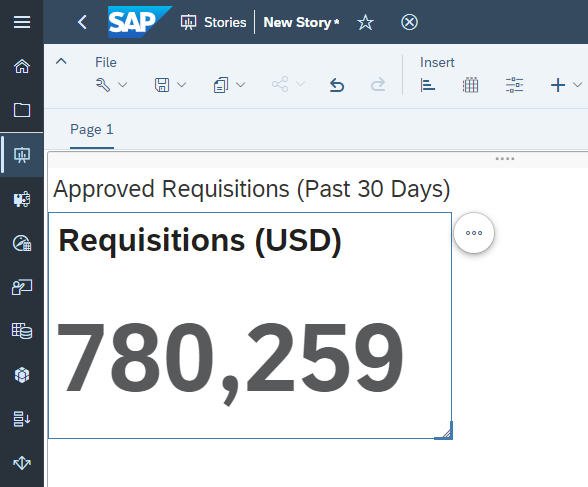

Our finished Numeric Point

If your system only has the one currency, you can leave it here. If your system has more than one currency, you can duplicate the Numeric Point, then change the Chart Filter and Chart Title using the same steps we just followed

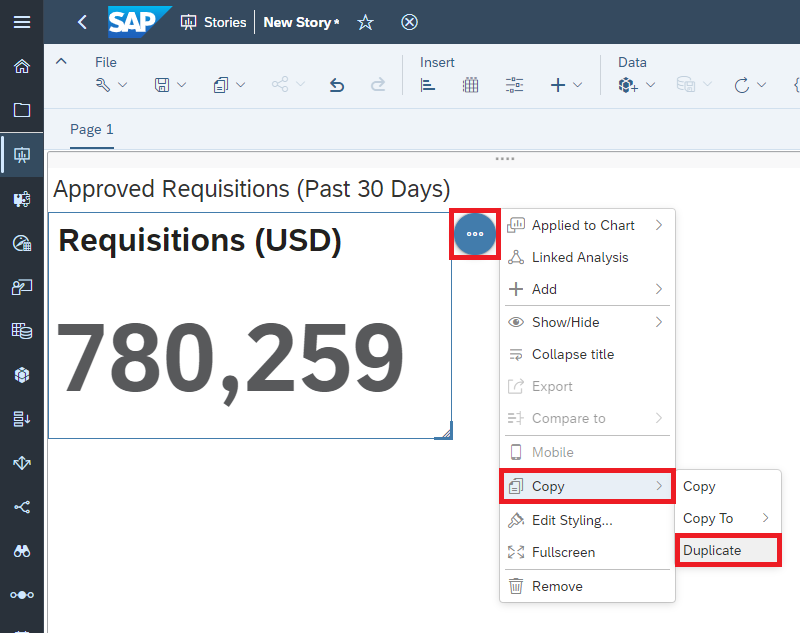

Click on Copy, then click Duplicate

Once we’ve finished with our currencies, it’s time to save

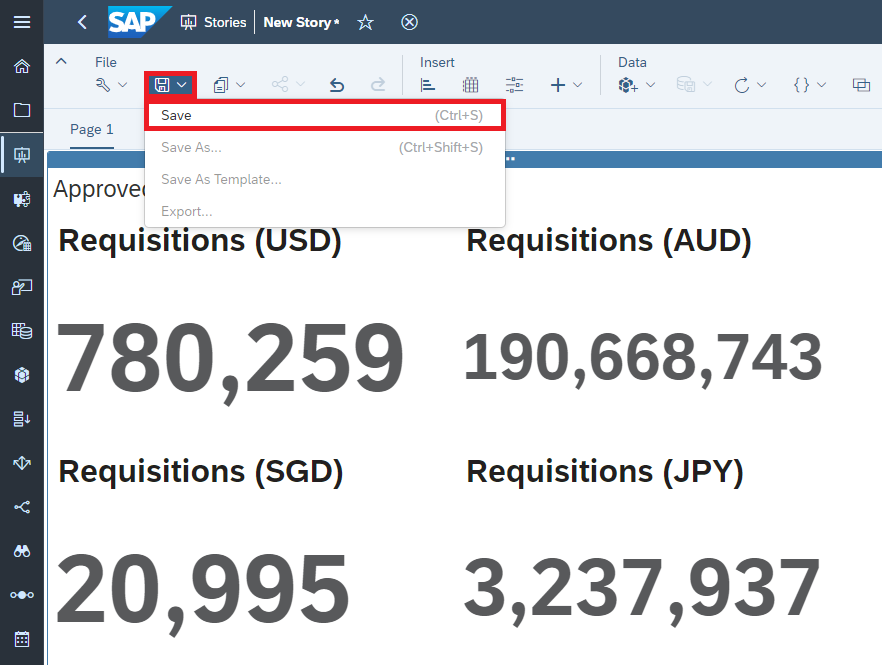

Click on Save

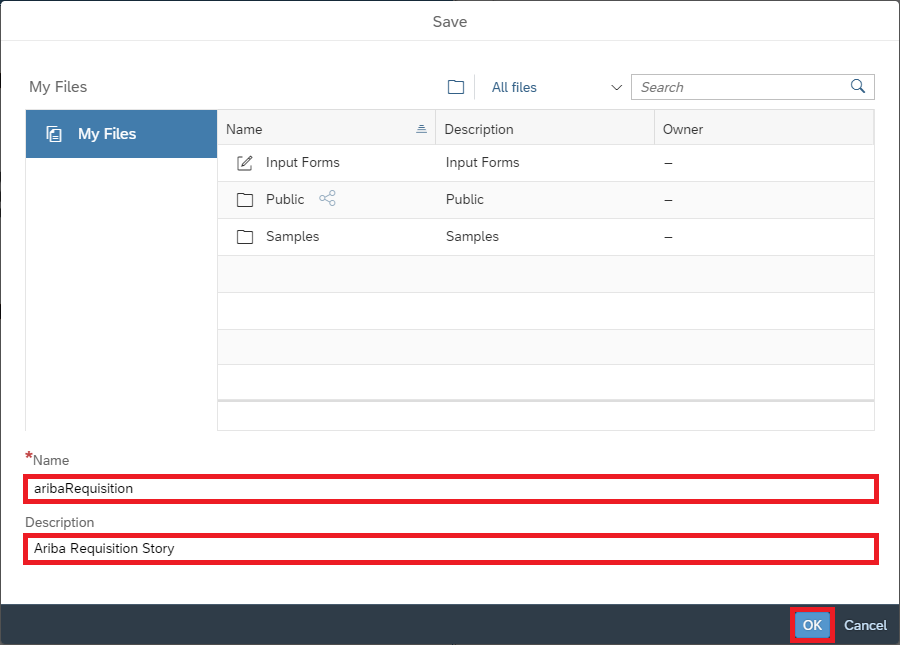

Enter a Name and Description then click on OK

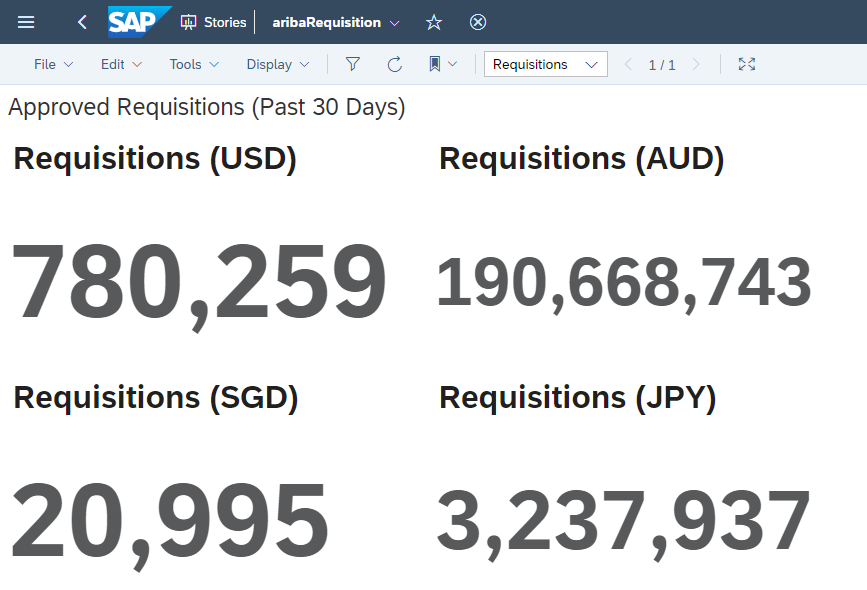

Our Story is now finished and ready to be viewed

Sharing our SAP Analytics Cloud Story

Now we’ve created our Story, but we don’t want it to just sit inside our Files on SAP Analytics Cloud – we want people to use it. Let’s share our story with our colleagues

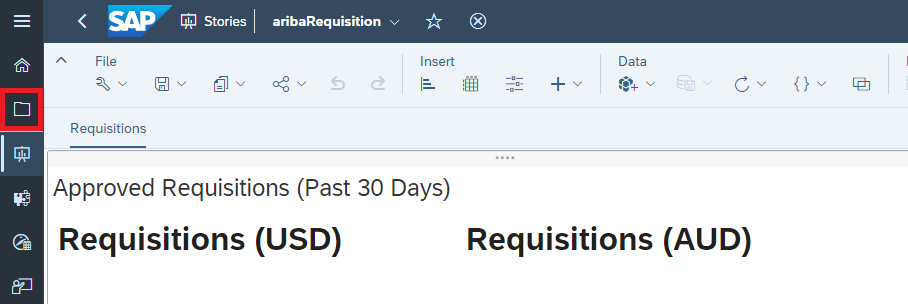

Click on Files

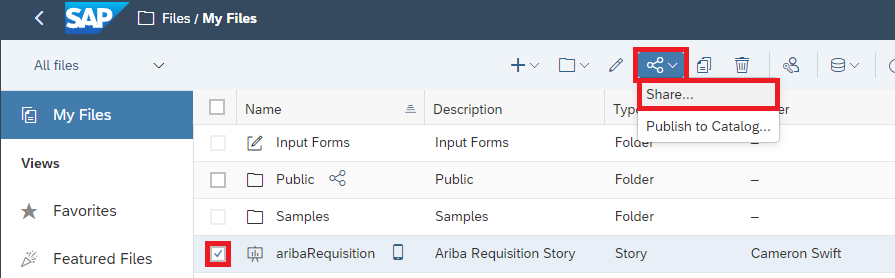

Click on the checkbox next to our Story, then click on Share under the Share menu

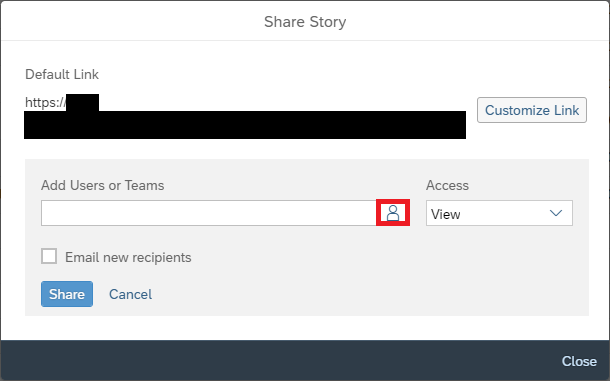

Click on Add Users or Teams

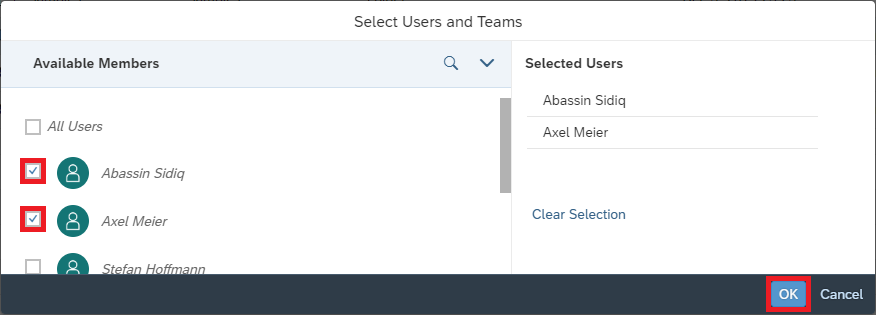

Select users you’d like to share the Story with then click OK

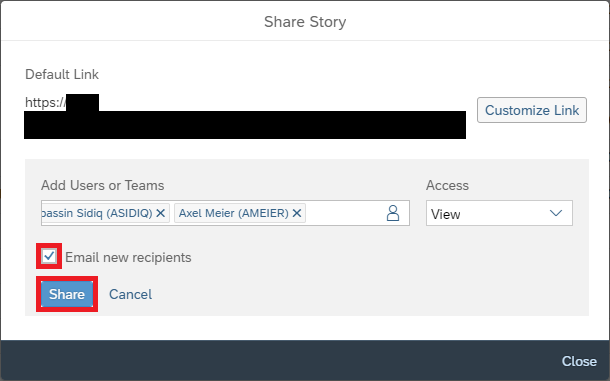

Click the checkbox to notify the users by email, then click Share

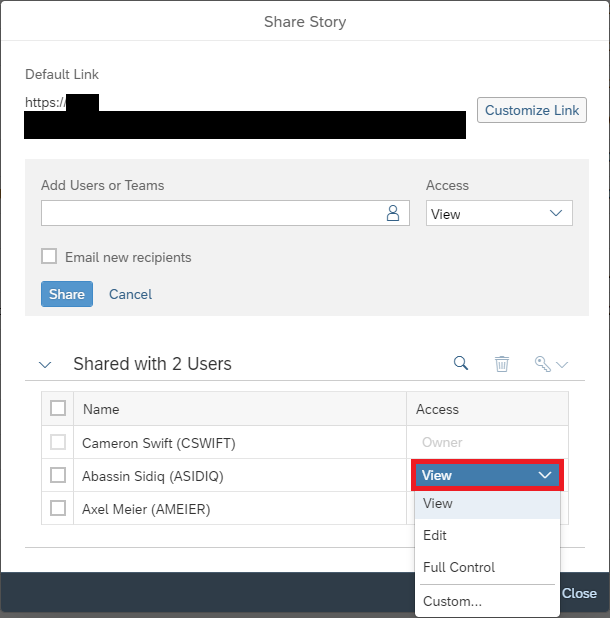

If we’d like to change the Access Type, we can do that here

Now we’ve shared our Story with users, and decided what kind of access we’d like them to have. This isn’t the only type of sharing available in SAP Analytics Cloud – for example you can learn about publishing to the Analytics Catalog here, and read about your other options in the Help Documentation

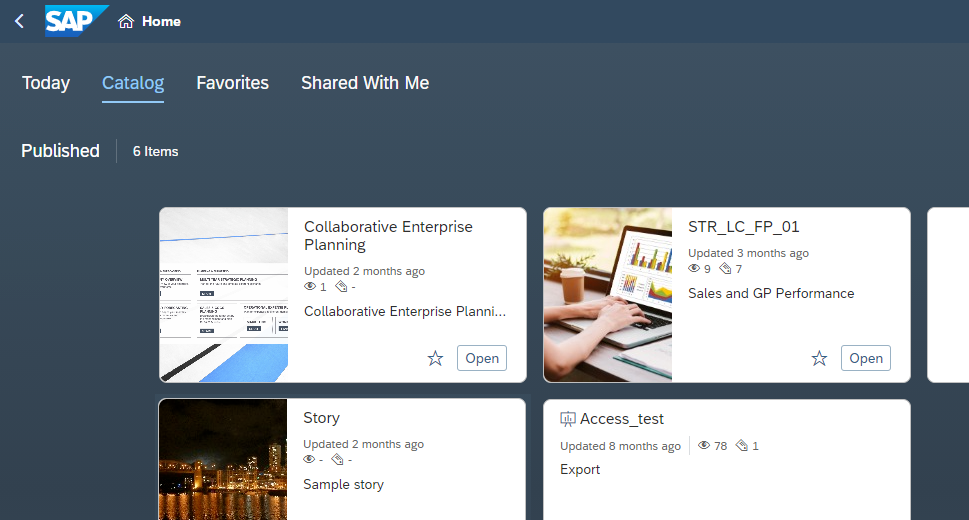

The Analytics Catalog is a single access point for SAP Analytics Cloud content vetted by your own Content Creators

Scheduling the Data Intelligence Pipeline

Now that our setup work is done and the users can view our SAP Analytics Cloud Story, we want to make sure the underlying data in our SAP HANA Document Store Collection is kept up to date on a regular basis

Since our SAP Data Intelligence Pipeline is responsible for truncating the data and supplying a new batch of data, we want to schedule it to run automatically. We can do this from Data Intelligence Cloud itself

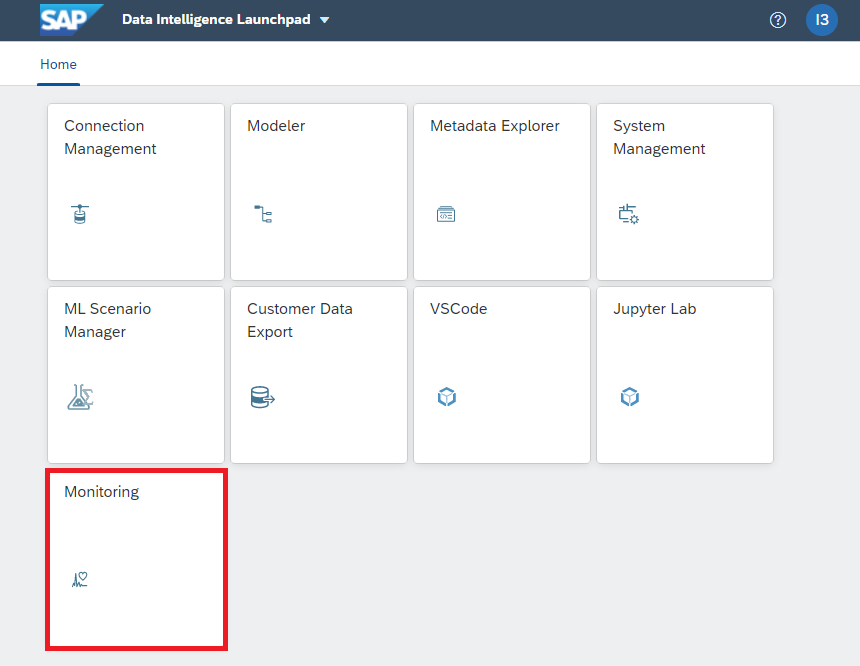

Click on Monitoring

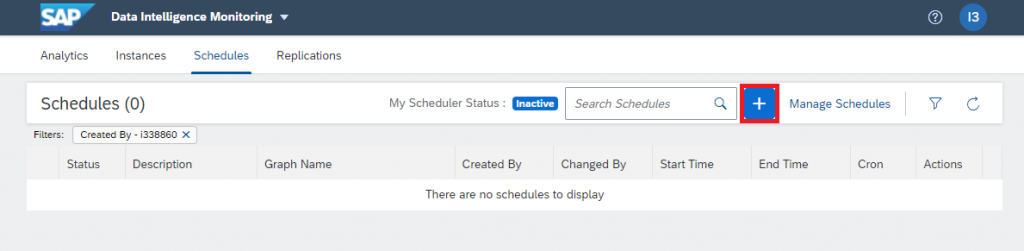

Click on Create Schedule

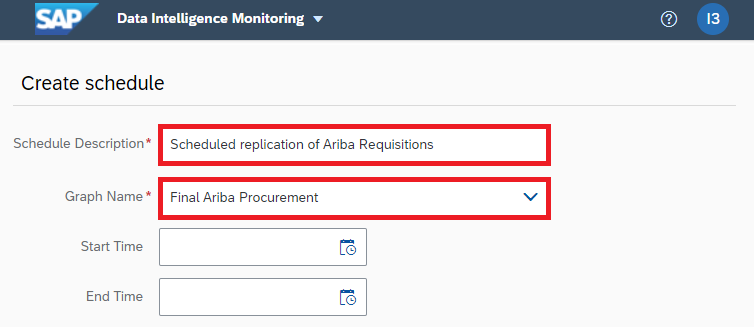

Write a description for our Schedule then choose our Pipeline under Graph Name

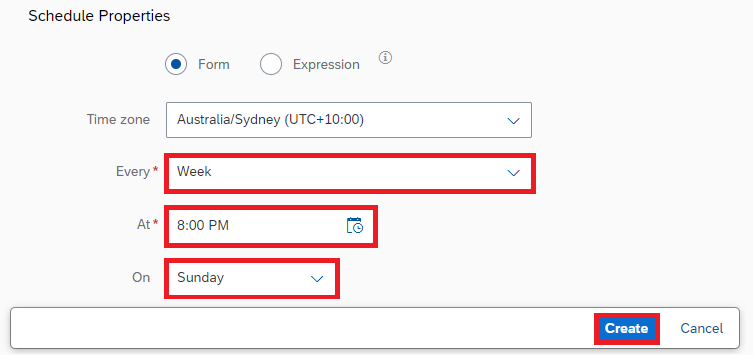

Choose how often our Pipeline will be run
Our Schedule has been created

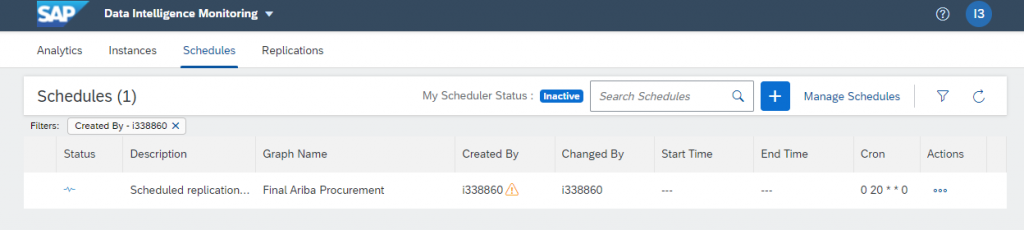

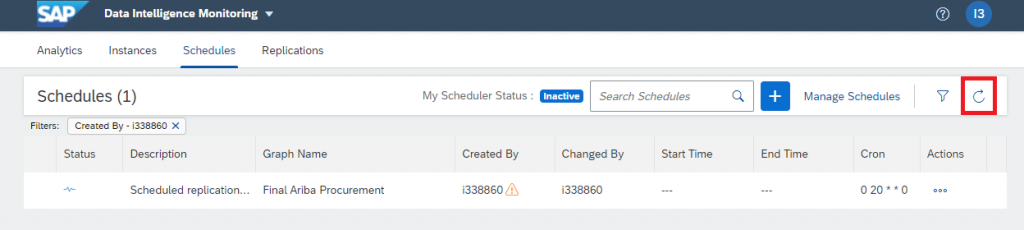

When we create our first Schedule, we’ll see My Scheduler Status: Inactive. We don’t need to worry – our Scheduler’s Status is actually Active. To see it, we can click on Refresh

Click Refresh

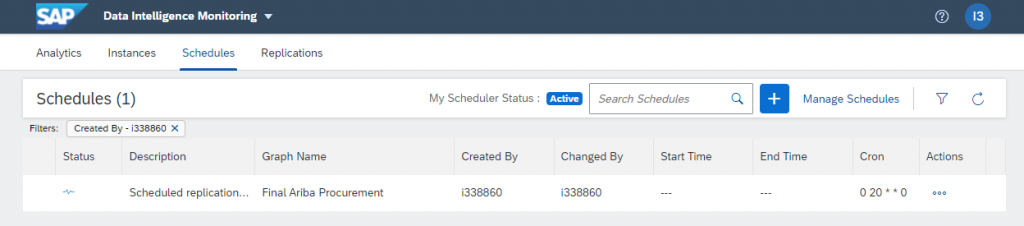

Our Scheduler Status is Active

An Important Note on Scheduling Ariba APIs

You may remember back in our first Blog Post that our Pipeline waits twenty seconds between each call of the Ariba APIs. This is because each of Ariba’s APIs has rate limiting. These rate limits are cumulative

What that means for us is that for each Realm and API (for example MyCorp-Test Realm and Operational Reporting for Procurement – Synchronous API) we have a shared rate limit, no matter how it’s called

The Pipeline we provided in Part One of this blog series is optimized for performance – i.e. it makes calls as fast as Ariba’s rate limiting will allow

If there’s more than one instance of this Pipeline running at once, both will receive a rate limit error and no data will be uploaded to our Document Store Collections

Please keep this in mind when you plan for the scheduling of these pipelines, and refer to the Ariba API Documentation for up-to-date information on Ariba Rate Limits as well as how many Records are returned each time the API is called

Wrap-Up

Throughout this blog series we’ve shown how we can set up a pipeline that will get data from Ariba and persist it in HANA Cloud Document Store, as well as how we can schedule it to run periodically

We’ve also shown how we can create a Calculation View on top of these JSON Documents, and finally how we can create a Story in SAP Analytics Cloud that will let us visualise our Ariba Data

The data and models in these blog posts have been rather simple by design, in a productive scenario we will likely want much more complex combinations and views.
