There are several ways to generate Microsoft Word docx documents using ABAP.
All of them have a number of disadvantages:
- some require a lot of manual actions and saving structures in the ABAP dictionary
- some require the Microsoft Office package installed on the user’s computer for their work
The advantage of my development:
- requires a minimum of manual actions
- works on the server side (does not require the presence of Microsoft Office)
If you know easier way to generate Microsoft Word docx documents – please, notify me.
Also Read: What is SAP ABAP 7.4 Certification?
Metrics for measuring the simplicity (lower is better):
- mouse click: single click / double click / select = 2 points
- keyboard type: one word / tab / enter = 1 point
- switch application / alt + tab = 3 points
- cost of change (add 2 fields + remove 2 fields + rename 2 fields)
Video (watch in 1080p):
Instruction and video complement each other.

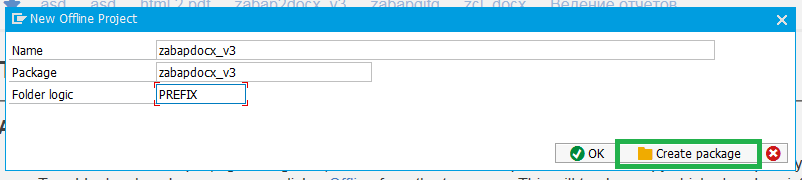

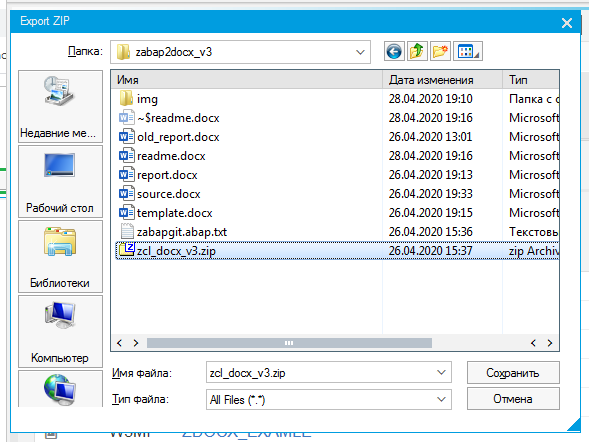

Installation Install package via ABAPGIT https://docs.abapgit.org/guide-install.html
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx1.png?resize=265%2C75&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx2.png?resize=730%2C164&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx3.png?resize=114%2C49&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx4.png?resize=589%2C442&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx5.png?resize=126%2C51&ssl=1)

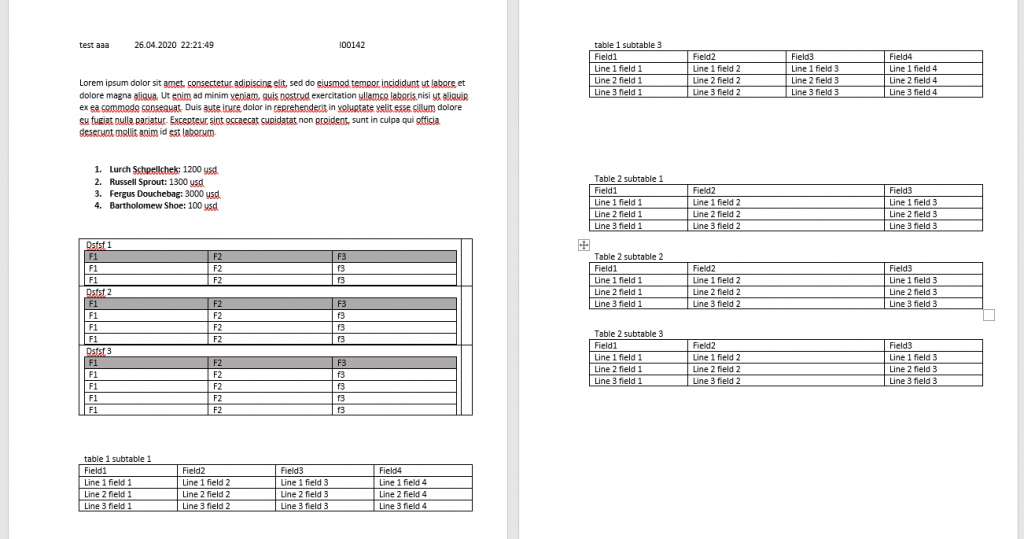

For example, the following document should be created:
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx6-1024x539.png?resize=730%2C384&ssl=1)
At first toggle developer toolbar in Microsoft Word.

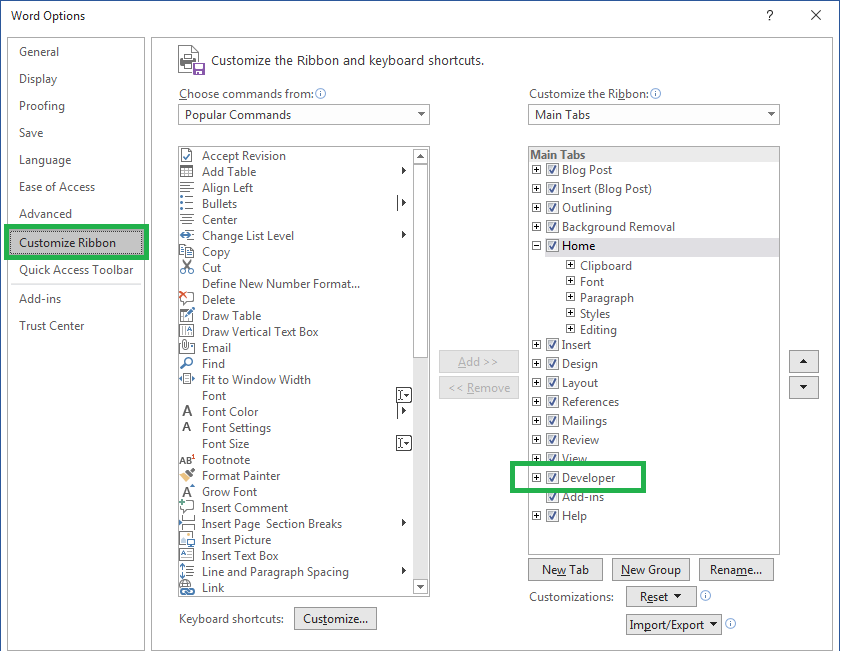

File -> Options -> Customize ribbon.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx7.png?resize=730%2C558&ssl=1)

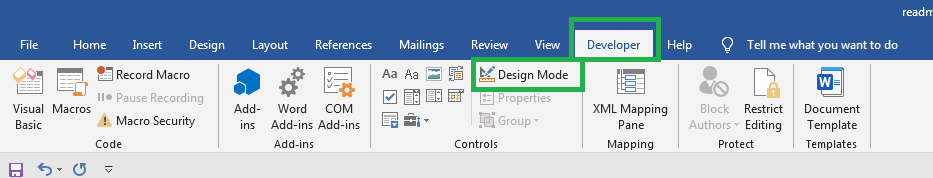

Go to developer tab, turn on “design mode”.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx8.png?resize=730%2C139&ssl=1)
Select text that will be replaced.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx9.png?resize=352%2C85&ssl=1)

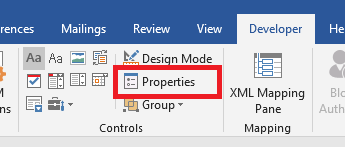

Make tag.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx10.png?resize=345%2C147&ssl=1)

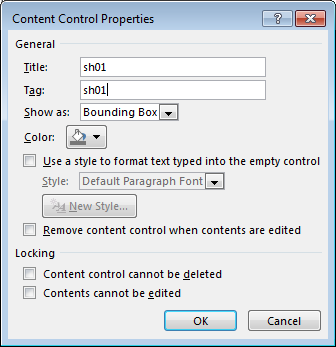

Enter tag name.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx11.png?resize=336%2C347&ssl=1)
Repeat for all variable.

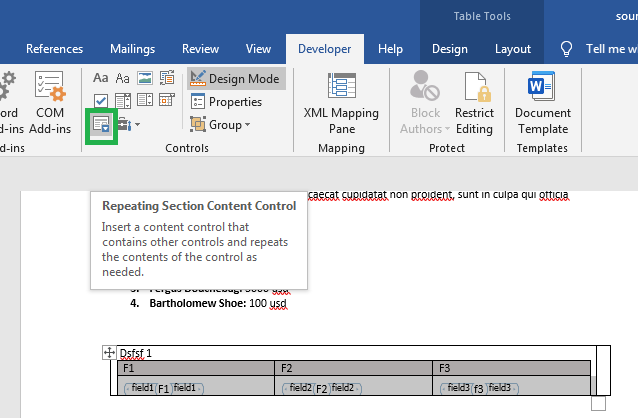

For repeated rows or text fragment – select row or text fragment, make repeated control.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx12.png?resize=638%2C418&ssl=1)

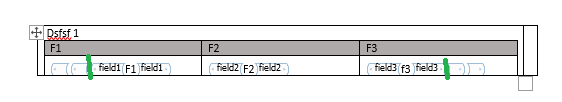

To enter properties of repeated control place cursor in the begin or end control.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx13.png?resize=562%2C102&ssl=1)
Tag all variables and repeated part.

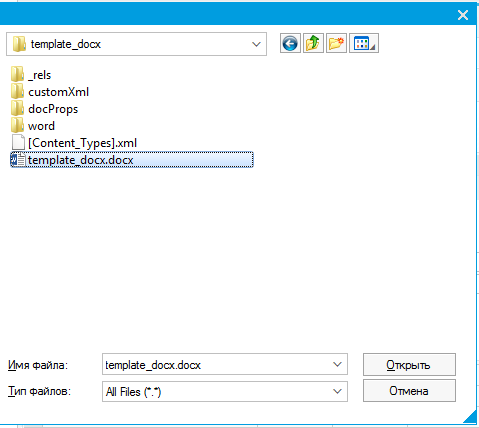

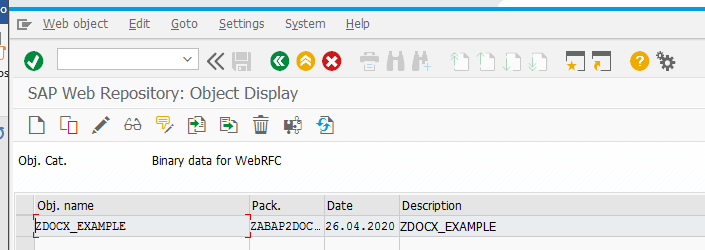

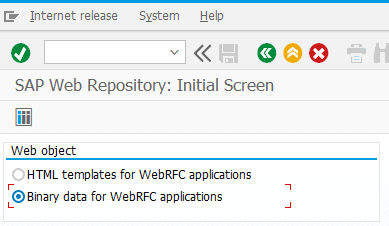

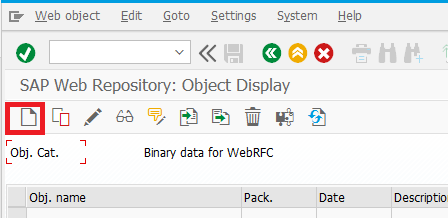

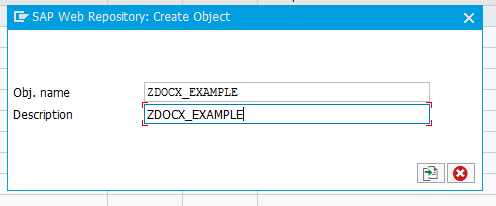

Save document. Go to transaction smw0 Select Binary data, enter.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx14.png?resize=389%2C226&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx15.png?resize=448%2C218&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx16.png?resize=496%2C206&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx17.png?resize=479%2C428&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx18.png?resize=705%2C250&ssl=1)

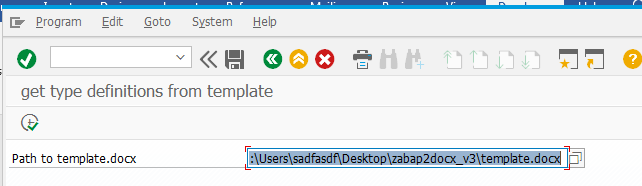

Go to se38 Program ZDOCX_GET_TYPES.
Navigate to your template.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx19.png?resize=642%2C186&ssl=1)
Run.
Program generate data types, based on your document structure.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/docx20-1.png?w=730&ssl=1)
Copy to your program.
Define variable.
Data
: gs_templ_data TYPE t_data
.
Fill structure with your data.
Then get document.
zcl_docx3=>get_document(
iv_w3objid = 'ZDOCX_EXAMLE' " name of our template, obligatory
* iv_on_desktop = 'X' " by default save document on desktop
* iv_folder = 'report' " in folder by default 'report'
* iv_path = '' " IF iv_path IS INITIAL save on desctop or sap_tmp folder
* iv_file_name = 'report.docx' " file name by default
* iv_no_execute = '' " if filled -- just get document no run office
* iv_protect = '' " if filled protect document from editing, but not protect from sequence
" ctrl+a, ctrl+c, ctrl+n, ctrl+v, edit
iv_data = gs_templ_data " root of our data, obligatory
* iv_no_save = '' " just get binary data not save on disk
).
Whole program “ZDOCX_EXAMPLE”:
*&---------------------------------------------------------------------*
*& Report ZDOCX_EXAMPLE
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zdocx_example.
*describe types
TYPES
: begin of t_TABLE3
, PERSON type string
, SALARY type string
, end of t_TABLE3
, tt_TABLE3 type table of t_TABLE3 with empty key
, begin of t_T2
, F1 type string
, F2 type string
, F3 type string
, end of t_T2
, tt_T2 type table of t_T2 with empty key
, begin of t_T1
, H1 type string
, T2 type tt_T2
, end of t_T1
, tt_T1 type table of t_T1 with empty key
, begin of t_LINE1
, FIELD1 type string
, FIELD2 type string
, FIELD3 type string
, FIELD4 type string
, end of t_LINE1
, tt_LINE1 type table of t_LINE1 with empty key
, begin of t_TAB1
, TITLE1 type string
, LINE1 type tt_LINE1
, end of t_TAB1
, tt_TAB1 type table of t_TAB1 with empty key
, begin of t_LINE2
, FIELD1 type string
, FIELD2 type string
, FIELD3 type string
, end of t_LINE2
, tt_LINE2 type table of t_LINE2 with empty key
, begin of t_TAB2
, TITLE2 type string
, LINE2 type tt_LINE2
, end of t_TAB2
, tt_TAB2 type table of t_TAB2 with empty key
, begin of t_data
, SH01 type string
, DATE type string
, TIME type string
, USER type string
, TABLE3 type tt_TABLE3
, T1 type tt_T1
, TAB1 type tt_TAB1
, TAB2 type tt_TAB2
, end of t_data
, tt_data type table of t_data with empty key
.
*some variable
DATA
: gs_templ_data TYPE t_data
, lv_index TYPE i
, lv_index2 TYPE i
, lv_index3 TYPE i
.
*fill data
gs_templ_data-DATE = |{ sy-datum date = environment }|.
gs_templ_data-TIME = |{ sy-uzeit TIME = ENVIRONMENT }|.
gs_templ_data-USER = sy-uname.
*1. Lurch Schpellchek: 1200 usd
*2. Russell Sprout: 1300 usd
*3. Fergus Douchebag: 3000 usd
*4. Bartholomew Shoe: 100 usd
APPEND INITIAL LINE TO gs_templ_data-table3 ASSIGNING FIELD-SYMBOL(<ls_3>).
<ls_3>-person = 'Lurch Schpellchek'.
<ls_3>-salary = '1200'.
APPEND INITIAL LINE TO gs_templ_data-table3 ASSIGNING <ls_3>.
<ls_3>-person = 'Russell Sprout'.
<ls_3>-salary = '1300'.
APPEND INITIAL LINE TO gs_templ_data-table3 ASSIGNING <ls_3>.
<ls_3>-person = 'Fergus Douchebag'.
<ls_3>-salary = '3000'.
APPEND INITIAL LINE TO gs_templ_data-table3 ASSIGNING <ls_3>.
<ls_3>-person = 'Bartholomew Shoe'.
<ls_3>-salary = '100'.
gs_templ_data-sh01 = 'test aaa'.
DO 3 TIMES.
lv_index = sy-index.
APPEND INITIAL LINE TO gs_templ_data-tab1 ASSIGNING FIELD-SYMBOL(<ls_tab1>).
<ls_tab1>-title1 = |table 1 subtable { lv_index }|.
DO 3 TIMES.
lv_index2 = sy-index.
APPEND INITIAL LINE TO <ls_tab1>-line1 ASSIGNING FIELD-SYMBOL(<ls_line1>).
DO 4 TIMES.
lv_index3 = sy-index.
ASSIGN COMPONENT lv_index3 OF STRUCTURE <ls_line1> TO FIELD-SYMBOL(<fs_any>).
<fs_any> = |Line { lv_index2 } field { lv_index3 }|.
ENDDO.
ENDDO.
ENDDO.
DO 3 TIMES.
lv_index = sy-index.
APPEND INITIAL LINE TO gs_templ_data-tab2 ASSIGNING FIELD-SYMBOL(<ls_tab2>).
<ls_tab2>-title2 = |Table 2 subtable { lv_index }|.
DO 3 TIMES.
lv_index2 = sy-index.
APPEND INITIAL LINE TO <ls_tab2>-line2 ASSIGNING FIELD-SYMBOL(<ls_line2>).
DO 3 TIMES.
lv_index3 = sy-index.
ASSIGN COMPONENT lv_index3 OF STRUCTURE <ls_line2> TO <fs_any>.
<fs_any> = |Line { lv_index2 } field { lv_index3 }|.
ENDDO.
ENDDO.
ENDDO.
gs_templ_data = VALUE #( BASE gs_templ_data
t1 = VALUE #(
( h1 = |1| t2 = VALUE #(
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
)
)
( h1 = |2| t2 = VALUE #(
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
)
)
( h1 = |3| t2 = VALUE #(
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
( f1 = 'F1' f2 = 'F2' f3 = 'f3' )
)
)
)
).
*get document
DATA
: lv_document TYPE xstring " variable to hold generated document, can be omitted
.
*first case: send document as attachment
lv_document = zcl_docx3=>get_document(
iv_w3objid = 'ZDOCX_EXAMLE'
iv_data = gs_templ_data
iv_no_save = 'X' ).
PERFORM send_document_as_attachment USING lv_document.
*second case: save on desctop and open document
zcl_docx3=>get_document(
iv_w3objid = 'ZDOCX_EXAMLE' " name of our template, obligatory
* iv_on_desktop = 'X' " by default save document on desktop
* iv_folder = 'report' " in folder by default 'report'
* iv_path = '' " IF iv_path IS INITIAL save on desctop or sap_tmp folder
* iv_file_name = 'report.docx' " file name by default
* iv_no_execute = '' " if filled -- just get document no run office
* iv_protect = '' " if filled protect document from editing, but not protect from sequence
" ctrl+a, ctrl+c, ctrl+n, ctrl+v, edit
iv_data = gs_templ_data " root of our data, obligatory
* iv_no_save = '' " just get binary data not save on disk
).
FORM send_document_as_attachment USING iv_doc TYPE xstring.
* implement sending here
MESSAGE 'Doc sended' TYPE 'S'.
ENDFORM.
