Introduction
Connecting SAP HANA on-premises to SAP Cloud Platform Integration (CPI) is a crucial step in establishing a seamless data flow between on-premise and cloud-based systems. This integration allows organizations to leverage the power of cloud-based integration capabilities while maintaining access to their existing on-premise HANA databases.
This document will provide a comprehensive guide on how to achieve this connection, covering essential steps, configurations, and potential challenges. By following the outlined procedures, you can effectively establish a bridge between your on-premise HANA environment and CPI, enabling efficient data exchange and process automation.

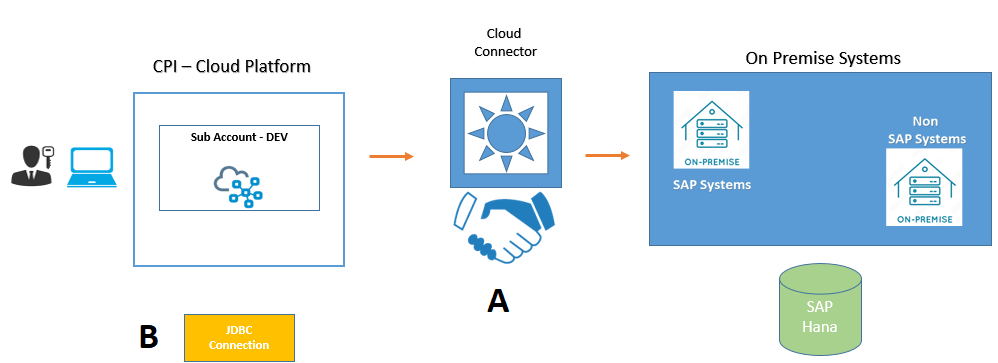

In order to Fetch Data from the SAP Hana Database from CPI iFlow – you need to complete the following configurations. (Step A and B as mentioned in the following diagram)
A. Cloud Connector
Cloud Connector is a software application that acts as a bridge between cloud-based services and on-premises systems. It establishes a secure connection, allowing these systems to communicate and exchange data seamlessly.
Login into the Cloud Connector Application and establish the connection for Cloud to On-Premises system
- Map the Hana Server into the Cloud Connector using TCP Protocol
- Provide Internal IP and Port , Provide Virtual IP and Port
- Note down the Virtual IP and Port ( this will be used in the JDBC Connection inside the CPI subaccount)
To Add new System – you need to provide details as below:
- Backend Type : SAP – Hana
- Protocol : TCP
- Internal IP & Port
- Virtual IP & Port

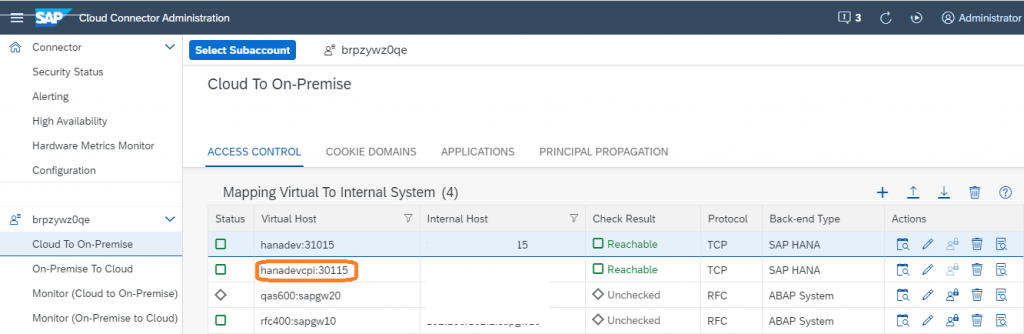

Once saved, you can verify the connectivity test by checking the Check Availability icon – that will shows Reachable or Not-reachable. (Please note down : The Virtual IP and Port )
B. Cloud Platform (CPI Account)
SAP Cloud Platform Integration (CPI) is a cloud-based integration platform as a service. CPI provides a flexible and scalable solution for integrating cloud and on-premise applications, facilitating seamless data exchange and process automation.

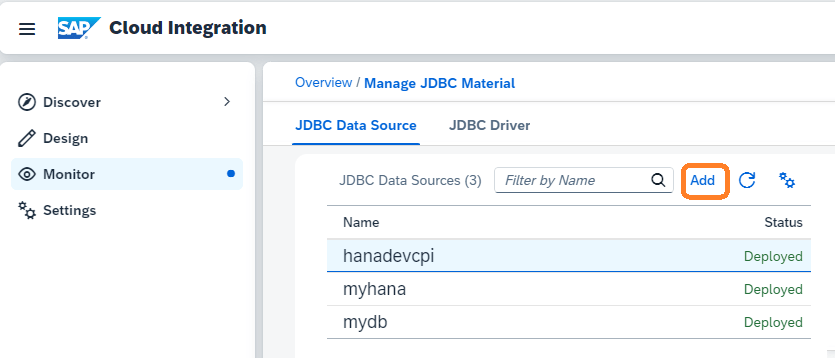

Login into the CPI Subaccount and Create the new JDBC Material / Connection.
- Create the JDBC connection
- Provide the JDBC URL : format jdbc:sap://virtualIP:virtualPort/?databaseName=myhanadb
- where virtual IP is the virtual IP you mentioned in cloud connector in step A, virtual port is the virtual port you mentioned in cloud connector in step A
While adding JDBC, you need to provide the following details
Name: name as per your wish
Description: as per your wish
Database type: SAP Hana Platform (on premise)
User ID and Password: your database userid and password
JDBC Url: jdbc:sap://virtual ip:virtualport/?databaseName=your database name

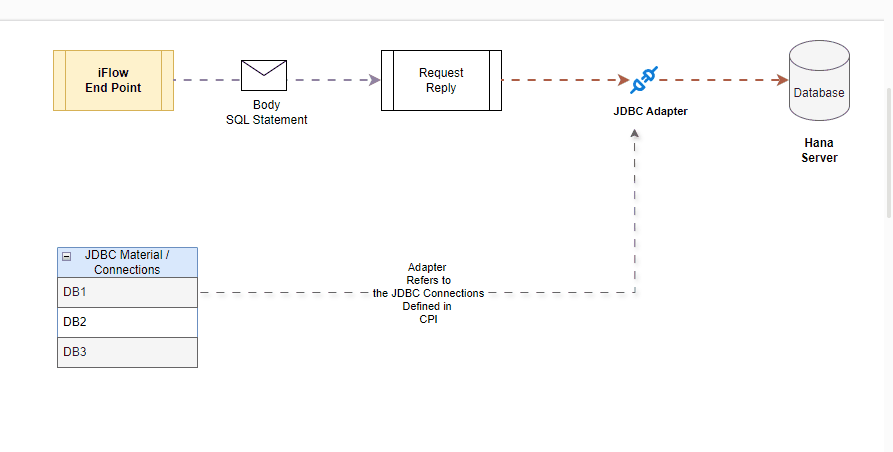

Finally, in the iflow, you use JDBC adapter and in the properties tab, you mention the JDBC connection name you created in the step B.
C. Iflow

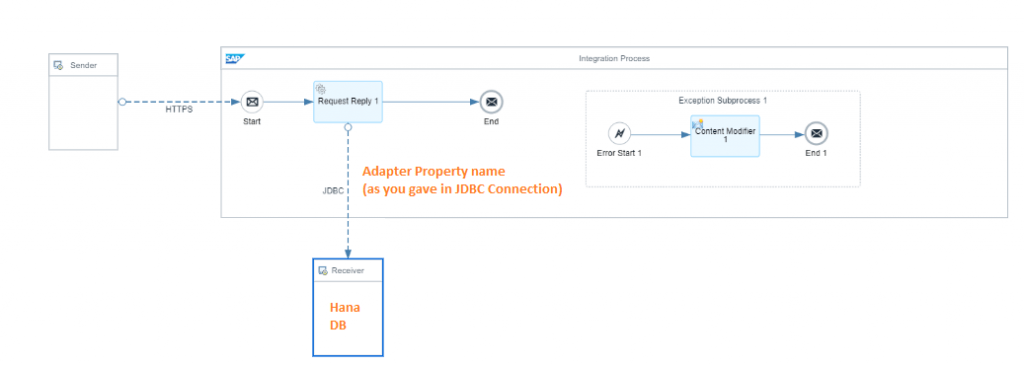

In the iFlow, the Hana Server is connected via the Request Reply pallet. The connecting adapter properties should mention the JDBC connection you created in the step B.
In the iflow, In the JDBC Adapter properties – you mention the JDBC connection name you defined in step B.
D. Execute the iflow in Postman

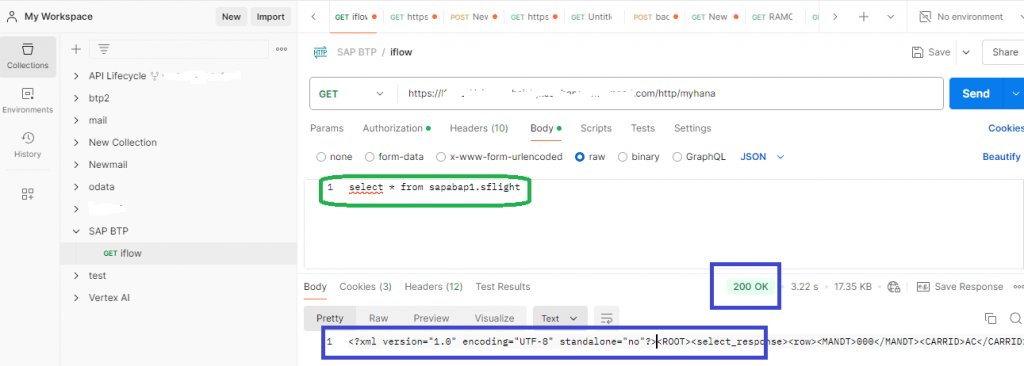

In the Postman, you pass the SQL statement in the body.
select * from sapabap1.sflight;The output you will receive in xml format.
This is how, we can establish the connectivity from CPI-iFlow to SAP Hana On premises and execute the SQL Queries to fetch data.
POSTMAN
The SQL output will be displayed in the xml format.
Conclusion
In conclusion, this document has outlined the steps and considerations involved in establishing a seamless connection between an on-premises HANA database and SAP Cloud Platform Integration (CPI). By leveraging the capabilities of CPI, organizations can effectively bridge the gap between their on-premises systems and cloud-based services. By following the outlined procedures and best practices, we can ensure a successful and reliable connection between their HANA database and CPI, unlocking the full potential of both platforms.
