Chart of Depreciation :- Asset accounting customization will be done for chart of depreciation and must be assigned to each company code that is defined in Asset Accounting. SAP provides country-specific charts of depreciation with predefined depreciation areas. These default charts of depreciation also serves as a reference charts for which your own charts of depreciation, after copying you may delete depreciation area you do not need, deletion must be done before creating of any assets.
Steps to Configure Chart of Depreciation | Define Depreciation Areas SAP
IMG menu path :– SPRO-Financial accounting-Asset Accounting –Organizational structures –Copy reference Chart of Depreciation /Depreciation area
Transaction Code :- EC08

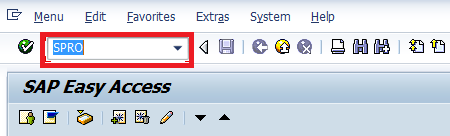

Step 1 :- Enter T Code SPRO in the SAP command field and press enter

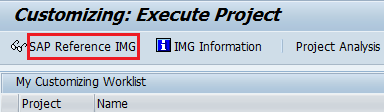

Step 2 :– Select SAP Reference IMG

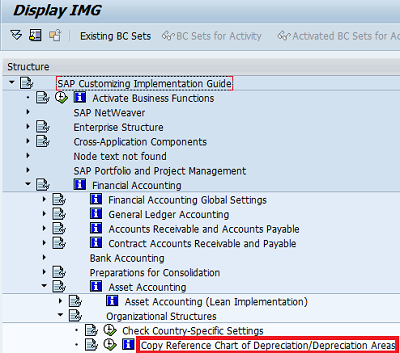

Step 3 :- Follow the IMG menu path and select Copy reference Chart of Depreciation /Depreciation area

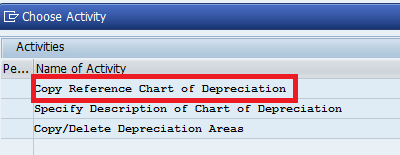

Step 4 :- Double click on copy reference Chart of Depreciation

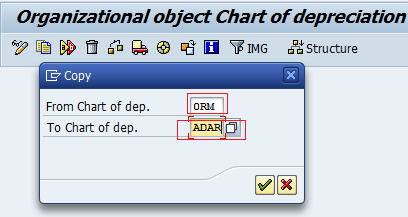

Step 5 :- From the menu select organizational object ( Copy org. object (F6) and update the following and enter.
1.From Chart of Depreciation :Select ORM ((Maximum valuation: Germany)
2. To chart of Depreciation : ADAR

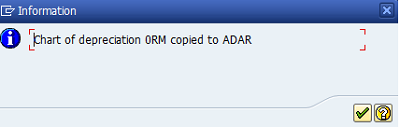

After copying you wil get a message chart of depreciation ORM copy to ADAR and press enter.

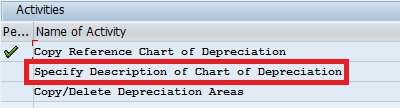

Step 6 :- Select back arrow and double click on specify depreciation of Chart of Depreciation
Select position button and give the Chart of Depreciation ADAR, press enter
Change the description to Chart of Depreciation for ADAR and click on save icon.

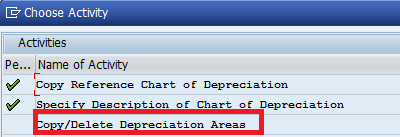

Step 7 :- Select back arrow and double click Copy /Delete Depreciation areas
Give the Chart of Depreciation ADAR and enter

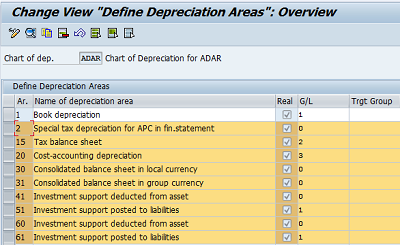

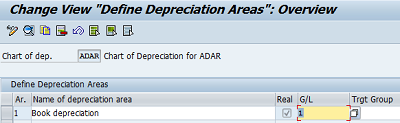

Here we delete the unwanted depreciation area which were copied from the reference chart of depreciation,Delete depreciation area other than 01 (Book Depreciation) . From the menu Edit > Delete (Shift + F2 )
Press enter continuously and save
Chat of depreciation is successfully configured in SAP FI Asset Accounting.
