Creating entity relationship through CDS Graphical Modeler for VSCODE

In this blog post, we’ll demonstrate how to create entity relationships for CDS models by using the CDS Graphical Modeler for Visual Studio Code.

CDS Entity Relationship Modeling using CDS modeler for VSCODE

CDS Graphical Modeler is now available on Visual Studio Code as well, and if you want to use the modeler in VSCODE platform you can download and install the modeler extension from https://marketplace.visualstudio.com/items?itemName=SAPSE.vscode-wing-cds-editor-vsc.

SAP Analytics Cloud Planning Certification Preparation Guide

Now we have a new way of creating entity relationships much more easily by just using simple drag and drop, which offers the developer better productivity in creating complex entity relationships very quickly even for complex CDS models.

Supposed we have below CDS model for espm:

namespace com.sap.cds.espm.db;

using
{
    cuid,
    managed,
    temporal
}
from '@sap/cds/common';

entity Customers : cuid, managed
{
    name : String;
    officialName : String;
    companyName : String;
    address1 : String;
    address2 : String;
    industryRanking1 : String;
    industryRanking2 : String;
    industryRanking3 : String;
    sector1 : String;
    sector2 : String;
    sector3 : String;
    revenue : Decimal;
    forecast1 : Integer;
    forecast2 : Integer;
    payment1 : String;
    payment2 : String;
    payment3 : String;
    vertical1 : String;
    vertical2 : String;
    certical3 : String;
}

entity Orders : cuid, managed
{
    name : String;
    name1 : String;
    name2 : String;
    paymentMethod1 : String;
    paymentMethod2 : String;
    deliveryAddress1 : String;
    deliveryAddress2 : String;
    deliveryAddress3 : String;
    total1 : Double;
    total2 : Double;
}

aspect OrderItems : cuid, managed
{
    name1 : String;
    name2 : String;
    name3 : String;
    listPrice1 : String;
    actualPrice1 : String;
    pic1 : String;
    pic2 : String;
    pic3 : String;
}

entity Products : cuid, managed
{
    name : String;
    officialName : String;
    longName1 : String;
    longName2 : String;
    title1 : String;
    title2 : String;
    image1 : String;
    image2 : String;
    manufacture : String;
    isOem : Boolean;
    validTo : Date;
    validTo2 : Date;
}

entity ProductDetails : temporal
{
    internalName1 : String;
    internalName2 : String;
    internalName3 : String;
    designDate : Date;
    designDate2 : Date;
    detail1 : String;
    detail2 : String;
    detail3 : String;
}

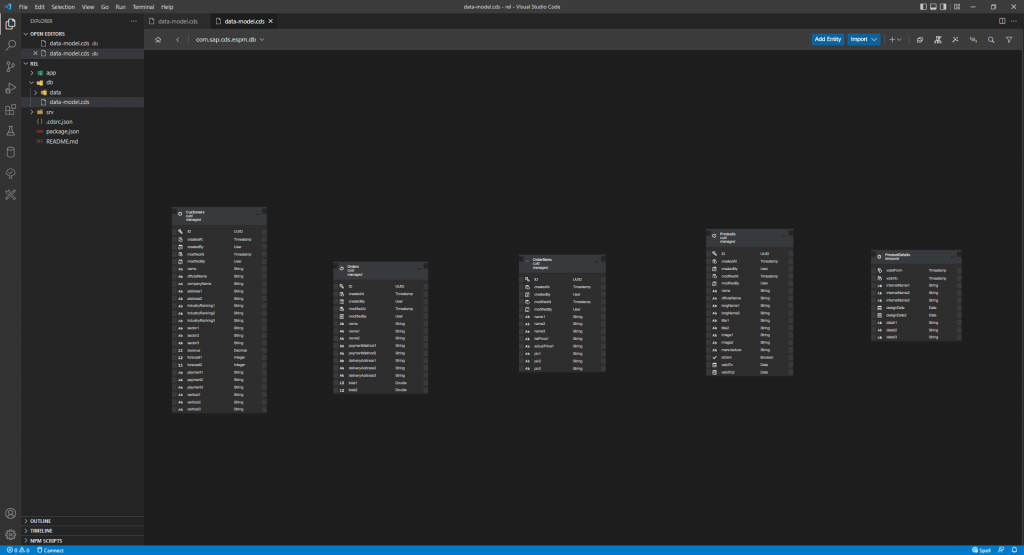

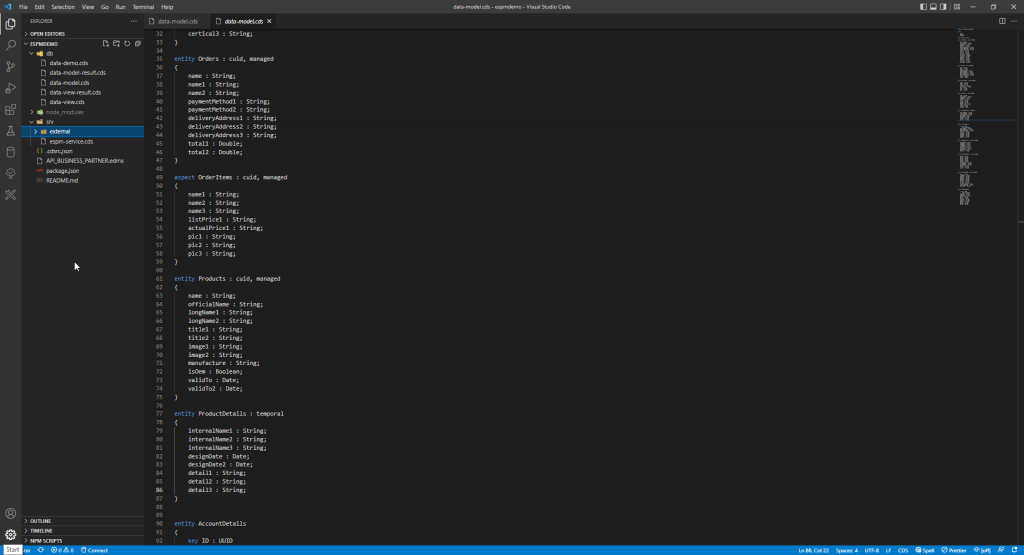

We now want to create the entity relationships among those entities using the CDS modeler. Open the CDS file using CDS Graphical Modeler for Visual Studio Code:

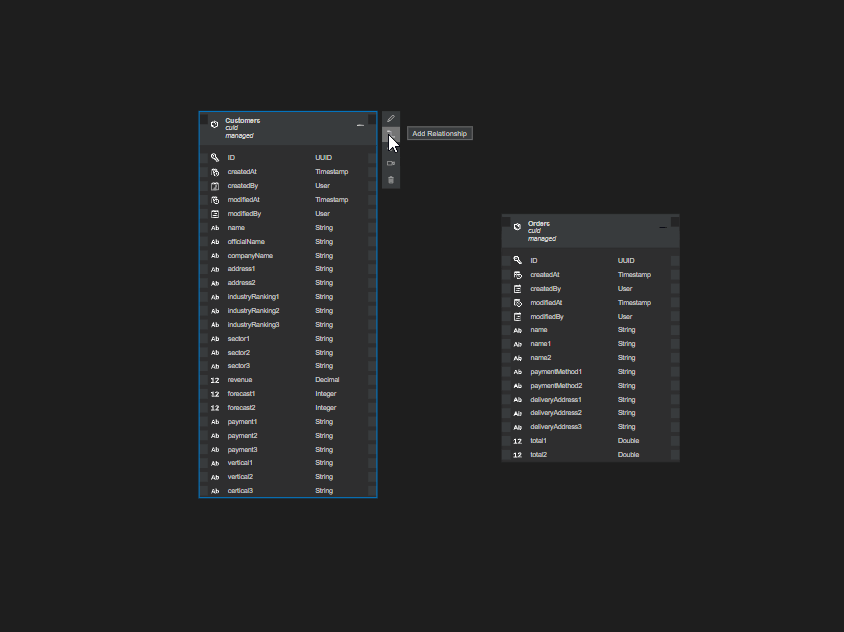

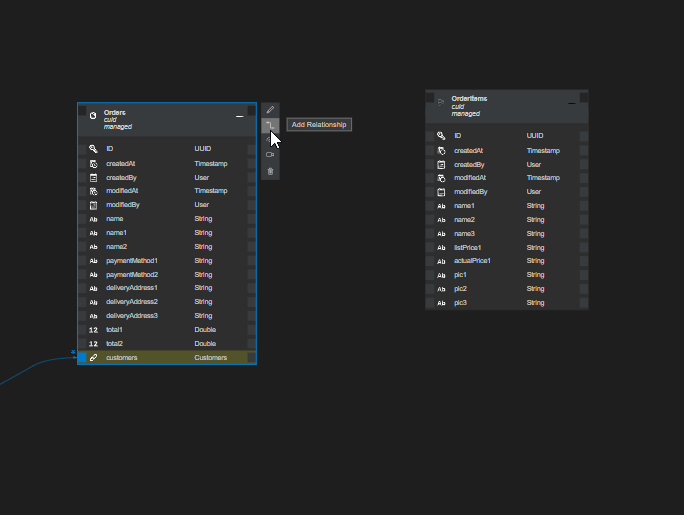

Now if we want to create a to-many association relationship from the Customers entity to the Orders entity, click the Customers entity and select “Add Relationship” context menu:

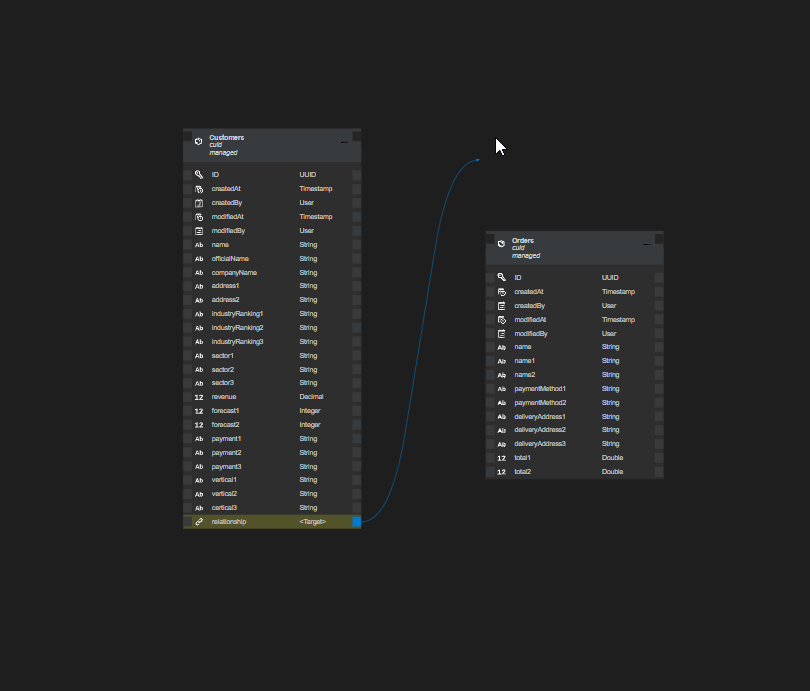

You will see a pointer line that moves along with your mouse pointer:

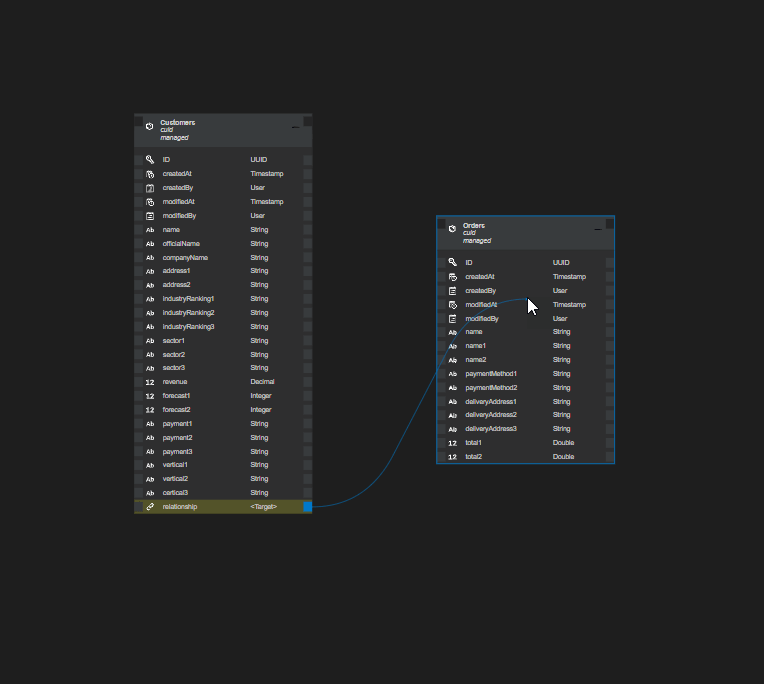

Move the line end point to the target Orders entity and release your mouse:

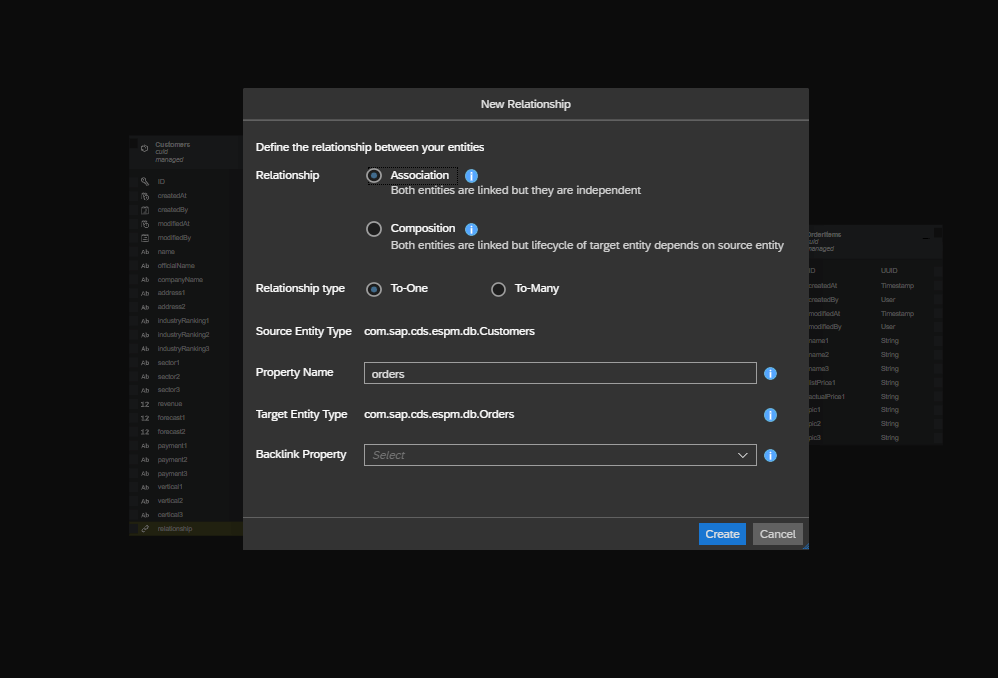

The relationship dialog shows up:

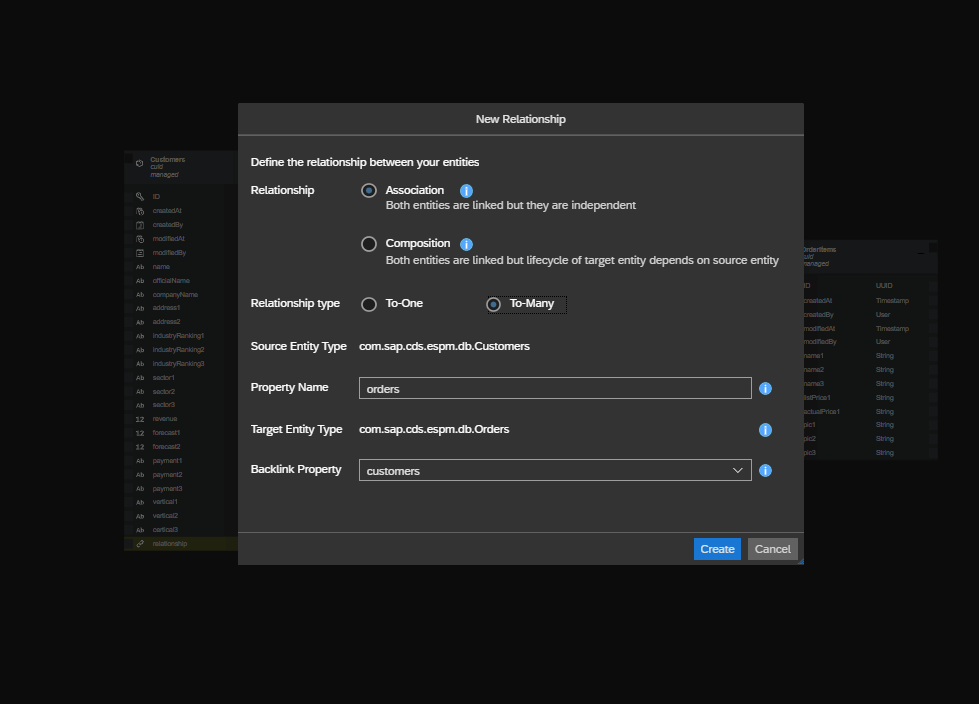

Change the “Relationship type” to “To-Many”, you will notice that a backlink property is automatically filled:

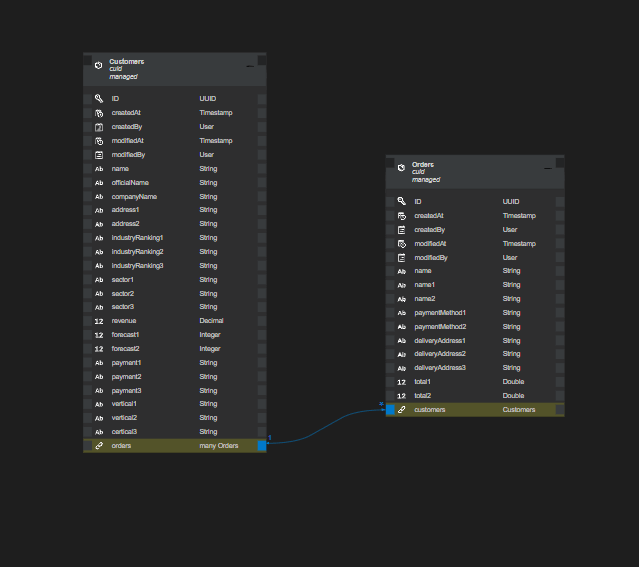

Click “Create” button to dismiss the dialog, you will see the relationship has been created between the Customers entity and the Orders entity:

Checking the CDS file content you will see the corresponding associations have been created as well:

entity Customers : cuid, managed
{
    name : String;
    officialName : String;
    companyName : String;
    address1 : String;
    address2 : String;
    industryRanking1 : String;
    industryRanking2 : String;
    industryRanking3 : String;
    sector1 : String;
    sector2 : String;
    sector3 : String;
    revenue : Decimal;
    forecast1 : Integer;
    forecast2 : Integer;
    payment1 : String;
    payment2 : String;
    payment3 : String;
    vertical1 : String;
    vertical2 : String;
    certical3 : String;
    orders : Association to many Orders on orders.customers = $self;
}

entity Orders : cuid, managed
{
    name : String;
    name1 : String;
    name2 : String;
    paymentMethod1 : String;
    paymentMethod2 : String;
    deliveryAddress1 : String;
    deliveryAddress2 : String;
    deliveryAddress3 : String;
    total1 : Double;
    total2 : Double;
    customers : Association to one Customers;
}

Now we want to create a to-many composition from the Orders to the OrderItems entity:

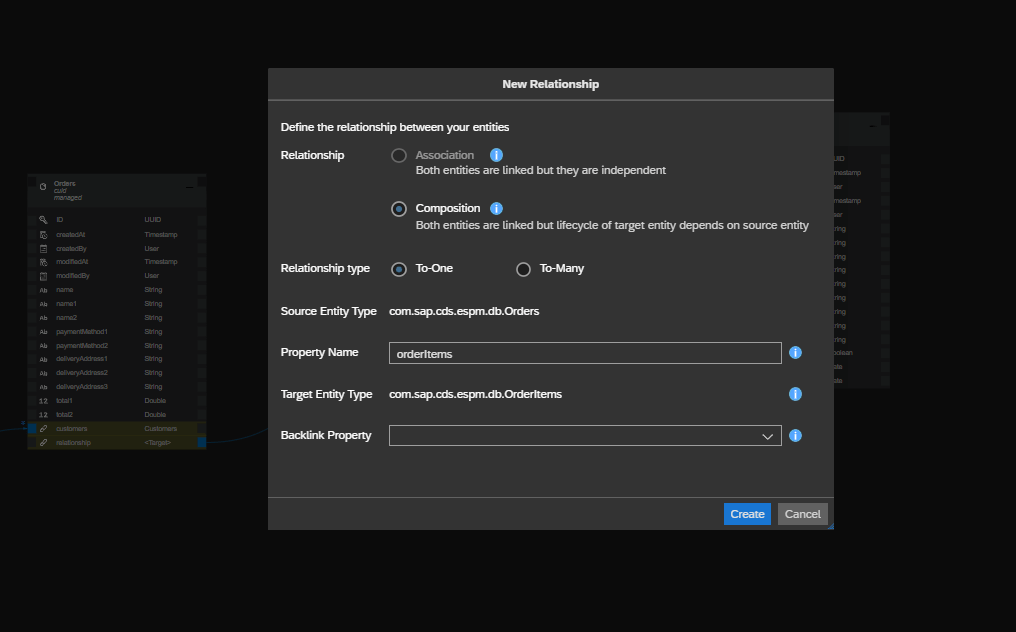

and the relationship dialog pops up:

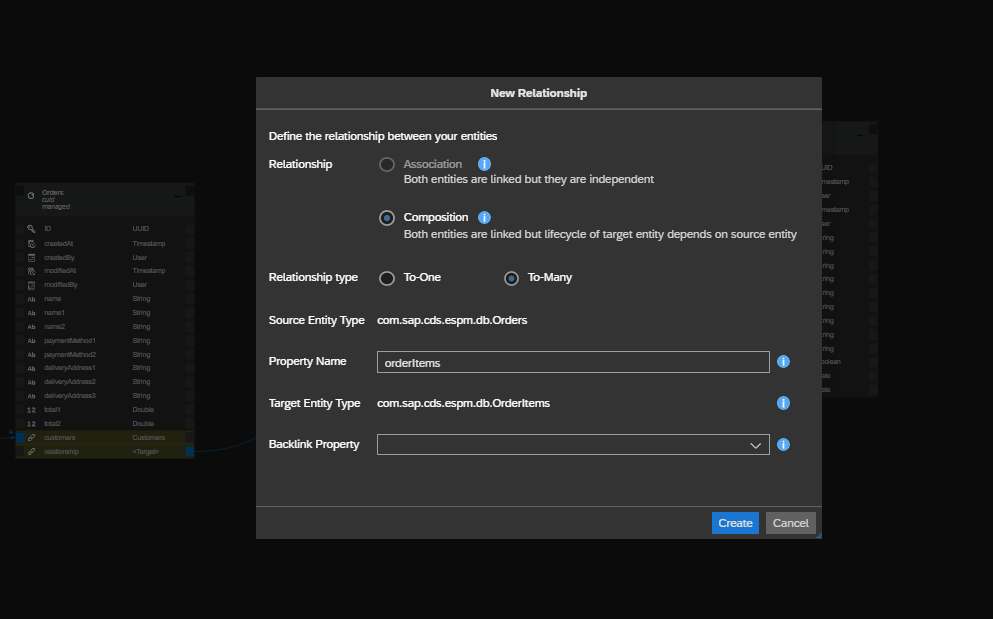

Since the OrderItems is an aspect, so the only relationship that is allowed here is Composition. change the relationship type to “To-Many”:

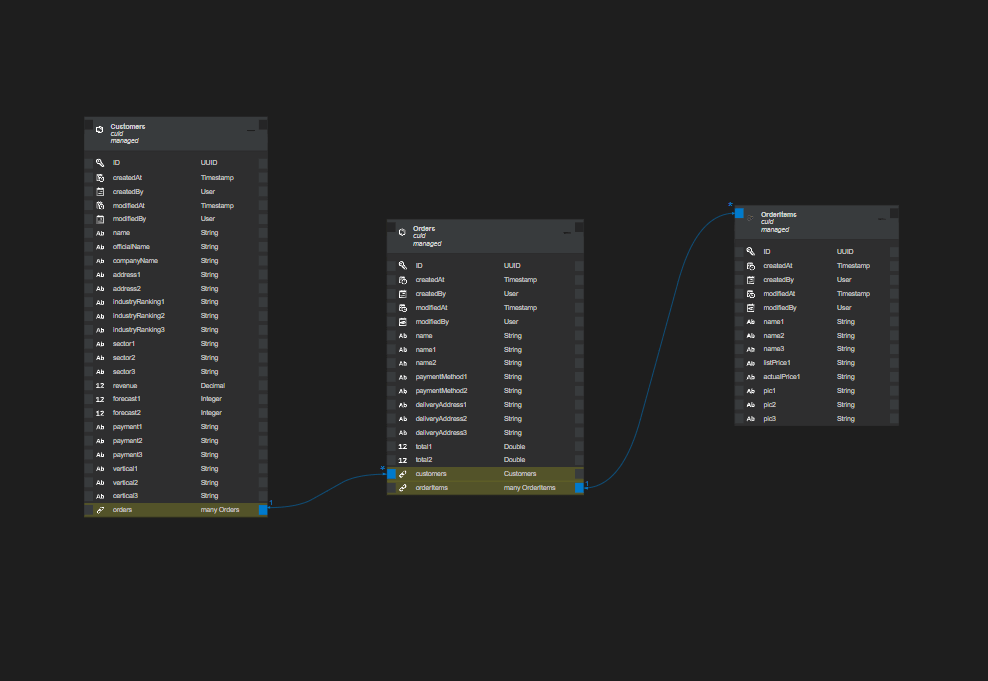

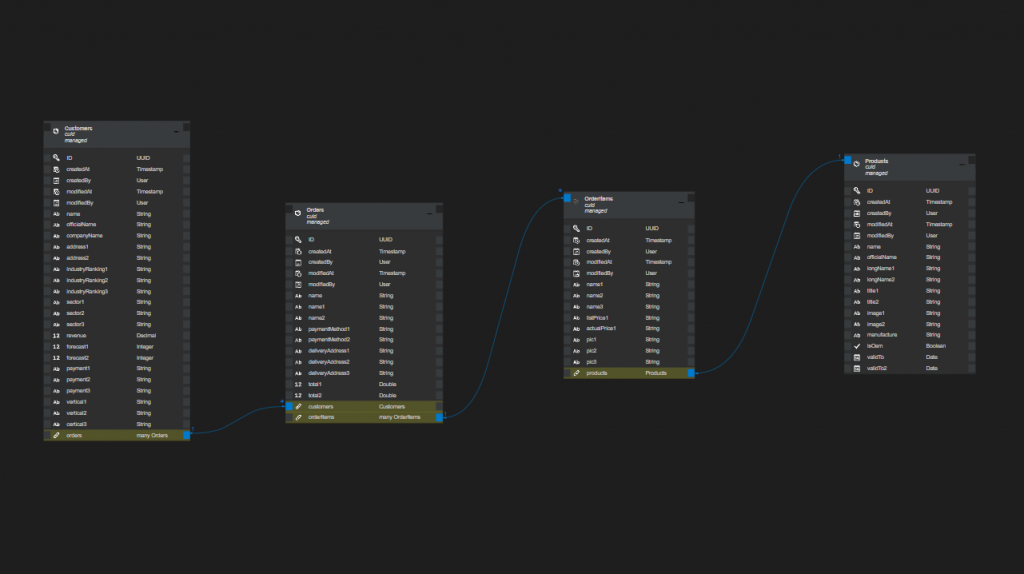

Click “Create” button to close the dialog, and you will see the relationship has been created between the Orders and OrderItems:

We can also verify that by checking the CDS file content:

entity Orders : cuid, managed
{
    name : String;
    name1 : String;
    name2 : String;
    paymentMethod1 : String;
    paymentMethod2 : String;
    deliveryAddress1 : String;
    deliveryAddress2 : String;
    deliveryAddress3 : String;
    total1 : Double;
    total2 : Double;
    customers : Association to one Customers;
    orderItems : Composition of many OrderItems;
}

aspect OrderItems : cuid, managed
{
    name1 : String;
    name2 : String;
    name3 : String;
    listPrice1 : String;
    actualPrice1 : String;
    pic1 : String;
    pic2 : String;
    pic3 : String;
}

Now let’s create a to-one managed association from the OrderItems to Products entity:

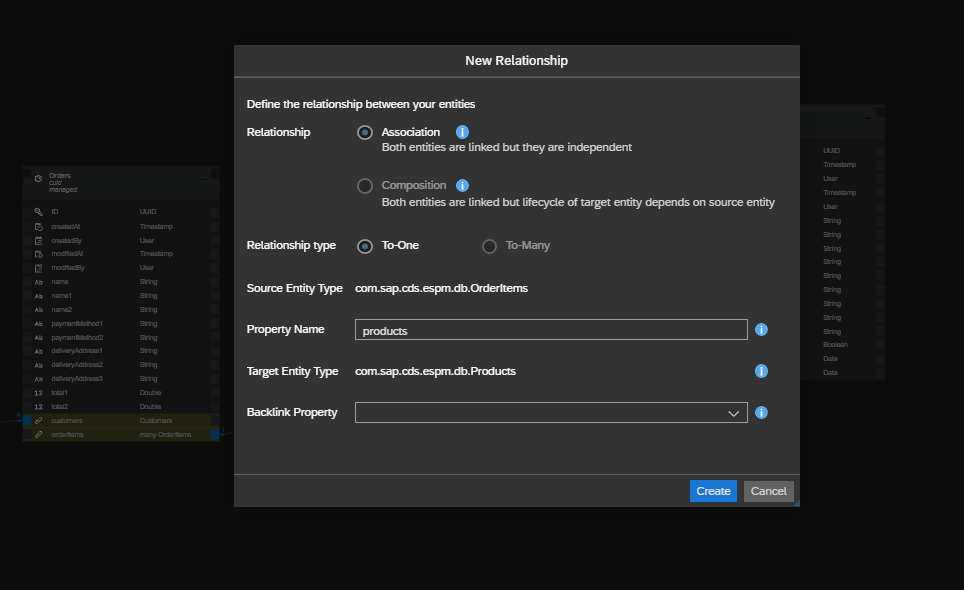

Keep everything default and click “Create” button to dismiss the dialog, and the relationship is setup:

If we want to keep some of the product detail information to a separate ProductDetails entity to keep the Products entity clean, we need to setup a bi-directional association relationship between the 2 entities. First try to create a to-one managed association from the ProductDetails entity to the Products entity:

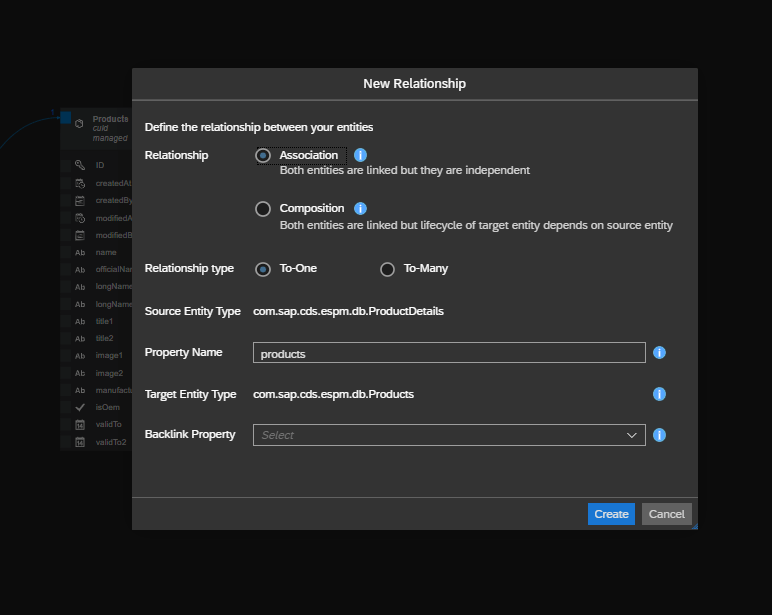

In the popped up relationship dialog as below, leave everything as default:

Click “Create” button to finish the relationship setup:

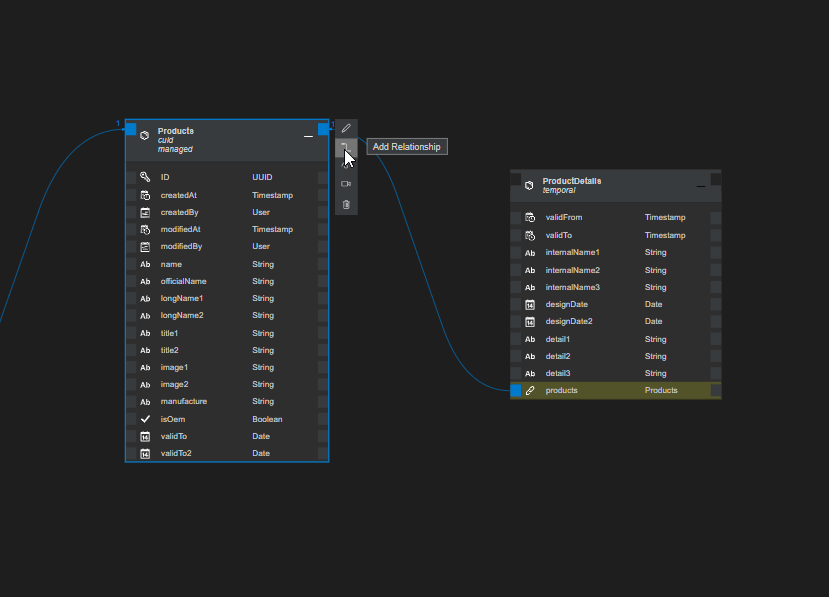

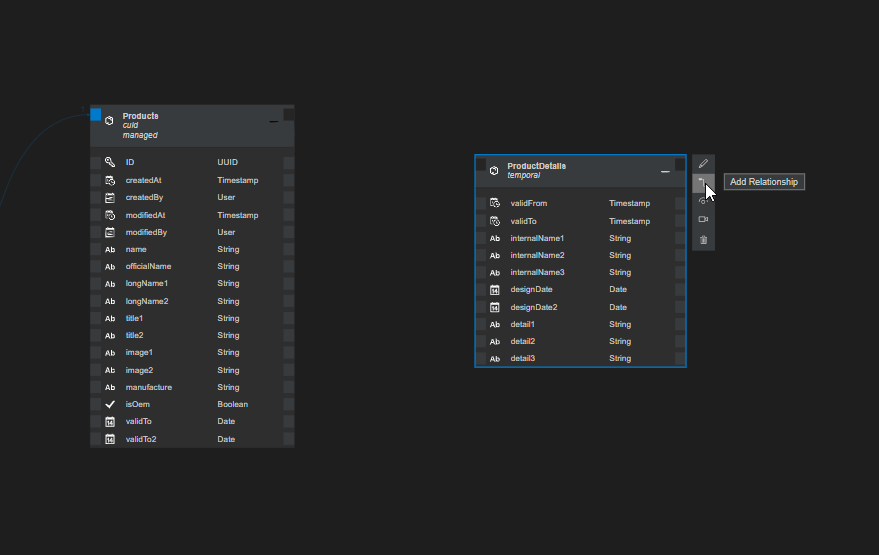

Now make the relationship bi-directional so that we can navigate from the Products to ProductDetails by creating a to-one association from the Products entity to the ProductDetails:

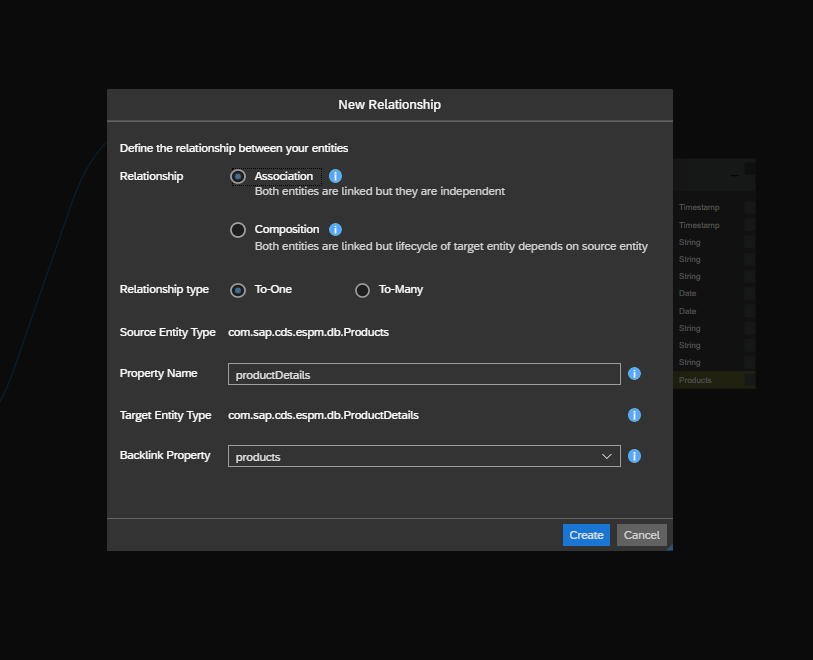

In the relationship dialog, keep everything as default:

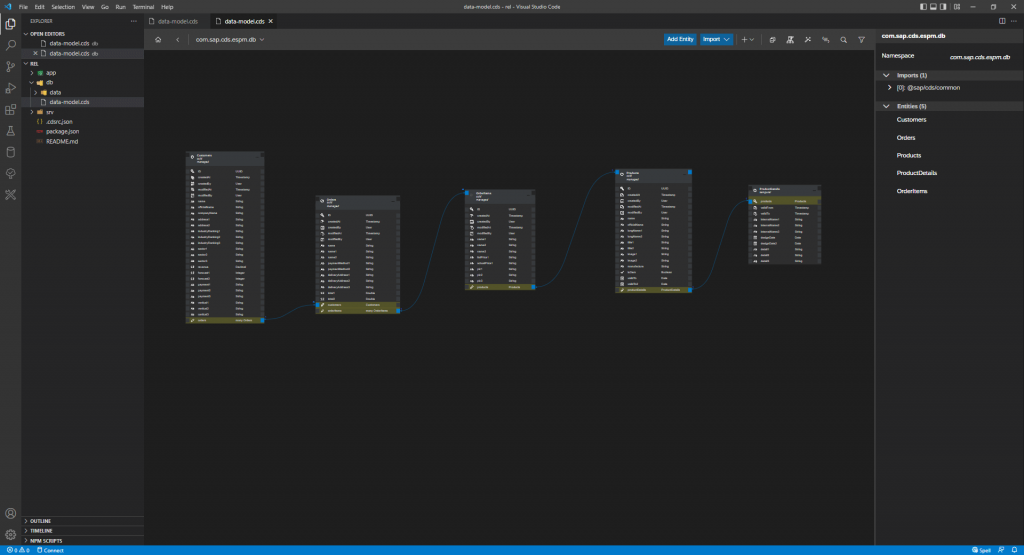

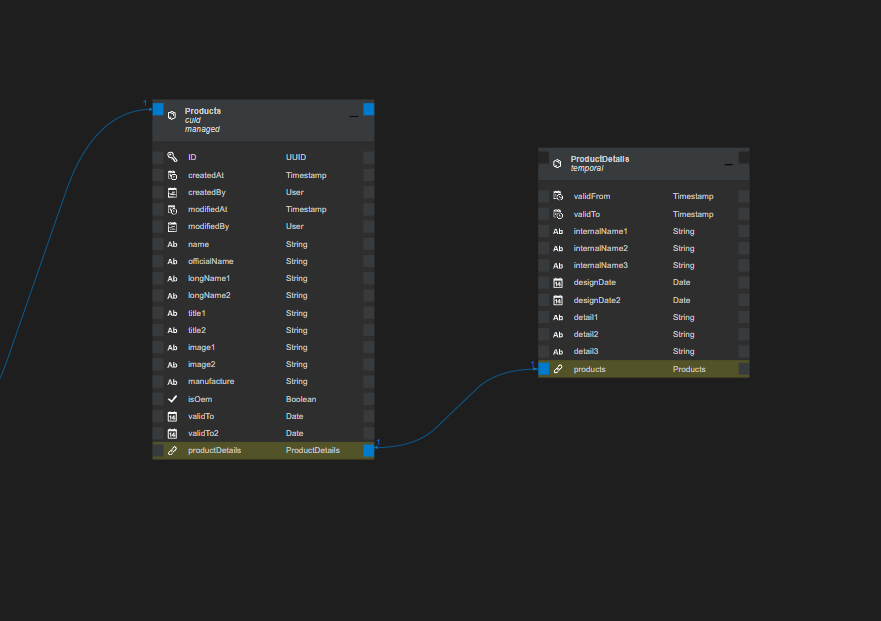

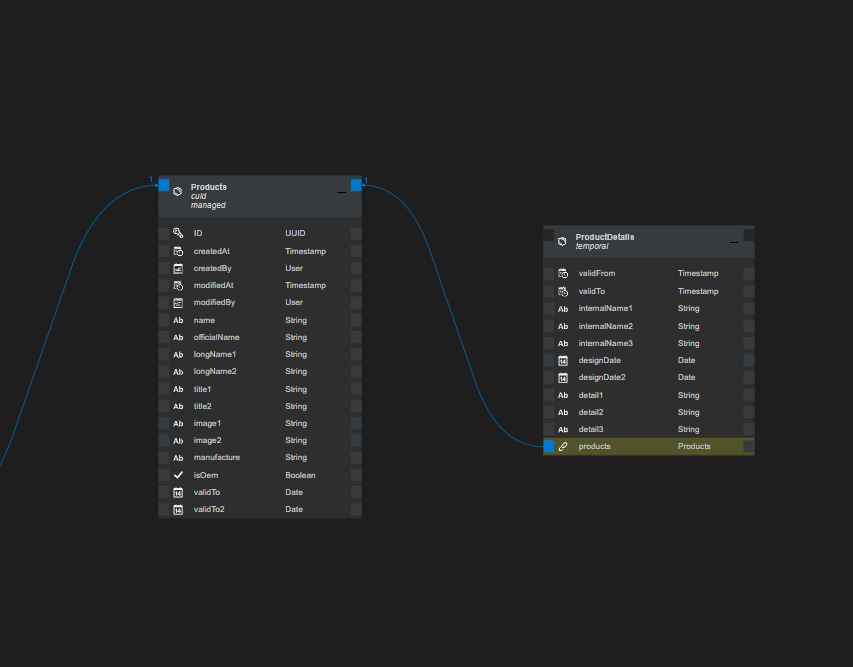

Click “Create” button to finish the relationship setup:

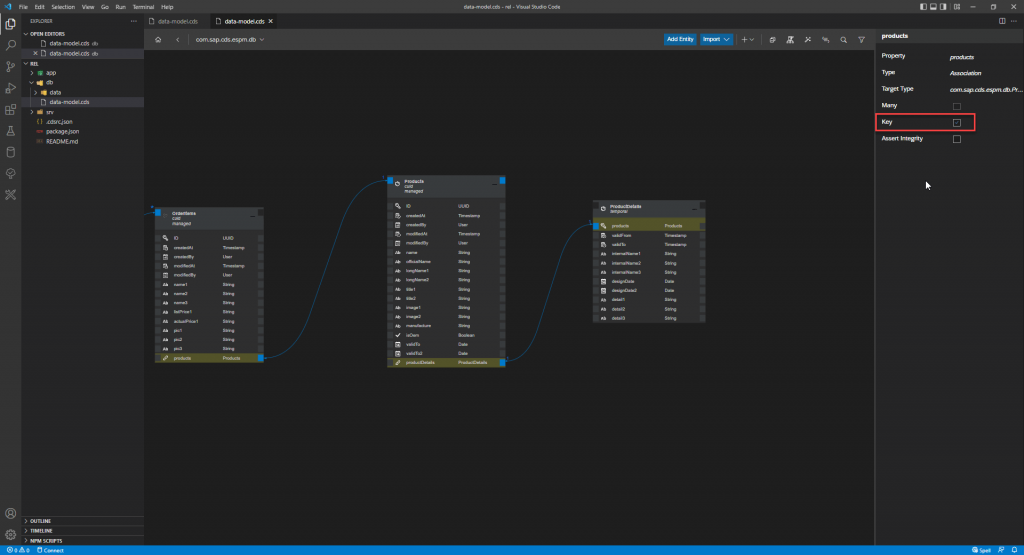

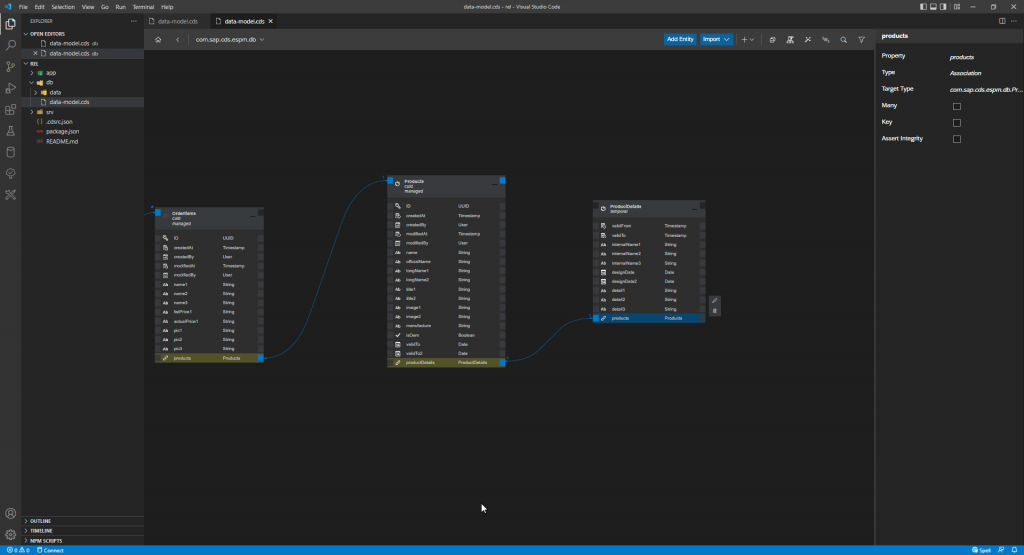

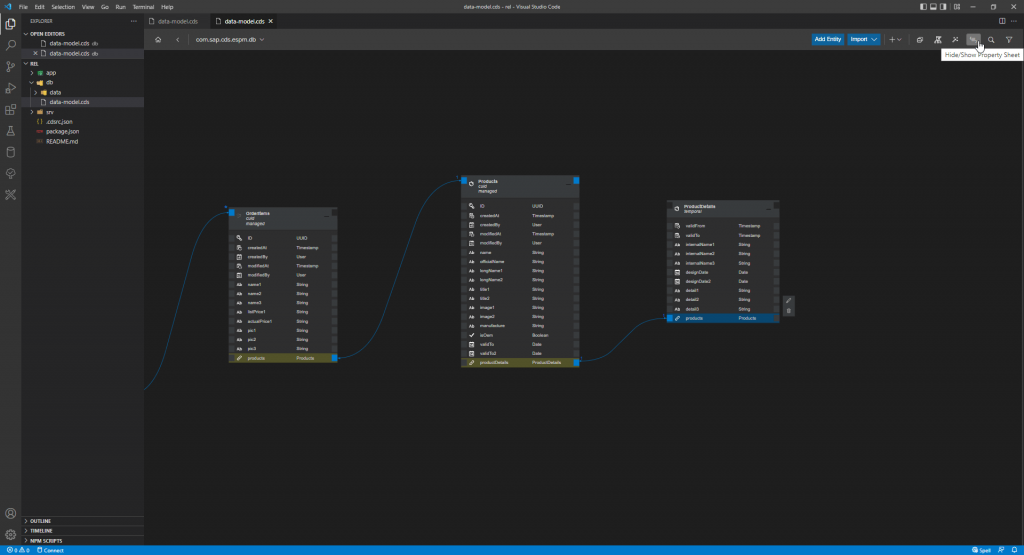

The last thing we want to do is to make the “products” association in the ProductDetails entity the key property. Click the “products” property and click “Hide/Show Property Sheet” toolbar button:
