EWM-Pick List Printing through Post Processing Framework (PPF)

Introduction

Now a days business wants to print the pick list warehouse orders.

This blog will explain how to print the pick list of warehouse orders with PPF actions

To achieve this we have to go with following steps :

1) Create Field Catalog

2) Define Condition Table

3) Define Access Sequences

4) Define Condition Types

5) Define Determination Procedure

6) Assign Determination Procedure

7) Create Condition Maintenance Group

8) Define PPF Action Profiles

9) Define PPF Conditions

10) Create Logical Condition record (/N/SCWM/PRWO5)

11) Maintain Warehouse Specific Printing Parameters(/N/SCWM/60000431)

12) Create Condition Records for Printing Warehouse Order(/N/SCWM/DLVPPFC or /N/SCWM/PRWO6)

13) Testing

Configuration

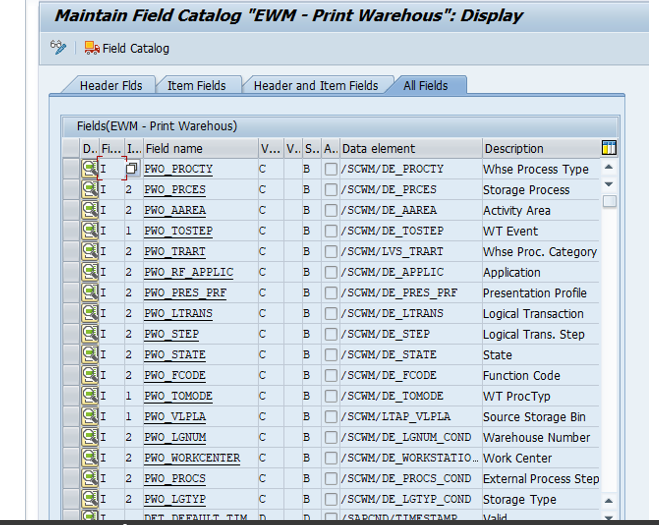

1) Define Field catalog

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Create Field Catalog

2) Define Condition Table

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Define Condition Table

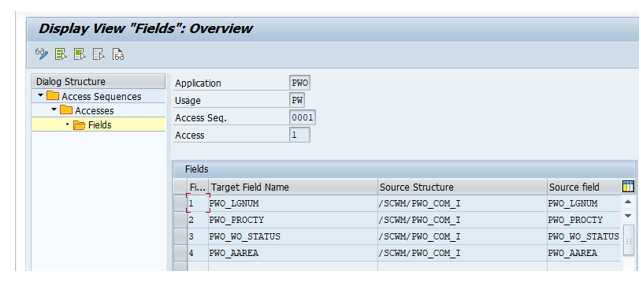

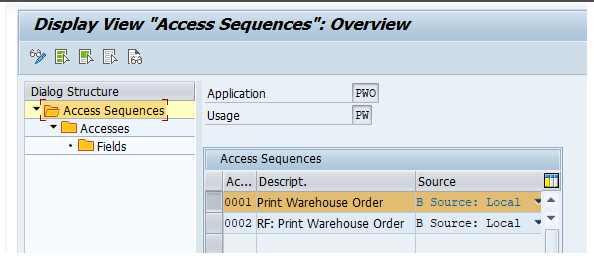

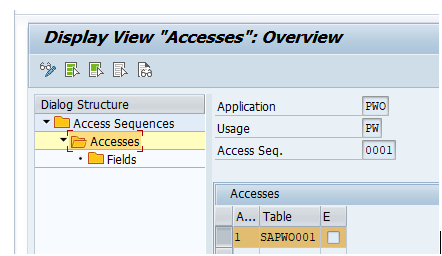

3) Define Access Sequence

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Define Access Sequence

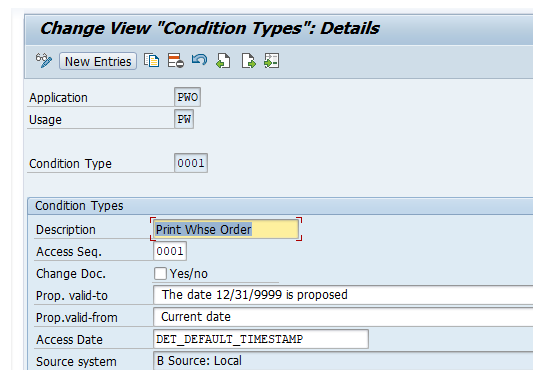

4) Define Condition Types

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Define Condition Types

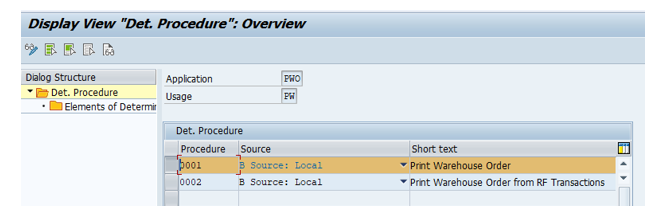

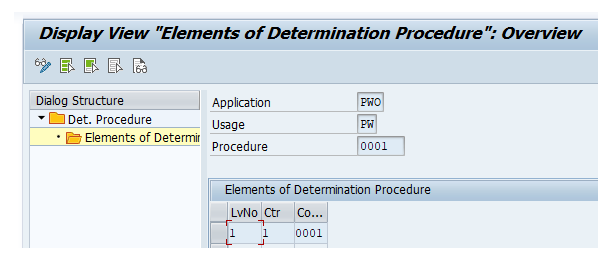

5) Define Determination Procedure

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Define Determination Procedure

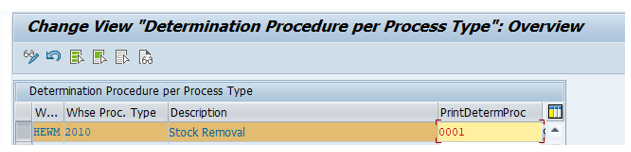

6) Assign Determination Procedure

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Assign Determination Procedure

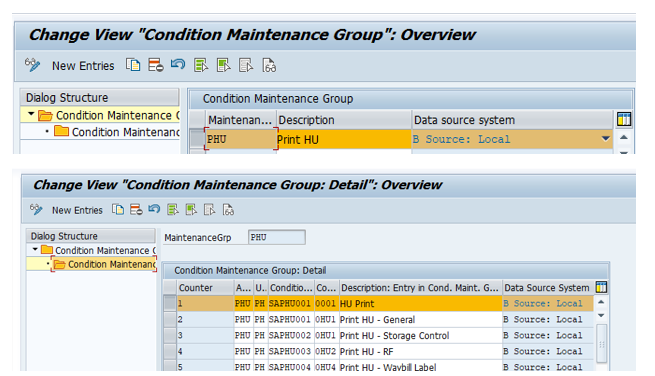

7) Create Condition Maintenance Group

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Create Condition Maintenance Group

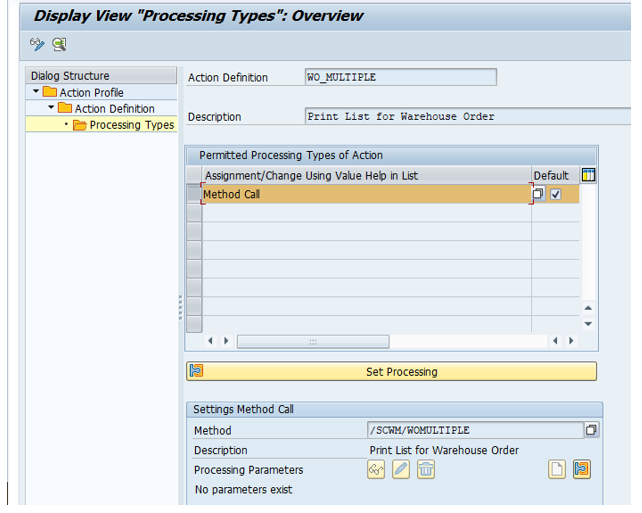

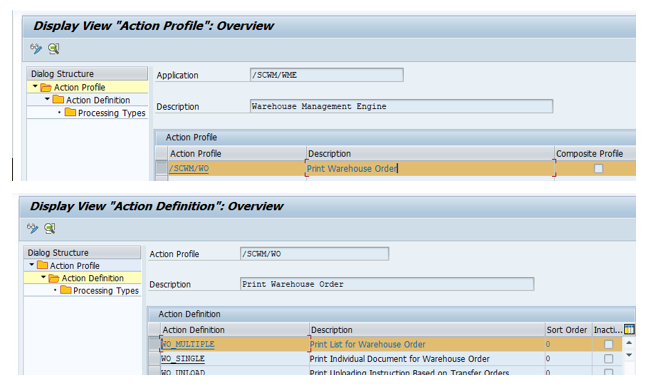

8) Define PPF Action Profiles

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Define PPF Action Profiles

9) Define PPF Conditions

Path: SCM Extended Warehouse Management–>Extended Warehouse Management—>Cross-Process Settings—>Warehouse Order—>Print—>Define PPF Conditions

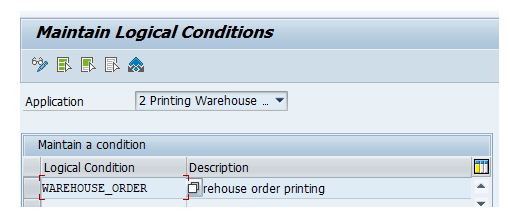

10) Create Logical Condition record (/N/SCWM/PRWO5)

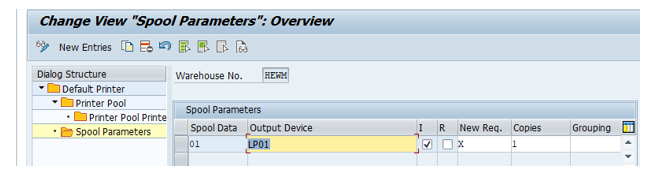

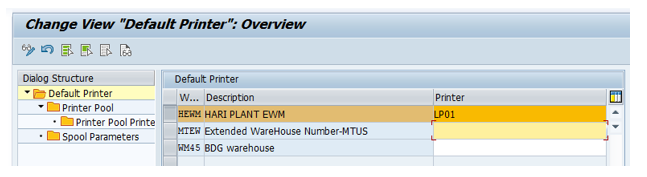

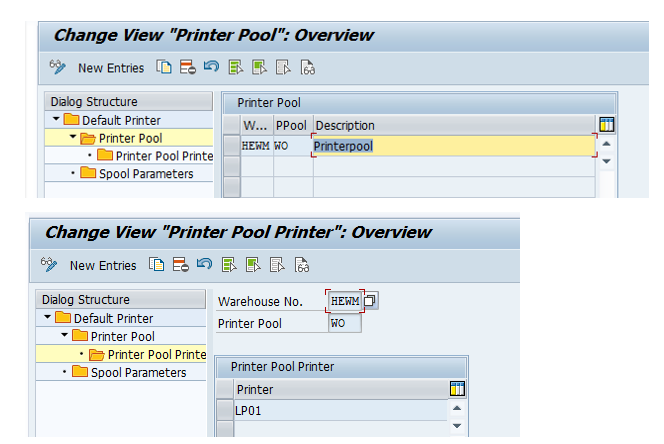

11) Maintain Warehouse Specific Printing Parameters(/N/SCWM/60000431)

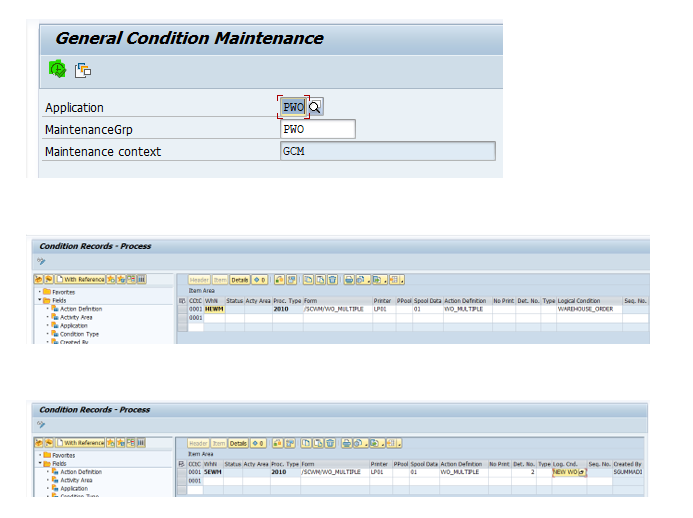

12) Create Condition Records for Printing Warehouse Order

(/N/SCWM/DLVPPFC or /N/SCWM/PRWO6)

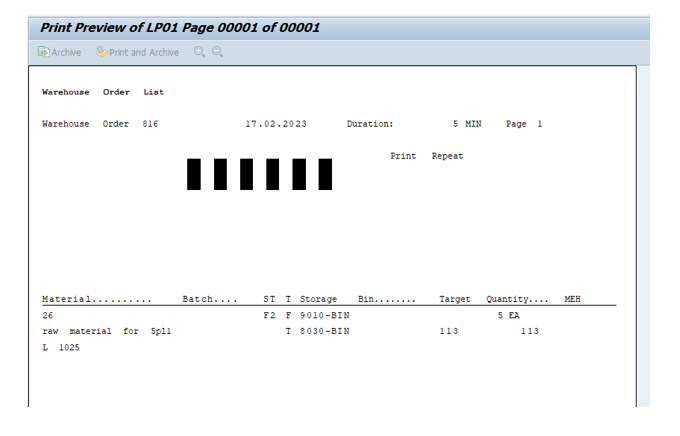

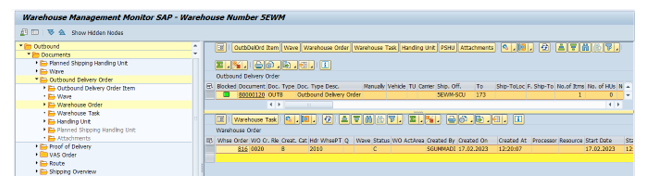

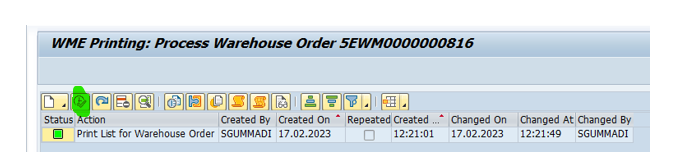

13) TESTING:
