Handling Unit (HU) Label Printing Through PPF in SAP EWM

Introduction

All of you know The SAP EWM PPF(Post Processing Framework) is a tool for the generic execution of functions and processes. It provides a uniform interface for triggering actions, such as printing labels or sending messages or faxes…etc.

Now I want to determine in order to print the Handling Unit(HU) label through PPF(Post Processing Framework) in SAP EWM.

Note: The attached source code is not only used in this scenario only, it was used with other scenarios also. Like the HU related data stored in table and displayed as report. But now I am only projection how to print a HU adobe form label through PPF concept.

Overview:

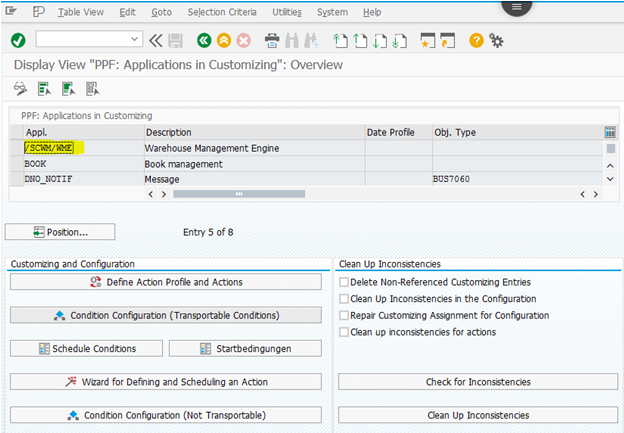

1) Application /SCWM/WME in transaction SPPFCADM

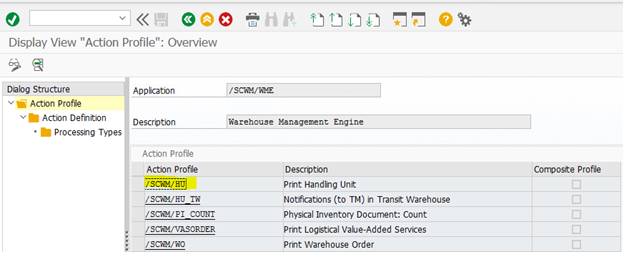

2) Select Action Profile /SCWM/HU

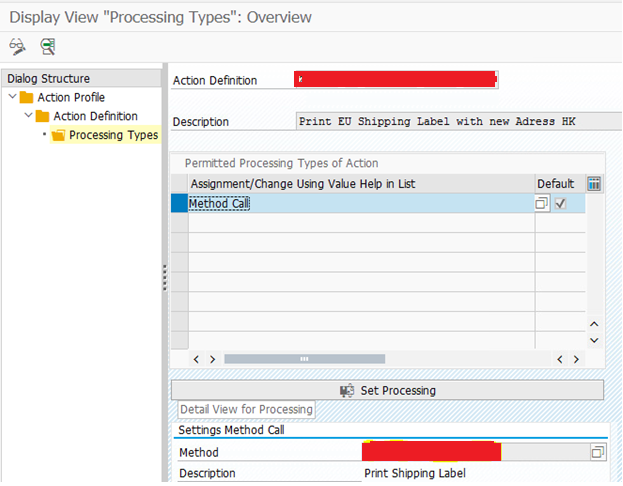

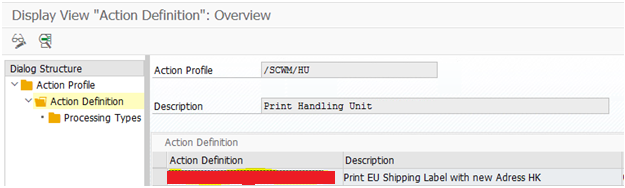

3) Select Action Definition ZHU_SHIPPING_LABEL.

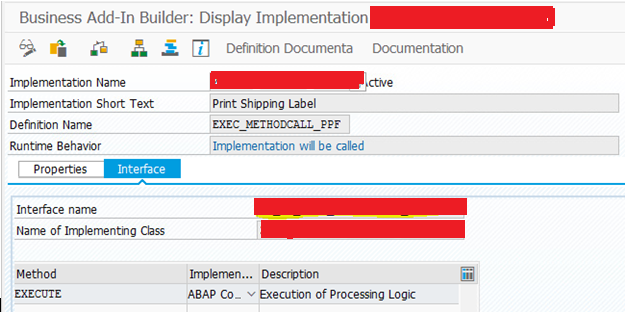

4) Implementation Name

5) Interface Name

6) Write the source code to print a label

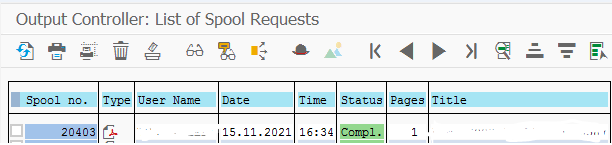

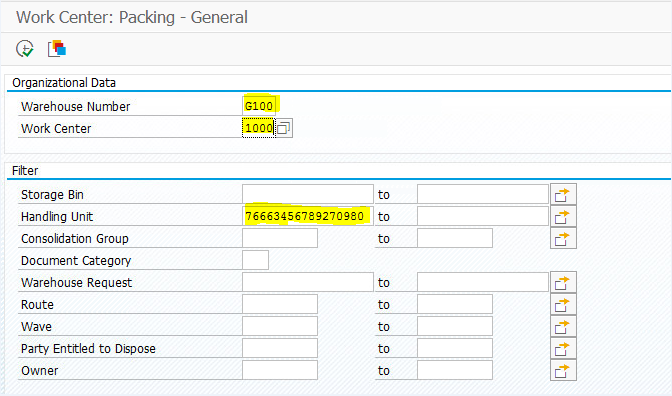

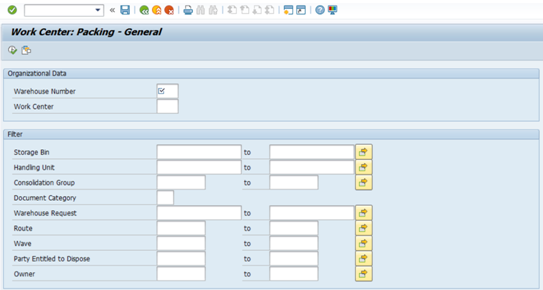

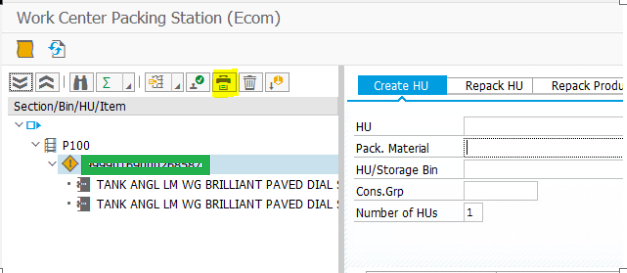

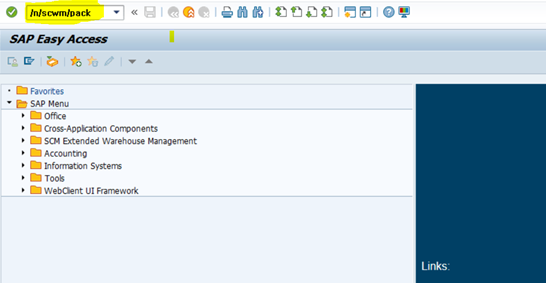

7) How to print a label through /SCWM/PACK Transaction

Steps:

1) Application /SCWM/WME in transaction SPPFCADM.

2) Select Action Profile /SCWM/HU.

3) Select Action Definition ZHU_SHIPPING_LABEL.

4) Implementation Name ZPRINT_SHIPPING_LABEL.

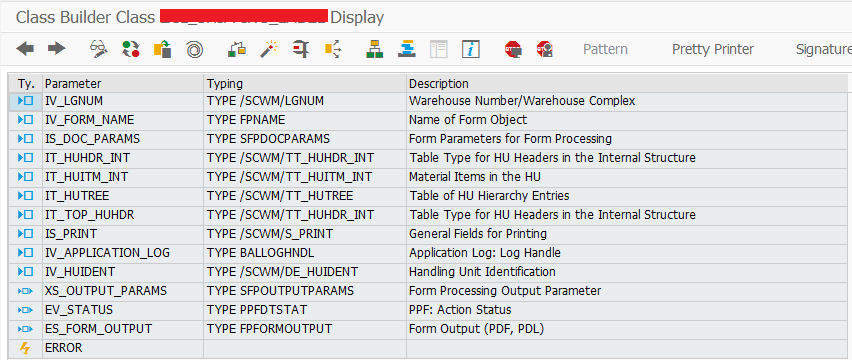

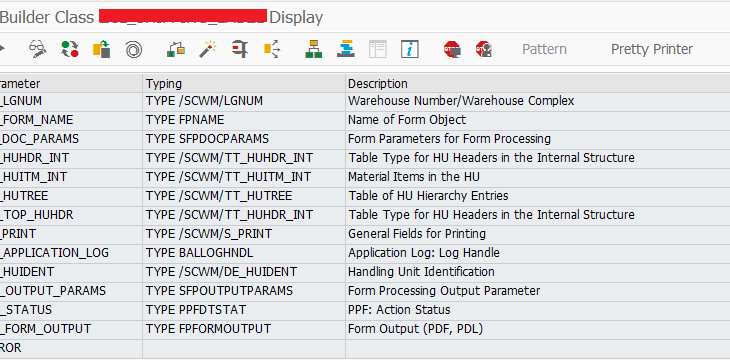

5) Interface Name ZIF_EXEC_METHODCALL_PPF and Name of Implementing Class ZHU_PRINT_SHIPPING_LABEL.

6) Write the code to print the label

METHOD   ZIF_EXEC_METHODCALL_PPF~EXECUTE.
Data:  e_carrier type /scwm/de_tsp,
       e_tu type /scwm/tunit,
       e_first_deliv type /scwm/dlv_header_out_prd_str,
       gt_odn type table of /scwm/dlv_header_out_prd_str,
       gt_hu type table of /scwm/tt_huhdr_int,
       gt_hu_pick type table of /scwm/tt_whohu,
       gt_hu_item type table of /scwm/tt_huitm_int,
       gt_odn_item type table of /scwm/dlv_item_out_prd_tab.
DATA:  lt_shipper type table of adrc,
       ls_shipper type adrc,
       lt_shipto type table of adrc,
       ls_shipto type adrc,
       addrnumber type char10.
Data: e_label type zle_struct_ship_label,
      st_label_shipping type zle_struct_ship_label,
      wa_but000 type but000,
      nb_hu type i,
      dat type d.
Data: ls_doc_params type SFPDOCPARAMS,
      lv_function_name tYPE RS38L_FNAM.

"is_doc_params is filled when click on print icon button in pack transaction.
     ls_doc_params = is_doc_params.

"it_huhdr_int internal table is filled when click on print icon button.
      READ TABLE it_huhdr_int  INTO @data(wa_huhdr) INDEX 1.

      REFRESH : gt_odn, gt_hu, gt_hu_pick, gt_hu_item, gt_odn_item.
      CLEAR : e_carrier, e_tu, e_first_deliv.

*We will get (Transport unit number, outbound delivery numbers, carrier name and after different check get HU header and item).
      CALL FUNCTION 'ZGET_DATA_FROM_HU'
        EXPORTING
          i_hu          = wa_huhdr-huident
        IMPORTING
          e_carrier     = e_carrier
          e_tu          = e_tu
          e_first_deliv = e_first_deliv
        TABLES
          gt_odn        = gt_odn
          gt_hu         = gt_hu
          gt_hu_pick    = gt_hu_pick
          gt_hu_item    = gt_hu_item
          gt_odn_item   = gt_odn_item.

"Adobe form name
        iv_form_name =  'ZSHIPPING_LABEL'
**********************************************************
REFRESH lt_shipper, lt_shipto.
CLEAR : ls_shipto, ls_shipper, e_label, wa_but000, nb_hu.

"shipper address
READ TABLE gt_odn INTO @data(wa_header) INDEX 1.
gt_party = wa_header-partyloc.

READ TABLE gt_party INTO @data(wa_party) WITH KEY party_role = 'SO'.
IF wa_party-addressid IS NOT INITIAL.
addrnumber = wa_party-addressid.
ELSE.
addrnumber = wa_party-addressid_md.
ENDIF.

SELECT * FROM adrc INTO TABLE lt_shipper WHERE  addrnumber = addrnumber.
READ TABLE lt_shipper INTO ls_shipper WITH KEY nation = 'E'.
IF NOT sy-subrc IS INITIAL.
READ TABLE lt_shipper INTO ls_shipper WITH KEY nation = space.
ENDIF.

e_label-sender_name1 = ls_shipper-name1.
e_label-sender_name2 =  ls_shipper-city2.
concatenate ls_shipper-street ls_shipper-house_num1
             into e_label-sender_street separated by space.

e_label-sender_street2 = ls_shipper-str_suppl1.
e_label-sender_postal_code = ls_shipper-post_code1.
e_label-sender_city = ls_shipper-city1.
e_label-sender_country = ls_shipper-country.

"shipto address
READ TABLE gt_party INTO wa_party_ship WITH KEY party_role = 'STPRT'.
IF wa_party_ship-addressid IS NOT INITIAL.
addrnumber = wa_party_ship-addressid.

*determine name for shipto
SELECT * FROM adrc INTO TABLE lt_shipto WHERE  addrnumber = addrnumber.
READ TABLE lt_shipto INTO ls_shipto WITH KEY nation = 'E'.
IF NOT sy-subrc IS INITIAL.
READ TABLE lt_shipto INTO ls_shipto WITH KEY nation = space.
ENDIF.


e_label-rec_name1 = ls_shipto-name1.
e_label-rec_name2 = ls_shipto-city2.
e_label-rec_street = ls_shipto-street.
e_label-rec_street2 = ls_shipto-str_suppl1.
e_label-rec_postal_code = ls_shipto-post_code1.
e_label-rec_city = ls_shipto-city1.
e_label-rec_country = ls_shipto-country.

select single * into wa_but000 from but000
                            where partner = e_tu-tsp.
if wa_but000-type = '2'.
   e_label-carrier_name1 = wa_but000-name_org1.
   e_label-carrier_name2 = wa_but000-name_org2.
else.
   e_label-carrier_name1 = wa_but000-name_first.
   e_label-carrier_name2 = wa_but000-name_last.
endif.

e_label-tu_num = e_tu-tu_num.
call function 'CONVERSION_EXIT_ALPHA_OUTPUT'
    exporting
      input  = e_label-tu_num
    importing
      output = e_label-tu_num.

concatenate dat+6(2) dat+4(2) dat+0(4) into e_label-ship_date
separated by '.'.

e_label-hu_weight = wa_huhdr-g_weight.
e_label-hu_unit   = wa_huhdr-unit_gw.

describe table gt_hu lines nb_hu.

read table gt_hu with  key huident = wa_huhdr-huident.
if sy-subrc = 0.
  e_label-zzcurr_nbpacks = sy-tabix.
endif.

e_label-zztotal_nbpacks = nb_hu.

st_label_shipping = e_label.
**************************************************************
CONCATENATE iv_lgnum wa_huhdr-huident INTO xs_output_params-covtitle SEPARATED BY space.

* Start pdf printing process
      TRY.
          CALL FUNCTION 'FP_FUNCTION_MODULE_NAME'
            EXPORTING
              i_name     = iv_form_name
            IMPORTING
              e_funcname = lv_function_name.

        CATCH cx_fp_api INTO lc_fp_api.
          MESSAGE e082(/scwm/print) WITH iv_form_name INTO mtext.
          RAISE error.
      ENDTRY.

*--No print preview needed
      xs_output_params-nodialog = abap_true.

      CALL FUNCTION 'FP_JOB_OPEN'
        CHANGING
          ie_outputparams = xs_output_params
        EXCEPTIONS
          cancel          = 1
          usage_error     = 2
          system_error    = 3
          internal_error  = 4
          OTHERS          = 5.

      IF sy-subrc <> 0.
        MESSAGE ID sy-msgid
              TYPE sy-msgty
            NUMBER sy-msgno
              WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4
              INTO mtext.
        RAISE error.
      ENDIF.

      CALL FUNCTION lv_function_name
        EXPORTING
          /1bcdwb/docparams  = ls_doc_params
          st_label_shipping  = st_label_shipping
        IMPORTING
          /1bcdwb/formoutput = es_form_output
        EXCEPTIONS
          usage_error        = 1
          system_error       = 2
          internal_error     = 3
          OTHERS             = 4.
      IF sy-subrc <> 0.
* Implement suitable error handling here
      ENDIF.

      IF sy-subrc <> 0.
        MESSAGE ID sy-msgid
              TYPE sy-msgty
            NUMBER sy-msgno
              WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4
              INTO mtext.
        RAISE error.
      ENDIF.

      CALL FUNCTION 'FP_JOB_CLOSE'
        EXCEPTIONS
          usage_error    = 1
          system_error   = 2
          internal_error = 3
          OTHERS         = 4.

      IF sy-subrc <> 0.
        MESSAGE ID sy-msgid
              TYPE sy-msgty
            NUMBER sy-msgno
              WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4
              INTO mtext.

        RAISE error.
      ENDIF.

""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""

FUNCTION zget_data_from_hu.
*"----------------------------------------------------------------------
*"*"Local Interface:
*"  IMPORTING
*"     REFERENCE(I_HU) TYPE  /SCWM/DE_HUIDENT
*"     VALUE(I_TAKE_TEXT) TYPE  CHAR1 OPTIONAL
*"     VALUE(I_ALL_PICKHU) TYPE  CHAR1 OPTIONAL
*"     REFERENCE(IV_LGNUM) TYPE  /SCWM/LGNUM OPTIONAL
*"     REFERENCE(IS_HUHDR) TYPE  /SCWM/HUHDR OPTIONAL
*"  EXPORTING
*"     VALUE(E_CARRIER) TYPE  /SCWM/DE_TSP
*"     VALUE(E_TU) TYPE  /SCWM/TUNIT
*"     VALUE(E_FIRST_DELIV) TYPE  /SCWM/DLV_HEADER_OUT_PRD_STR
*"  TABLES
*"      GT_ODN TYPE  /SCWM/DLV_HEADER_OUT_PRD_TAB OPTIONAL
*"      GT_HU TYPE  /SCWM/TT_HUHDR_INT OPTIONAL
*"      GT_HU_PICK TYPE  /SCWM/TT_WHOHU OPTIONAL
*"      GT_HU_ITEM TYPE  /SCWM/TT_HUITM_INT OPTIONAL
*"      GT_ODN_ITEM TYPE  /SCWM/DLV_ITEM_OUT_PRD_TAB OPTIONAL
*"      GT_IDENT TYPE  /SCWM/TT_IDENT_INT OPTIONAL
*"      GT_ODN_ALL_TU TYPE  /SCWM/TT_DOCID OPTIONAL
*"----------------------------------------------------------------------

  DATA: ls_exclude        TYPE /scwm/dlv_query_excl_str.
        gt_who TYPE TABLE OF  /scwm/who.
        wa_who TYPE /scwm/who.

  CLEAR ls_exclude.

  IF is_huhdr-guid_hu IS NOT INITIAL.
*  perfect select by guid HU
    SELECT SINGLE * INTO wa_huhdr FROM /scwm/huhdr
                   WHERE guid_hu = is_huhdr-guid_hu.
    IF sy-subrc NE 0.
      sy-subrc = sy-subrc.
    ENDIF.
  ELSEIF iv_lgnum IS NOT INITIAL.
*   not perfect but not Sh... select huidnet and warehouse
    SELECT SINGLE * INTO wa_huhdr FROM /scwm/huhdr
              WHERE huident = i_hu
                AND lgnum   = iv_lgnum.
    IF sy-subrc NE 0.
      sy-subrc = sy-subrc.
    ENDIF.
  ELSE.
*   Risk of wrong selection if dupplicate huident in the table

    SELECT SINGLE * INTO wa_huhdr FROM /scwm/huhdr
                              WHERE huident =  i_hu.
    IF sy-subrc NE 0.
      sy-subrc = sy-subrc.
    ENDIF.
  ENDIF.

  CHECK sy-subrc = 0.
  ls_guid_hu-guid_hu = wa_huhdr-guid_hu.
  APPEND ls_guid_hu TO it_guid_hu.

  CALL FUNCTION '/SCWM/HU_GT_FILL'
    EXPORTING
      iv_appl      = wmegc_huappl_wme
      it_guid_hu   = it_guid_hu
    IMPORTING
      et_huhdr     = et_huhdr
      et_ident     = et_ident
      et_reference = et_huref
      et_tree      = et_hutree
      et_huitm     = et_huitm
    EXCEPTIONS
      error        = 1
      OTHERS       = 2.
  IF sy-subrc NE 0.
    sy-subrc = sy-subrc.
  ENDIF.

  gt_ident[] = et_ident.
  gt_hu_item[] = et_huitm.

  REFRESH :   gt_header,gt_item_idn,gt_return,gt_docid,gt_odn[],
              gt_odn_item[].
  CLEAR wa_docid.

  LOOP AT  et_huitm INTO wa_huitm.
    CHECK wa_huitm-qdocid IS NOT INITIAL.

    wa_docid-docid = wa_huitm-qdocid.
    wa_docid-itemid = wa_huitm-qitmid.
    wa_docid-doccat = wa_huitm-qdoccat  .

    APPEND wa_docid TO gt_docid.
    CLEAR wa_docid.
  ENDLOOP.

  IF i_take_text  IS INITIAL.
    ls_exclude-head_text     = 'X'.
    ls_exclude-head_textline = 'X'.
    ls_exclude-item_text     = 'X'.
    ls_exclude-item_textline = 'X'.
  ENDIF.


  CALL FUNCTION '/SCWM/WHR_QUERY'
    EXPORTING
      it_docid        = gt_docid
      is_exclude_data = ls_exclude
    IMPORTING
      et_whr_headers  = gt_odn[]
      et_whr_items    = gt_odn_item[]
      et_return       = gt_return.


  CLEAR wa_huitm.
  READ TABLE et_huitm INTO wa_huitm INDEX 1.


  READ TABLE gt_odn INTO wa_header INDEX 1.
  e_first_deliv = wa_header.


* get pick hu
  REFRESH : gt_ordim_o, gt_hu_pick, gt_who.

  IF gt_odn[] IS NOT INITIAL.
    SELECT * INTO TABLE gt_ordim_o FROM /scwm/ordim_o
                      FOR ALL ENTRIES IN gt_odn
                            WHERE    rdoccat = gt_odn-doccat
                              AND rdocid = gt_odn-docid.
    IF sy-subrc NE 0.
      sy-subrc = sy-subrc.
    ENDIF.
  ENDIF.

  DELETE gt_ordim_o WHERE lgnum NE wa_huhdr-lgnum.

  IF gt_ordim_o[] IS NOT INITIAL.

* for Process PPP
    SELECT * INTO TABLE gt_who FROM /scwm/who
                      FOR ALL ENTRIES IN gt_ordim_o
                            WHERE  lgnum = gt_ordim_o-lgnum
                                 AND who = gt_ordim_o-who.
    IF sy-subrc NE 0.
      sy-subrc = sy-subrc.
    ENDIF.

    LOOP AT gt_who INTO wa_who.

* check process PPP
      IF wa_who-topwhoid IS NOT INITIAL .
** PPP
        SELECT * APPENDING TABLE gt_hu_pick FROM /scwm/whohu
                                WHERE  lgnum = wa_who-lgnum
                                     AND who = wa_who-topwhoid.
        IF sy-subrc NE 0.
          sy-subrc = sy-subrc.
        ENDIF.
      ELSE.
        SELECT * APPENDING TABLE gt_hu_pick FROM /scwm/whohu
                                WHERE  lgnum = wa_who-lgnum
                                     AND who = wa_who-who.

        IF sy-subrc NE 0.
          sy-subrc = sy-subrc.
        ENDIF.
      ENDIF.

    ENDLOOP.

  ENDIF.

  SORT   gt_hu_pick BY lgnum huid.
  DELETE ADJACENT DUPLICATES FROM gt_hu_pick COMPARING lgnum huid.


** find tu attached to delivery
  CLEAR wa_tu_del.
  SELECT SINGLE * INTO wa_tu_del FROM /scwm/tu_dlv
                                      WHERE docno = wa_header-docno
                                      AND doccat = wa_header-doccat.
  IF sy-subrc NE 0.
    sy-subrc = sy-subrc.
  ENDIF.
*  CHECK sy-subrc = 0.
  CLEAR wa_unit.
  SELECT SINGLE * INTO wa_unit FROM /scwm/tunit
                        WHERE tu_num = wa_tu_del-tu_num.
  e_tu = wa_unit.

  IF sy-subrc NE 0.
    sy-subrc = sy-subrc.
  ENDIF.

* retrieve all hu in TU

  SELECT * INTO TABLE gt_tu_del FROM /scwm/tu_dlv
                        WHERE tu_num = wa_tu_del-tu_num.


  IF sy-subrc NE 0.
    sy-subrc = sy-subrc.
  ENDIF.

  SORT gt_tu_del BY top_huident.
  DELETE ADJACENT DUPLICATES FROM gt_tu_del COMPARING docid. " TOP_HUIDENT.
*  delete gt_tu_del WHERE TOP_HUIDENT IS INITIAL.

  CLEAR hu_tracking.
  REFRESH gt_hu.
  REFRESH lt_docid_read.
  IF gt_tu_del IS NOT INITIAL.

    LOOP AT  gt_tu_del INTO wa_tu_del.


      ls_docid-docid = wa_tu_del-docid.

      APPEND ls_docid TO lt_docid_read.
      CLEAR ls_docid.
    ENDLOOP.

    SORT lt_docid_read.
    DELETE ADJACENT DUPLICATES FROM lt_docid_read.

    CALL FUNCTION '/SCWM/DLV_GET_HUS_FOR_DELIVERY'
      EXPORTING
        iv_doccat = wa_tu_del-doccat
        it_docid  = lt_docid_read
      IMPORTING
        et_high   = lt_high
        et_huref  = lt_huref
        et_ident  = lt_ident
        et_huhdr  = lt_huhdr
        et_huitm  = lt_huitm
        et_hutree = lt_hutree
      EXCEPTIONS
        error     = 1
        OTHERS    = 2.
    IF sy-subrc NE 0.
      sy-subrc = sy-subrc.
    ENDIF.


    gt_hu[]   = lt_huhdr[].

    gt_odn_all_tu[] = lt_docid_read[].

  ENDIF.

ENDFUNCTION.

ENDMETHOD.

7) How to print a label through /SCWM/PACK Transaction

Printing

7.1) Execute the transaction /SCWM/PACK in EWM.

7.2) Upon executing the transaction code /SCWM/PACK, it displays the below screen.

7.3) Enter the warehouse number G100, work center 1000 and Handling unit number 76663456789270980. Click on Execute.

7.4) After execution, the below screen is displayed and put a cursor on handling unit number 76663456789270980(Green highlighted color) and double click on it and click on Print Icon Button in application tool bar.

7.5) Once the Print icon button is clicked, then source code is triggered and handling unit label is printed.

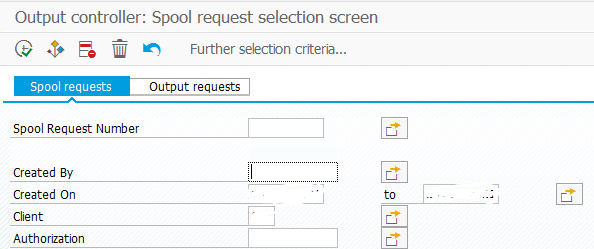

7.6) Go to SP01 transaction.

7.7) Execute the transaction and will see the label.

7.8) HU related required information is printed on adobe form HU label.

Note: print the HU label either manually /SCWM/PACK/ or automatically or through RF after
the HU number is generated.In our case we use /SCWM/PACK transaction.

Rating: 0 / 5 (0 votes)
