Introduction
LSMW and LTMC are weak on complexity of routing. Component allocation, PRT assignment, etc. is hard to manage with these standart tools.
Therefore i developped a flexible program that you can upload a whole excel with multiple sheets at once.
Details

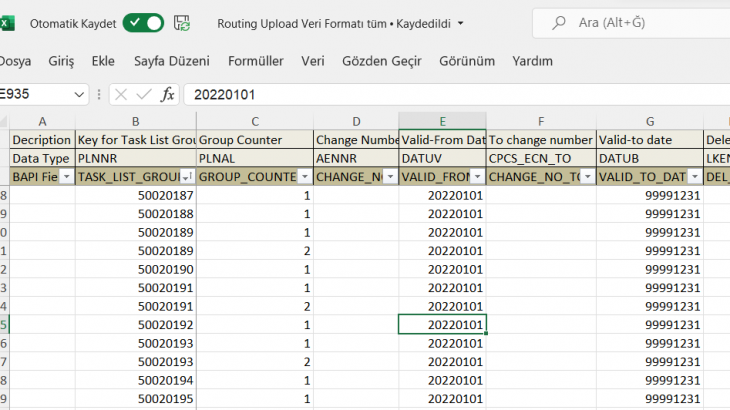

In the selection screen below, you can map your excel details.
Your excel need to have Technical names in a specific row in all the sheets. And the data should start in the same row in all the sheets.
You can find the complete excel in the link: Upload Format
Additional information:
- You can have extra sheet in your excel. If it is not mapped in selection screen, system will not consider that sheet.
- You can have extra fields. If the field is name is not in BAPI structure, system will not consider it.
- You can send the program to the Background task not to wait the Bapi run. Then you can check you task with tcode SM58.
- You can split the bapi runs, so if any task gets error, system can contionue with the rest of the rountings.
Step-by-step program creation
Creation of the program needs only 2 ABAP steps:
1. Create the program ZPP_000_ROUTING_UPLOAD in tcode SE38, paste the code below. No screen creation or text edit needed.
*&---------------------------------------------------------------------*
*& Report ZPP_ROUTING_UPLOAD
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zpp_000_routing_upload.
**********************************************************************
**********************************************************************
**** Created by Oğuzhan Subaşı at 13.07.2015 *****
**** You can copy and distribute as you wish *****
**** Just keep this section please *****
**********************************************************************
**********************************************************************
TABLES:sscrfields, mapl.
TYPES: BEGIN OF lty_s_itab, "alsmex_tabline but with bigger "row"
row TYPE numc10,
col TYPE kcd_ex_col_n,
value TYPE char50,
END OF lty_s_itab,
lty_t_itab TYPE TABLE OF lty_s_itab.
DATA: task TYPE TABLE OF bapi1012_tsk_c,
materialtaskallocation TYPE TABLE OF bapi1012_mtk_c,
sequence TYPE TABLE OF bapi1012_seq_c,
operation TYPE TABLE OF bapi1012_opr_c,
suboperation TYPE TABLE OF bapi1012_sub_opr_c,
referenceoperation TYPE TABLE OF bapi1012_ref_opr_c,
workcenterreference TYPE TABLE OF bapi1012_wc_ref_opr_c,
componentallocation TYPE TABLE OF bapi1012_com_c,
productionresource TYPE TABLE OF bapi1012_prt_c,
inspcharacteristic TYPE TABLE OF bapi1012_cha_c,
textallocation TYPE TABLE OF bapi1012_txt_hdr_c,
text TYPE TABLE OF bapi1012_txt_c,
testrun TYPE bapiflag.
**********************************************************************
**ALSM_EXCEL_TO_INTERNAL_TABLE****
****LALSMEXTOP*******
*FUNCTION-POOL alsmex. "MESSAGE-ID ..
TYPE-POOLS: ole2.
* value of excel-cell
TYPES: ty_d_itabvalue TYPE alsmex_tabline-value,
* internal table containing the excel data
ty_t_itab TYPE alsmex_tabline OCCURS 0,
* line type of sender table
BEGIN OF ty_s_senderline,
line(4096) TYPE c,
END OF ty_s_senderline,
* sender table
ty_t_sender TYPE ty_s_senderline OCCURS 0.
*
CONSTANTS: gc_esc VALUE '"'.
INCLUDE lalsmexf01. "For ALSM_EXCEL_TO_INTERNAL_TABLE
**********************************************************************
*--------------------------------------------------------------------*
**********************************************************************
**********************************************************************
******SELECTION SCREEN************************************************
**********************************************************************
SELECTION-SCREEN BEGIN OF BLOCK bl1 WITH FRAME TITLE tit1.
PARAMETERS: p_file TYPE localfile OBLIGATORY .
SELECT-OPTIONS: r_plnnr FOR mapl-plnnr.
SELECTION-SCREEN END OF BLOCK bl1.
SELECTION-SCREEN BEGIN OF BLOCK bl2 WITH FRAME TITLE tit2.
PARAMETERS: sht_task TYPE i LENGTH 2 OBLIGATORY DEFAULT 1,
sht_allc TYPE i LENGTH 2 DEFAULT 2,
sht_seqn TYPE i LENGTH 2 DEFAULT 3,
sht_oprt TYPE i LENGTH 2 DEFAULT 4,
sht_subo TYPE i LENGTH 2 DEFAULT 5,
sht_comp TYPE i LENGTH 2 DEFAULT 6,
sht_insp TYPE i LENGTH 2 DEFAULT 7,
sht_prt TYPE i LENGTH 2 DEFAULT 8.
SELECTION-SCREEN END OF BLOCK bl2.
SELECTION-SCREEN BEGIN OF BLOCK bl3 WITH FRAME TITLE tit3.
PARAMETERS: p_hdrrow TYPE n LENGTH 2 OBLIGATORY DEFAULT 3, "Header Row
p_dstrow TYPE n LENGTH 2 OBLIGATORY DEFAULT 4. "First Data Row
SELECTION-SCREEN END OF BLOCK bl3.
SELECTION-SCREEN BEGIN OF BLOCK bl4 WITH FRAME TITLE tit4.
PARAMETERS: p_updtsk AS CHECKBOX , "Run in Update task
p_bapitq TYPE numc10 DEFAULT 1. "RUN bapi with that much TASK quantity each time
SELECTION-SCREEN END OF BLOCK bl4.
AT SELECTION-SCREEN ON VALUE-REQUEST FOR p_file.
CALL FUNCTION 'KD_GET_FILENAME_ON_F4'
EXPORTING
static = 'X'
CHANGING
file_name = p_file.
INITIALIZATION.
PERFORM change_texts.
AT SELECTION-SCREEN.
DATA(lv_ucomm) = sy-ucomm.
CLEAR sy-ucomm.
CASE lv_ucomm.
WHEN 'ONLI'.
DATA: lv_answer.
CALL FUNCTION 'POPUP_TO_CONFIRM'
EXPORTING
titlebar = 'Excel Upload Start'
text_question = 'Do Not use your computer until the Excel read finishes'
IMPORTING
answer = lv_answer.
CHECK lv_answer EQ '1'.
PERFORM zalsm_excel .
IF p_updtsk IS INITIAL.
CALL FUNCTION 'POPUP_TO_CONFIRM'
EXPORTING
titlebar = 'Excel Upload Finish'
text_question = 'Excel read completed. Now on, you can use your computer'
IMPORTING
answer = lv_answer.
CHECK lv_answer EQ '1'.
ENDIF.
PERFORM bapi_routing_create.
ENDCASE.
END-OF-SELECTION.
**********************************************************************
********FORMS*********************************************************
**********************************************************************
*&---------------------------------------------------------------------*
*& Form FILL_BAPI_TABLES
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM fill_bapi_tables TABLES t_imp TYPE lty_t_itab "kcde_cells
USING p_table TYPE dd03m-tabname.
DATA: lv_error TYPE string,
lv_table_type TYPE fupararef-structure,
lv_hdrrow TYPE lty_s_itab-row,
lv_dstrow TYPE lty_s_itab-row,
fields TYPE string OCCURS 0 WITH HEADER LINE,
lt_dd03m TYPE dd03m OCCURS 0 WITH HEADER LINE.
FIELD-SYMBOLS: <structure> TYPE any,
<table> TYPE STANDARD TABLE,
<field> TYPE any.
CHECK t_imp[] IS NOT INITIAL .
ASSIGN (p_table) TO <table>.
CLEAR <table>.
DATA: ls_struct TYPE REF TO data.
CREATE DATA: ls_struct LIKE LINE OF <table> .
ASSIGN ls_struct->* TO <structure>.
SELECT structure FROM fupararef INTO lv_table_type UP TO 1 ROWS
WHERE funcname = 'BAPI_ROUTING_CREATE'
AND parameter = p_table
AND paramtype = 'T' ORDER BY PRIMARY KEY.
EXIT.
ENDSELECT.
SELECT * FROM dd03m
INTO TABLE lt_dd03m
WHERE tabname = lv_table_type.
SORT lt_dd03m BY fieldname.
DELETE ADJACENT DUPLICATES FROM lt_dd03m COMPARING fieldname .
SORT t_imp BY row col .
lv_hdrrow = p_hdrrow .
"Sütun adlarını al
READ TABLE t_imp WITH KEY row = lv_hdrrow BINARY SEARCH.
CHECK sy-subrc IS INITIAL.
LOOP AT t_imp INTO DATA(ls_imp) FROM sy-tabix.
IF ls_imp-row NE lv_hdrrow. EXIT. ENDIF.
fields = ls_imp-value.
APPEND fields.
ENDLOOP.
"İlk Satır Başlık Satırı
lv_dstrow = p_dstrow .
READ TABLE t_imp WITH KEY row = lv_dstrow BINARY SEARCH.
CHECK sy-subrc IS INITIAL.
LOOP AT t_imp INTO ls_imp FROM sy-tabix.
AT NEW row.
IF <structure> IS NOT INITIAL.
APPEND <structure> TO <table>.
CLEAR <structure>.
ENDIF.
ENDAT.
READ TABLE fields INDEX ls_imp-col .
CHECK sy-subrc IS INITIAL.
CHECK fields IS NOT INITIAL. "Boş sütunlar.
CHECK ls_imp-value IS NOT INITIAL. "Boş Alanlar
READ TABLE lt_dd03m WITH KEY fieldname = fields BINARY SEARCH.
CHECK sy-subrc IS INITIAL.
* CONCATENATE p_table 'tablosunun' fields ' Sütunu BAPI ye aktarılamıyor'
* INTO lv_error.
* MESSAGE lv_error TYPE 'E'.
* ENDIF.
ASSIGN COMPONENT fields OF STRUCTURE <structure> TO <field>.
CHECK sy-subrc IS INITIAL.
PERFORM check_and_correct USING lt_dd03m ls_imp-value CHANGING <field>.
ENDLOOP.
IF <structure> IS NOT INITIAL.
APPEND <structure> TO <table>. "Son satırı da ekle
ENDIF.
ENDFORM. " FILL_BAPI_TABLES
*&---------------------------------------------------------------------*
*& Form CHECK_AND_CORRECT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* -->P_LS_DD03M text
* <--P_LS_IMP_VALUE text
*----------------------------------------------------------------------*
FORM check_and_correct USING s_dd03m TYPE dd03m
p_input
CHANGING p_output .
CHECK p_input IS NOT INITIAL.
IF s_dd03m-convexit IS NOT INITIAL.
DATA(lv_func_conv) = |CONVERSION_EXIT_{ s_dd03m-convexit }_INPUT|.
CALL FUNCTION lv_func_conv
EXPORTING
input = p_input
IMPORTING
output = p_output.
ELSE.
CASE s_dd03m-datatype.
WHEN 'QUAN' OR 'DEC'.
REPLACE ',' WITH '.' INTO p_input.
ENDCASE.
p_output = p_input.
ENDIF.
ENDFORM. " CHECK_AND_CORRECT
*&---------------------------------------------------------------------*
*& Form BAPI_ROUTING_CREATE
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM bapi_routing_create .
DATA: lt_return TYPE TABLE OF bapiret2 WITH HEADER LINE.
DELETE task WHERE task_list_group NOT IN r_plnnr.
IF p_updtsk IS INITIAL.
CALL FUNCTION 'ZPP_BAPI_ROUTING_CREATE'
EXPORTING
iv_bapitq = p_bapitq
TABLES
tsk = task
mtk = materialtaskallocation
seq = sequence
opr = operation
sbo = suboperation
rfo = referenceoperation
wcr = workcenterreference
com = componentallocation
prt = productionresource
cha = inspcharacteristic
txt = textallocation
et_return = lt_return.
ELSE.
CALL FUNCTION 'ZPP_BAPI_ROUTING_CREATE' IN BACKGROUND TASK AS SEPARATE UNIT
EXPORTING
iv_bapitq = p_bapitq
TABLES
tsk = task
mtk = materialtaskallocation
seq = sequence
opr = operation
sbo = suboperation
rfo = referenceoperation
wcr = workcenterreference
com = componentallocation
prt = productionresource
cha = inspcharacteristic
txt = textallocation
* et_return = lt_return
.
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT' EXPORTING wait = 'X'.
MESSAGE 'Process sent to Update Task' TYPE 'I'.
ENDIF.
IF lt_return[] IS NOT INITIAL .
cl_rmsl_message=>display( lt_return[] ).
ENDIF.
ENDFORM. " BAPI_ROUTING_CREATE
*&---------------------------------------------------------------------*
*& Form ZALSM_EXCEL_TO_INTERNAL_TABLE
*&---------------------------------------------------------------------*
* * ALSM_EXCEL_TO_INTERNAL_TABLE code enhanced for multiple sheets
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM zalsm_excel.
DATA: i_beg_col TYPE i VALUE 1,
i_end_col TYPE i VALUE 999,
i_beg_row TYPE i,
i_end_row TYPE i,
sheet_no TYPE i,
intern TYPE lty_t_itab.
**********************************************************************
**********************************************************************
*--> "13.07.15 Oğuzhan Subaşı
"ALSM_EXCEL_TO_INTERNAL_TABLE code enhanced for multiple sheets
*<-- "13.07.15 Oğuzhan Subaşı
DATA: excel_tab TYPE ty_t_sender,
excel_tab_sheet TYPE ty_t_sender,
ld_separator TYPE c,
application TYPE ole2_object,
workbook TYPE ole2_object,
range TYPE ole2_object,
worksheet TYPE ole2_object,
h_cell TYPE ole2_object,
h_cell1 TYPE ole2_object,
ld_rc TYPE i,
lv_tabname TYPE dd03m-tabname.
* Makro für Fehlerbehandlung der Methods
DEFINE m_message.
CASE sy-subrc.
WHEN 0.
WHEN 1.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
WHEN OTHERS. RAISE upload_ole.
ENDCASE.
END-OF-DEFINITION.
* Get TAB-sign for separation of fields
CLASS cl_abap_char_utilities DEFINITION LOAD.
ld_separator = cl_abap_char_utilities=>horizontal_tab.
* open file in Excel
IF application-header = space OR application-handle = -1.
CREATE OBJECT application 'Excel.Application'.
m_message.
ENDIF.
CALL METHOD OF application 'Workbooks' = workbook.
m_message.
CALL METHOD OF workbook 'Open' EXPORTING #1 = p_file.
m_message.
* set property of application 'Visible' = 1.
* m_message.
**********************************************************************
DO 8 TIMES.
DATA(lv_index) = sy-index.
CASE lv_index .
WHEN 1. sheet_no = sht_task . lv_tabname = 'TASK'.
WHEN 2. sheet_no = sht_allc . lv_tabname = 'MATERIALTASKALLOCATION'.
WHEN 3. sheet_no = sht_seqn . lv_tabname = 'SEQUENCE'.
WHEN 4. sheet_no = sht_oprt . lv_tabname = 'OPERATION'.
WHEN 5. sheet_no = sht_subo . lv_tabname = 'SUBOPERATION'.
WHEN 6. sheet_no = sht_comp . lv_tabname = 'COMPONENTALLOCATION'.
WHEN 7. sheet_no = sht_insp . lv_tabname = 'INSPCHARACTERISTIC'.
WHEN 8. sheet_no = sht_prt . lv_tabname = 'PRODUCTIONRESOURCE'.
ENDCASE.
CHECK sheet_no GT 0.
CLEAR: intern[], excel_tab_sheet[].
*ACTIVATE THE SELECTED SHEET
CALL METHOD OF application 'Worksheets' = worksheet EXPORTING #1 = sheet_no.
m_message.
CALL METHOD OF worksheet 'Activate'.
m_message.
GET PROPERTY OF application 'ACTIVESHEET' = worksheet.
m_message.
DO. "Read the data in packages of 65.000 rows
DATA(lv_end_row) = 65000 * sy-index .
DATA(lv_beg_row) = 65000 * ( sy-index - 1 ) + 1 .
cl_progress_indicator=>progress_indicate(
i_text = |Reading: Sheet { sheet_no }, Lines { lv_beg_row }->{ lv_end_row }|
i_output_immediately = abap_true ).
* mark whole spread sheet
CALL METHOD OF worksheet 'Cells' = h_cell EXPORTING #1 = lv_beg_row #2 = i_beg_col.
m_message.
CALL METHOD OF worksheet 'Cells' = h_cell1 EXPORTING #1 = lv_end_row #2 = i_end_col.
m_message.
CALL METHOD OF worksheet 'RANGE' = range EXPORTING #1 = h_cell #2 = h_cell1.
m_message.
CALL METHOD OF range 'SELECT'.
m_message.
* copy marked area (whole spread sheet) into Clippboard
CALL METHOD OF range 'COPY'.
m_message.
DO 5 TIMES.
CLEAR excel_tab.
cl_gui_frontend_services=>clipboard_import( IMPORTING data = excel_tab ). "read clipboard
IF excel_tab IS NOT INITIAL.
EXIT .
ENDIF.
WAIT UP TO 1 SECONDS.
ENDDO.
IF excel_tab[] IS INITIAL.
* quit Excel and free ABAP Object - unfortunately, this does not kill
* the Excel process
CALL METHOD OF application 'QUIT'.
m_message.
* >>>>> Begin of change note 575877
* to kill the Excel process it's necessary to free all used objects
FREE OBJECT h_cell. m_message.
FREE OBJECT h_cell1. m_message.
FREE OBJECT range. m_message.
FREE OBJECT worksheet. m_message.
FREE OBJECT workbook. m_message.
FREE OBJECT application. m_message.
MESSAGE |Issue on reading from clipboard for { sheet_no }. sheet, try again.|
TYPE 'E'.
ENDIF.
DELETE excel_tab WHERE line CO |{ ld_separator } |. "# (seperator) and Space
IF excel_tab IS INITIAL. "Sheet completed
EXIT .
ENDIF.
APPEND LINES OF excel_tab TO excel_tab_sheet.
ENDDO.
cl_progress_indicator=>progress_indicate(
i_text = |Converting Sheet { sheet_no } to { lv_tabname } table. ({ lines( excel_tab_sheet ) } rows)|
i_output_immediately = abap_true ).
PERFORM z_separated_to_intern_convert TABLES excel_tab_sheet intern[] USING ld_separator.
PERFORM fill_bapi_tables TABLES intern[] USING lv_tabname .
ENDDO.
**********************************************************************
"Clear Clipboard
DO 10 TIMES.
CLEAR excel_tab.
cl_gui_frontend_services=>clipboard_export( IMPORTING data = excel_tab CHANGING rc = ld_rc ) .
CLEAR excel_tab.
cl_gui_frontend_services=>clipboard_import( IMPORTING data = excel_tab ). "read clipboard
IF excel_tab IS INITIAL.
EXIT .
ENDIF.
WAIT UP TO 1 SECONDS.
ENDDO.
* quit Excel and free ABAP Object - unfortunately, this does not kill
* the Excel process
CALL METHOD OF application 'QUIT'.
m_message.
* >>>>> Begin of change note 575877
* to kill the Excel process it's necessary to free all used objects
FREE OBJECT h_cell. m_message.
FREE OBJECT h_cell1. m_message.
FREE OBJECT range. m_message.
FREE OBJECT worksheet. m_message.
FREE OBJECT workbook. m_message.
FREE OBJECT application. m_message.
* <<<<< End of change note 575877
**********************************************************************
**********************************************************************
ENDFORM. " ZALSM_EXCEL
**********************************************************************
*--------------------------------------------------------------------*
**********************************************************************
*&---------------------------------------------------------------------*
*& Form CHANGE_TEXTS
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM change_texts .
tit1 = 'Path of the Excel file' .
tit2 = 'Excel Sheet Mapping. Enter the related sheet number of the excel'.
tit3 = 'Excel Format Defination. Excel row numbers of the Technical Names and Data Fields'.
tit4 = 'Other Parameters'.
%_p_file_%_app_%-text = 'File Name'.
%_sht_task_%_app_%-text = 'Task List Header'.
%_sht_allc_%_app_%-text = 'Material Task List Assignment'.
%_sht_seqn_%_app_%-text = 'Task List Sequences'.
%_sht_oprt_%_app_%-text = 'Operations'.
%_sht_subo_%_app_%-text = 'Sub operations'.
%_sht_comp_%_app_%-text = 'Component Allocation'.
%_sht_insp_%_app_%-text = 'Inspection Characteristics'.
%_sht_prt_%_app_%-text = 'Production Resource Tools'.
%_p_hdrrow_%_app_%-text = 'Row for BAPI field names'.
%_p_dstrow_%_app_%-text = 'First Data Row'.
%_p_updtsk_%_app_%-text = 'Run BAPI in update task'.
%_p_bapitq_%_app_%-text = 'Task Qty for each bapi Run'.
%_r_plnnr_%_app_%-text = 'Task filter'.
ENDFORM. " CHANGE_TEXTS
FORM z_separated_to_intern_convert TABLES i_tab TYPE ty_t_sender
i_intern TYPE lty_t_itab
USING i_separator TYPE c.
DATA: l_sic_tabix LIKE sy-tabix,
l_sic_col TYPE kcd_ex_col.
DATA: l_fdpos LIKE sy-fdpos.
* REFRESH i_intern.
LOOP AT i_tab.
l_sic_tabix = sy-tabix.
l_sic_col = 0.
WHILE i_tab CA i_separator.
l_fdpos = sy-fdpos.
l_sic_col = l_sic_col + 1.
PERFORM z_line_to_cell_separat TABLES i_intern
USING i_tab l_sic_tabix l_sic_col
i_separator l_fdpos.
ENDWHILE.
IF i_tab <> space.
CLEAR i_intern.
i_intern-row = l_sic_tabix.
i_intern-col = l_sic_col + 1.
i_intern-value = i_tab.
APPEND i_intern.
ENDIF.
ENDLOOP.
ENDFORM. " SEPARATED_TO_INTERN_CONVERT
FORM z_line_to_cell_separat TABLES i_intern TYPE lty_t_itab
USING i_line
i_row LIKE sy-tabix
ch_cell_col TYPE kcd_ex_col
i_separator TYPE c
i_fdpos LIKE sy-fdpos.
DATA: l_string TYPE ty_s_senderline.
DATA l_sic_int TYPE i.
CLEAR i_intern.
l_sic_int = i_fdpos.
i_intern-row = i_row.
l_string = i_line.
i_intern-col = ch_cell_col.
* csv Dateien mit separator in Zelle: --> ;"abc;cd";
IF ( i_separator = ';' OR i_separator = ',' ) AND
l_string(1) = gc_esc.
PERFORM line_to_cell_esc_sep USING l_string
l_sic_int
i_separator
i_intern-value.
ELSE.
IF l_sic_int > 0.
i_intern-value = i_line(l_sic_int).
ENDIF.
ENDIF.
IF l_sic_int > 0.
APPEND i_intern.
ENDIF.
l_sic_int = l_sic_int + 1.
i_line = i_line+l_sic_int.
ENDFORM.2. Create the Function Module ZPP_000_BAPI_ROUTING_CREATE in tcode SE37.
FUNCTION ZPP_BAPI_ROUTING_CREATE .
*"----------------------------------------------------------------------
*"*"Local Interface:
*" IMPORTING
*" REFERENCE(IV_BAPITQ) TYPE NUMC10
*" TABLES
*" TSK STRUCTURE BAPI1012_TSK_C
*" MTK STRUCTURE BAPI1012_MTK_C
*" SEQ STRUCTURE BAPI1012_SEQ_C
*" OPR STRUCTURE BAPI1012_OPR_C
*" SBO STRUCTURE BAPI1012_SUB_OPR_C
*" RFO STRUCTURE BAPI1012_REF_OPR_C
*" WCR STRUCTURE BAPI1012_WC_REF_OPR_C
*" COM STRUCTURE BAPI1012_COM_C
*" PRT STRUCTURE BAPI1012_PRT_C
*" CHA STRUCTURE BAPI1012_CHA_C
*" TXT STRUCTURE BAPI1012_TXT_HDR_C
*" ET_RETURN STRUCTURE BAPIRET2
*"----------------------------------------------------------------------
DATA: lt_tsk TYPE TABLE OF bapi1012_tsk_c,
lt_mtk TYPE TABLE OF bapi1012_mtk_c,
lt_seq TYPE TABLE OF bapi1012_seq_c,
lt_opr TYPE TABLE OF bapi1012_opr_c,
lt_sbo TYPE TABLE OF bapi1012_sub_opr_c,
lt_rfo TYPE TABLE OF bapi1012_ref_opr_c,
lt_wcr TYPE TABLE OF bapi1012_wc_ref_opr_c,
lt_com TYPE TABLE OF bapi1012_com_c,
lt_prt TYPE TABLE OF bapi1012_prt_c,
lt_cha TYPE TABLE OF bapi1012_cha_c,
lt_txt TYPE TABLE OF bapi1012_txt_hdr_c,
lt_return TYPE TABLE OF bapiret2 WITH HEADER LINE,
lv_group TYPE bapi1012_tsk_c-task_list_group,
lv_groupcounter TYPE bapi1012_tsk_c-group_counter,
lv_testrun TYPE bapiflag,
lr_plnnr TYPE RANGE OF plko-plnnr.
CHECK tsk[] IS NOT INITIAL.
SORT: tsk BY task_list_group group_counter,
mtk BY task_list_group group_counter,
seq BY task_list_group group_counter sequence_no,
opr BY task_list_group group_counter sequence_no activity,
sbo BY task_list_group group_counter sequence_no activity sub_activity,
rfo BY task_list_group group_counter sequence_no activity,
wcr BY task_list_group group_counter sequence_no activity,
com BY task_list_group group_counter sequence_no activity,
prt BY task_list_group group_counter sequence_no activity item_no_of_production_resource,
cha BY task_list_group group_counter sequence_no activity,
txt BY task_list_group group_counter sequence_no activity sub_activity.
SELECT DISTINCT plnnr FROM plko INTO TABLE @DATA(lt_plko)
FOR ALL ENTRIES IN @tsk
WHERE plnnr EQ @tsk-task_list_group
AND plnty EQ 'N'.
SORT lt_plko BY plnnr.
LOOP AT tsk .
READ TABLE lt_plko TRANSPORTING NO FIELDS
WITH KEY plnnr = tsk-task_list_group BINARY SEARCH.
IF sy-subrc IS INITIAL.
DELETE tsk.
ENDIF.
ENDLOOP.
CHECK tsk[] IS NOT INITIAL.
DATA(lt_tlg) = tsk[]. "task_list_group
SORT lt_tlg BY task_list_group.
DELETE ADJACENT DUPLICATES FROM lt_tlg COMPARING task_list_group.
DO.
DATA(lv_lines_end) = iv_bapitq * sy-index .
DATA(lv_lines_beg) = iv_bapitq * ( sy-index - 1 ) + 1 .
IF lv_lines_end GT lines( lt_tlg ).
lv_lines_end = lines( lt_tlg ).
ENDIF.
IF lv_lines_beg GT lines( lt_tlg ).
EXIT .
ENDIF.
CLEAR: lv_group, lv_groupcounter, lt_return, lt_return[].
lr_plnnr = VALUE #( FOR ls_wa1 IN lt_tlg FROM lv_lines_beg TO lv_lines_end
( sign = 'I' option = 'EQ' low = ls_wa1-task_list_group ) ).
CHECK lr_plnnr[] IS NOT INITIAL.
IF sy-batch IS INITIAL.
cl_progress_indicator=>progress_indicate(
i_text = |Processed: { lv_lines_beg }/{ lines( lt_tlg ) }|
i_output_immediately = abap_true ).
ENDIF.
SORT lr_plnnr.
DELETE ADJACENT DUPLICATES FROM lr_plnnr COMPARING ALL FIELDS.
lt_tsk = VALUE #( FOR ls_wa1 IN tsk WHERE ( task_list_group IN lr_plnnr ) ( ls_wa1 ) ) .
lt_mtk = VALUE #( FOR ls_wa2 IN mtk WHERE ( task_list_group IN lr_plnnr ) ( ls_wa2 ) ) .
lt_seq = VALUE #( FOR ls_wa3 IN seq WHERE ( task_list_group IN lr_plnnr ) ( ls_wa3 ) ) .
lt_opr = VALUE #( FOR ls_wa4 IN opr WHERE ( task_list_group IN lr_plnnr ) ( ls_wa4 ) ) .
lt_sbo = VALUE #( FOR ls_wa5 IN sbo WHERE ( task_list_group IN lr_plnnr ) ( ls_wa5 ) ) .
lt_rfo = VALUE #( FOR ls_wa6 IN rfo WHERE ( task_list_group IN lr_plnnr ) ( ls_wa6 ) ) .
lt_wcr = VALUE #( FOR ls_wa7 IN wcr WHERE ( task_list_group IN lr_plnnr ) ( ls_wa7 ) ) .
lt_com = VALUE #( FOR ls_wa8 IN com WHERE ( task_list_group IN lr_plnnr ) ( ls_wa8 ) ) .
lt_prt = VALUE #( FOR ls_wa9 IN prt WHERE ( task_list_group IN lr_plnnr ) ( ls_wa9 ) ) .
lt_cha = VALUE #( FOR ls_wa10 IN cha WHERE ( task_list_group IN lr_plnnr ) ( ls_wa10 ) ) .
lt_txt = VALUE #( FOR ls_wa11 IN txt WHERE ( task_list_group IN lr_plnnr ) ( ls_wa11 ) ) .
CALL FUNCTION 'BAPI_ROUTING_CREATE'
EXPORTING
testrun = lv_testrun
* PROFILE = 'PI01'
* BOMUSAGE = '1'
* APPLICATION = 'PP01'
IMPORTING
group = lv_group
groupcounter = lv_groupcounter
TABLES
task = lt_tsk
materialtaskallocation = lt_mtk
sequence = lt_seq
operation = lt_opr
suboperation = lt_sbo
referenceoperation = lt_rfo
workcenterreference = lt_wcr
componentallocation = lt_com
productionresource = lt_prt
inspcharacteristic = lt_cha
textallocation = lt_txt
* text = text[]
return = lt_return[]
EXCEPTIONS
error_message = 1
OTHERS = 2.
LOOP AT lt_return WHERE type CA 'EAX'. ENDLOOP.
IF sy-subrc IS INITIAL.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'.
ELSE.
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT' EXPORTING wait = 'X'.
ENDIF.
cl_progress_indicator=>progress_indicate(
i_text = |Processed: { lv_lines_end }/{ lines( lt_tlg ) }|
i_output_immediately = abap_true ).
APPEND LINES OF lt_return TO et_return.
IF sy-batch IS NOT INITIAL.
WRITE:/ lr_plnnr[ 1 ]-low, lr_plnnr[ lines( lr_plnnr[] ) ]-low.
LOOP AT lt_return INTO DATA(ls_return) WHERE type CA 'EAX'.
WRITE:/ ls_return-type, ls_return-number, ls_return-id, '-', ls_return-message.
ENDLOOP.
ENDIF.
ENDDO.
ENDFUNCTION.Notes
- Excel upload is not stable. If program gets dump for any reason, your excel can stuck as open. You need to go to task manager and kill the backgourd excel file process.
- Program does not have a “Change mod”. If a task already exists (has PLKO records) the program will just skip it.
- If you want to change the routing, you can delete the entire Routing with CA98 easily and upload it again.
Rating: 0 / 5 (0 votes)
