SAP Process Automation – Your first simple Action Project: End to End

In this tutorial we will create a very basic Action Project for a simple REST API which will return the list of ToDos.

SAP S/4HANA Business Process Integration Certification Preparation Guide

The goal is to cover all the steps necessary to consume Actions in a Process, not to proivde a real Process use case.

Create BTP Destination

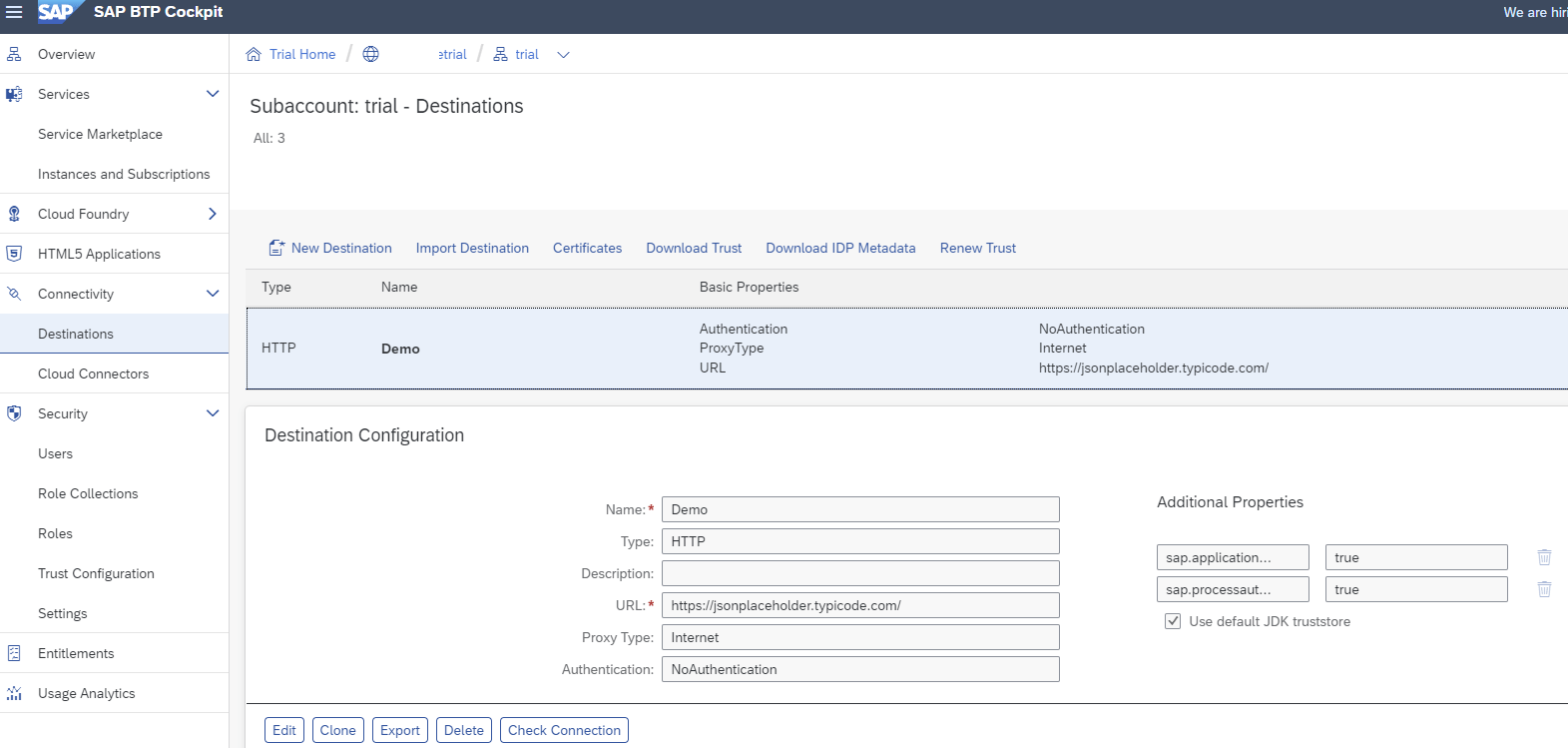

In the SAP BTP Cockpit, create a destination that will be used in the Action Editor to test the Action and in the Process execution.

Parameter	Value
URL	https://jsonplaceholder.typicode.com/
Additional Properties	sap.applicationdevelopment.actions.enabled = true
	sap.processautomation.enabled = true

Configure Destination for SAP Process Automation

To allow the usage of the BTP destination, you have to add the Destination in SAP Process Automation.

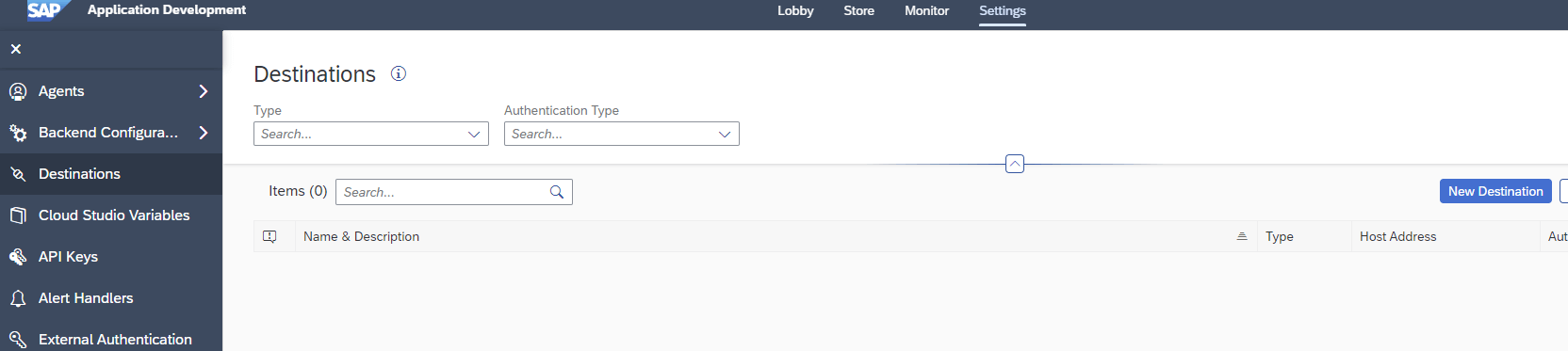

In the Settings or SAP Process Automation, select Destinations

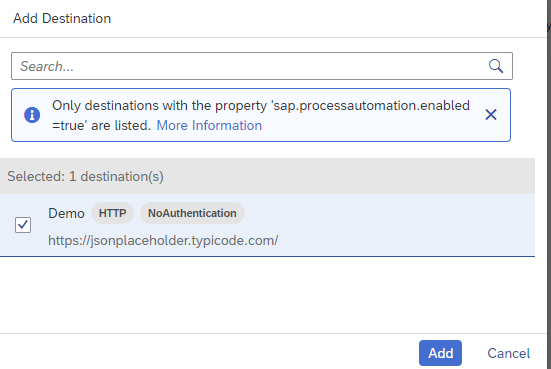

Click New Destination

select the Destination from the list and press Add

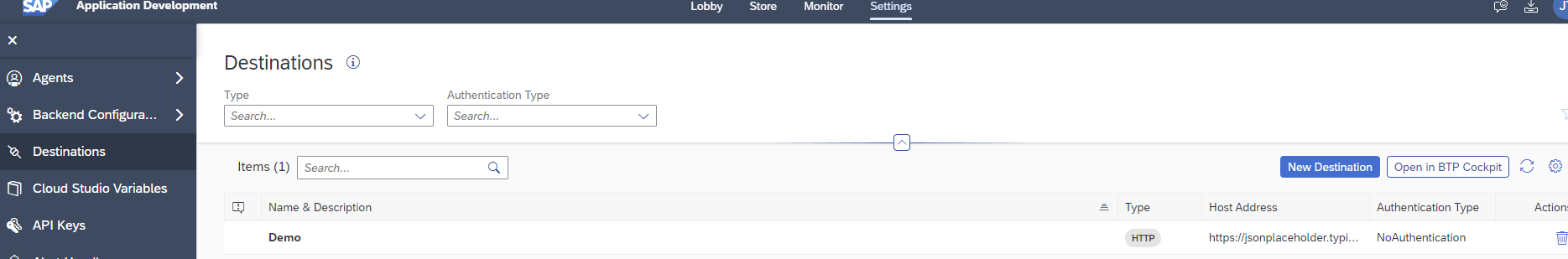

The destination is now added to the lst and can be used in SAP Process Automation

Create Action Project

In this sample we will create a simple Action Project for a REST API.
We will not change input/output parameters or customize the action.

Important: You need an Open API specification for your API to create Actions

For this example, just copy the definition from here to a local text file called ToDoAPI.json and save the file. We will use the file to create the Action Project with one Action.

{ "openapi": "3.0.0",
    "info": {
        "description": "This is a fake API of todo list",
        "title": "fake.todo",
        "version": "1.0.0"
    },
    "servers": [ { "url": "https://jsonplaceholder.typicode.com/" } ],
    "paths": {
        "/todos": {
            "get": {
                "summary": "get list of todos",
                "description": "get list of todos",
                "operationId": "get.todos",
                "responses": {
                    "200": {
                        "description": "Successful response",
                        "content": {
                            "application/json": {
                                "schema": {
                                    "type": "array",
                                    "items": {
                                        "properties": {
                                            "userId": { "type": "number" },
                                            "id": { "type": "number" },
                                            "title": { "type": "string" },
                                            "completed": { "type": "boolean" }
} } } } } } } } } } }

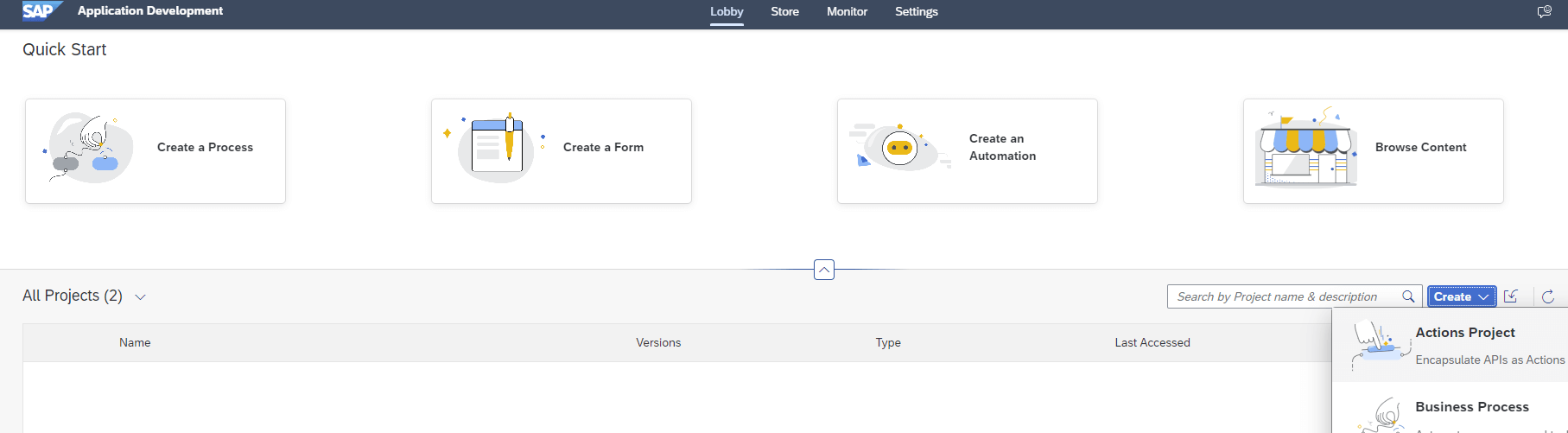

In the Lobby of SAP Process Automation, create an Action Project.

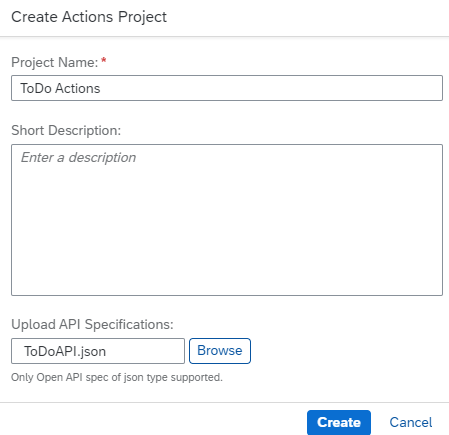

Specify the name ToDo Actions and upload the API spec ToDoAPI.json, click Create

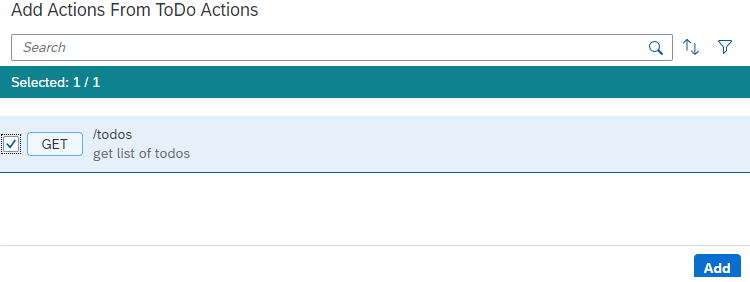

Select the actions from the list, click Add

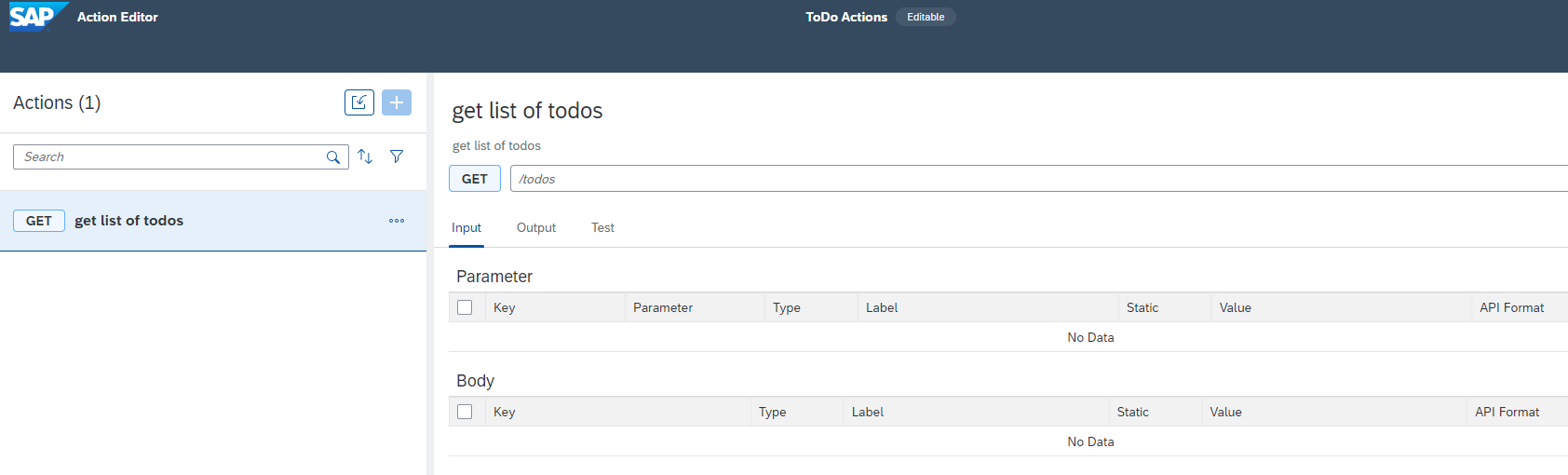

Your Action Project will contain one action

Test an Action

You can test the execution of your action in the Action Editor. Lets test the Action ‘get list of todos’.

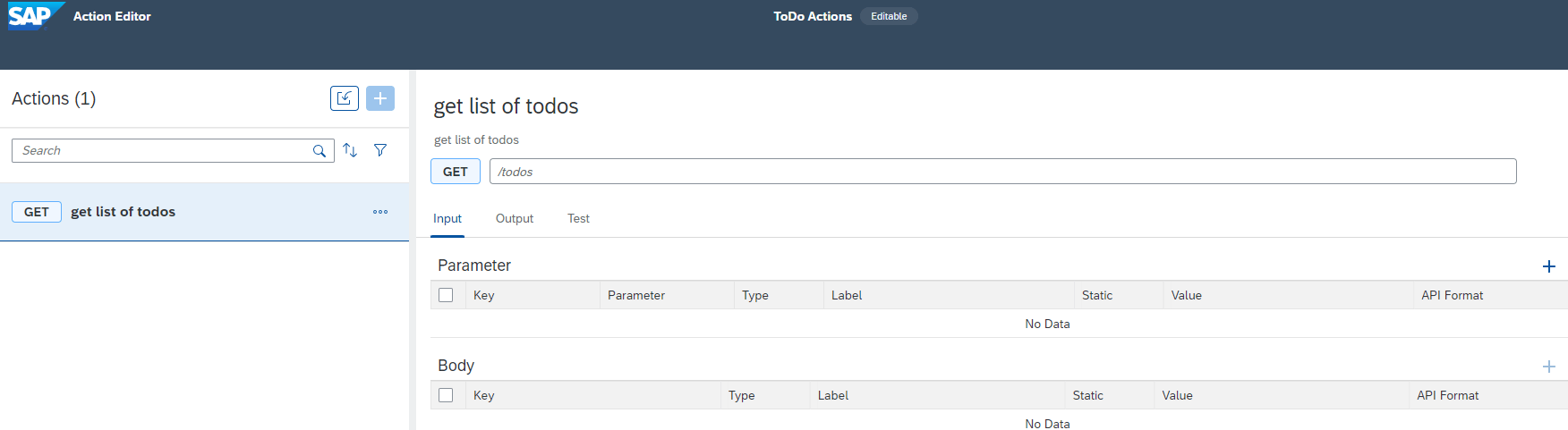

Select ‘get list of todos’ from the list, the action has no input parameters

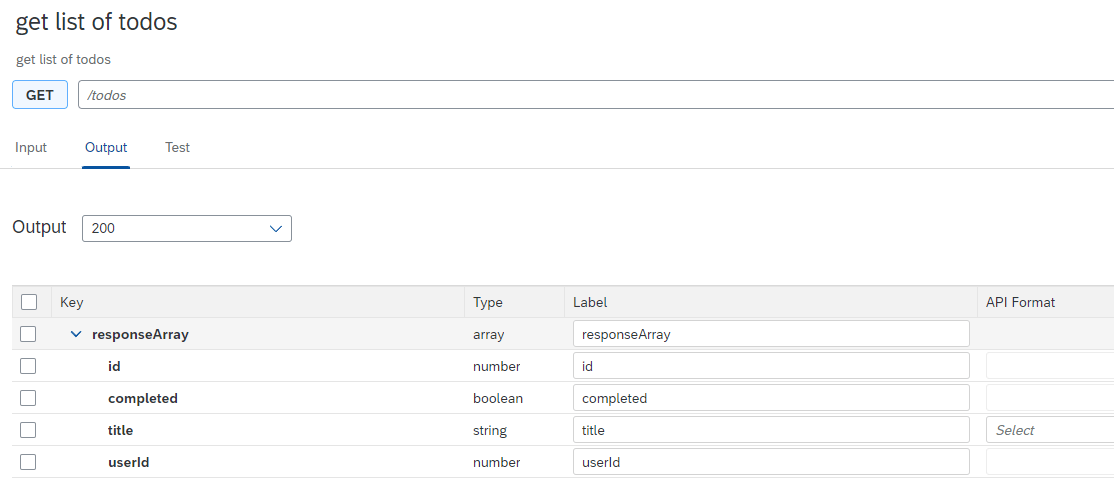

Select Tab Output, shows the fields returned when the action is executed

Select Tab Test, you can see the different options available to test an action.

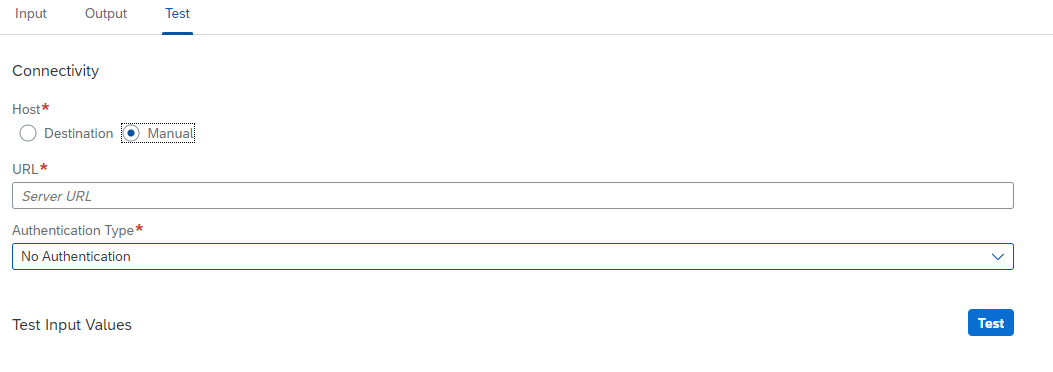

Connectivity Host allows you to test with an destination or Manual, you can enter the system details here.

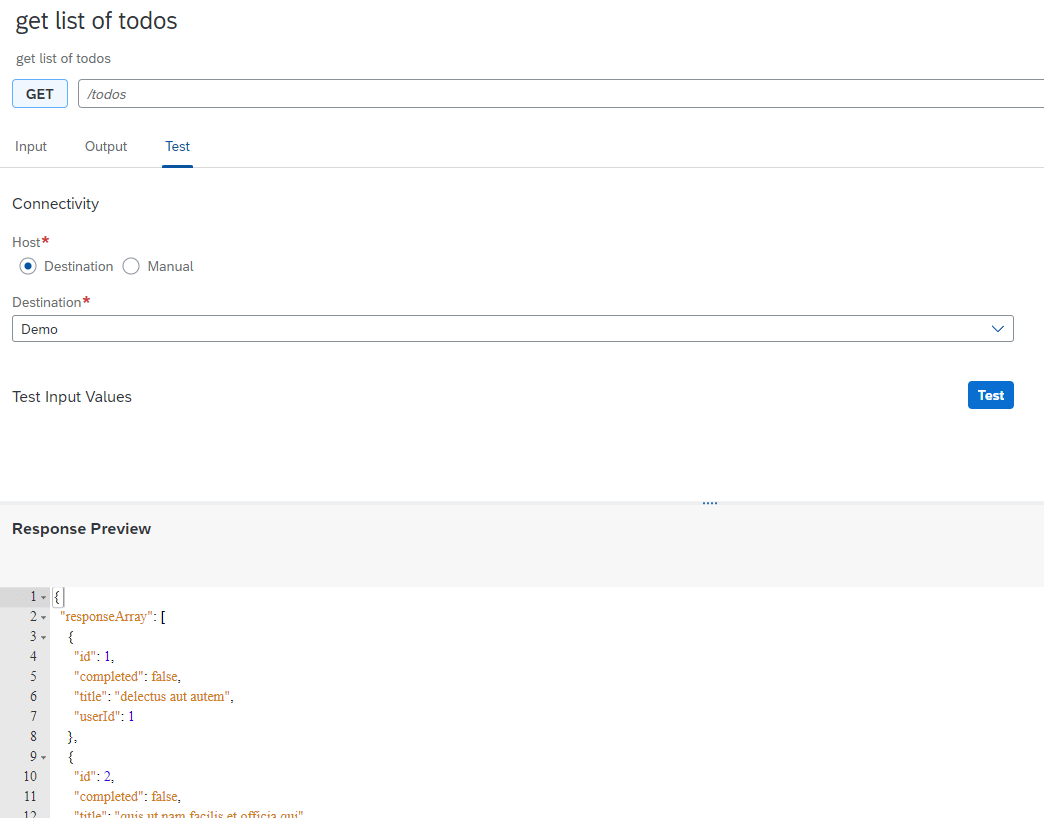

Select the destination Demo, click Test
The Response Preview will show the results

Release and Publish to Library

To be able to use the Action in a Process, we have to release and publish the Action Project.

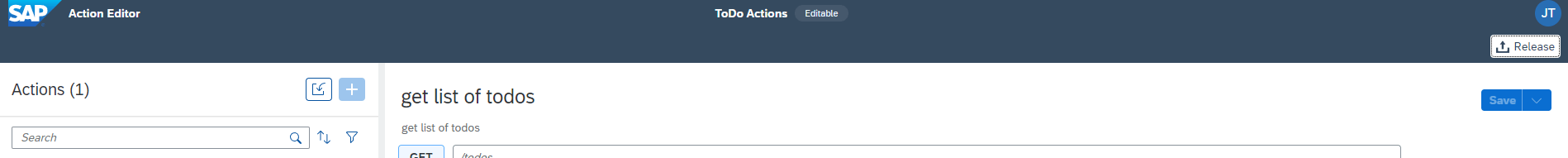

Click Release

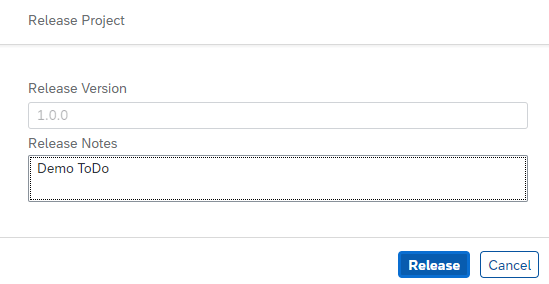

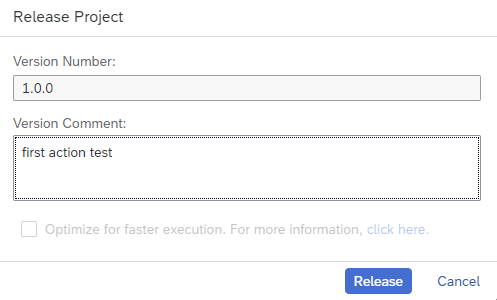

Provide release information, click Release

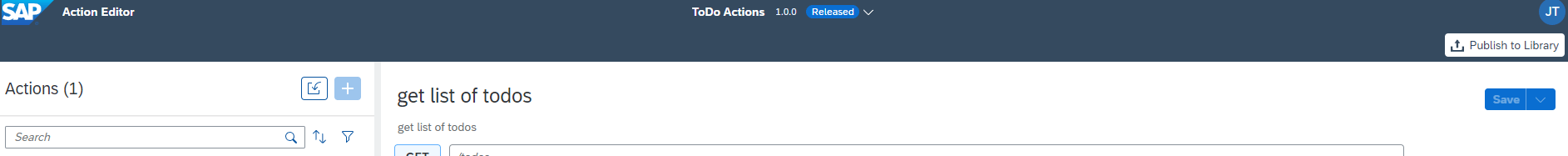

Click Publish to Library

On Publish Project, click Publish

Consumption in Process

Create Business Process and use an Action

From the Lobby select Create Process
Enter the Project Name, e.g. Demo Process and select Create
On the Create Process Dialog, enter the Process Name myActionProcess and select Create

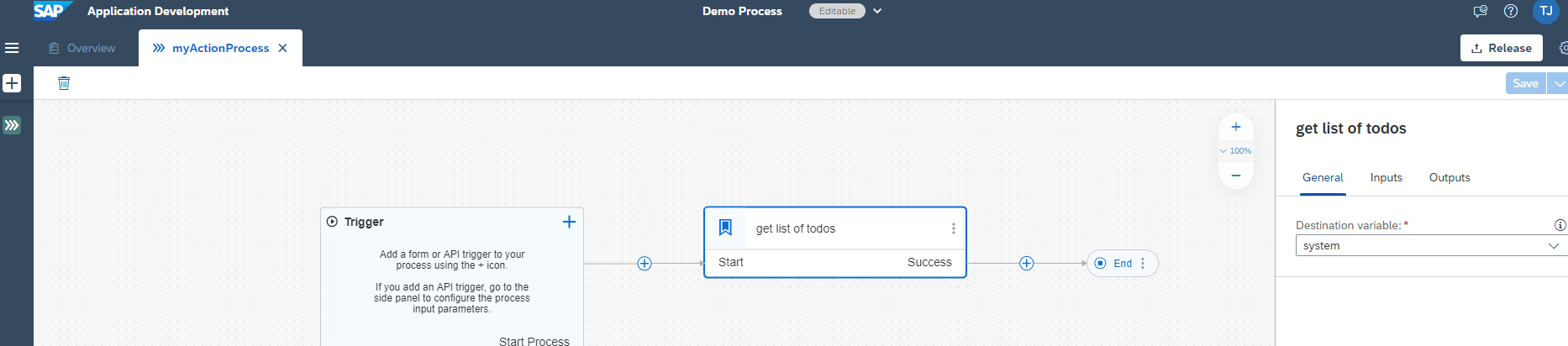

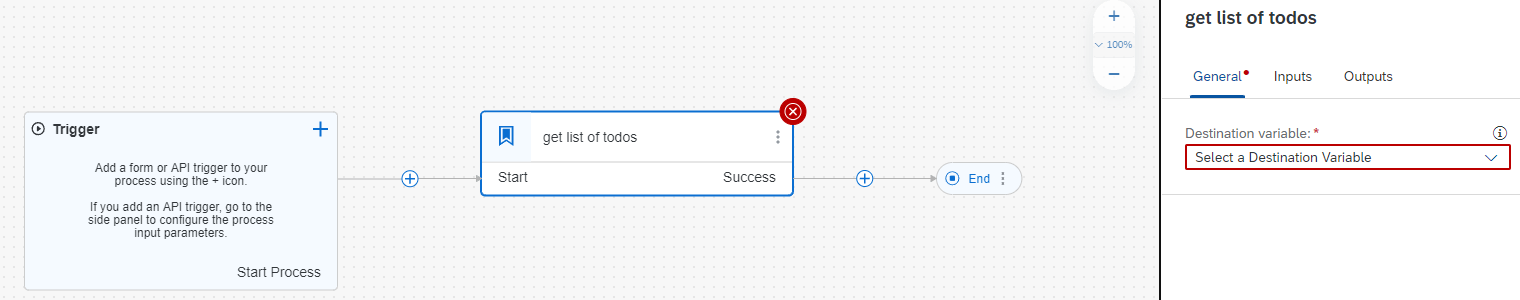

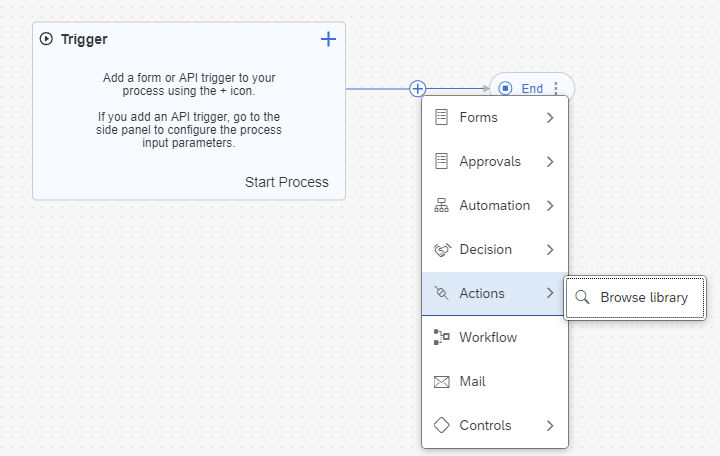

your canvas should look like here
