Quick Introduction –

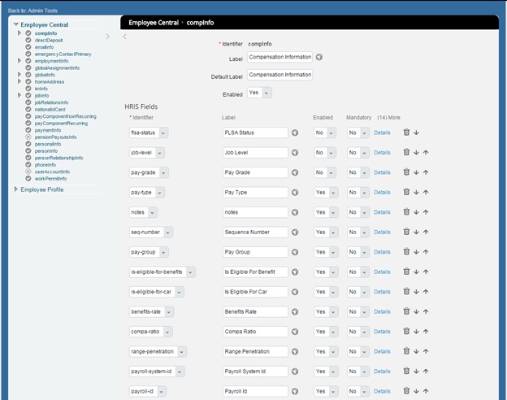

The Business Configuration UI (BCUI) under “Admin Tools>Company Settings>Manage Business Configuration” allows administrators to maintain certain aspects(common tasks) of Succession Data Model directly from Admin Tools with a user friendly screens instead of using data models(i.e XML tags and properties). Though the number of things that can be done using BCUI are limited, there are some pretty decent options that would let “Administrators” do without depending on SF Experts who have access to Provisioning. The following scenarios can be handled using BCUI –
- Changing Labels of fields under various portlets
- Adding new translations or Changing existing translations of fields under various portlets
- Adding custom fields
- Changing the display sequence of the fields
- Changing properties of fields(like making fields as editable or read-only; activating/enabling unused fields, making fields mandatory/non-mandatory, attaching picklists to the fields, setting maximum length of the fields, setting “Allow import” flag to the fields, etc)
- Adding “HRIS Sync Mapping” to the fields(Note: There are certain limitations which would be discussed in the later part of this blog)
- Adding “Trigger Rules” to the fields and person objects(HRIS Elements in XML – Portlets in plain language e.g. Compensation Information, Employment Information, etc)
Limitations –
1. BCUI is really a smart way to configure screens, in other words, BCUI is a better way to configure “Data Models” instead of using XML configuration (which seems to be like more of a technical approach than a user-friendly approach).As said in the introduction, the BCUI only lets us maintain Succession Data Model and Employee Profile; this tool currently doesn’t support “Corporate Data Model” or other data models, which to me is a big gap. I wish to use this Easy to use Screens (In near future SAP may migrate the existing corporate data model objects to MDF Objects [as it did for Cost Center recently], but still want all corporate data model objects [like Legal Entity, Business Unit, Division, Location, Department, etc] to be listed under the “Employee Profile” node) to configure all kinds of data models without opening XML files any more. If SAP-SF migrates completely to BCUI for configuration activity, there would be no headache of maintaining versions of XML files any more. Especially if you were making minor changes to the screen.

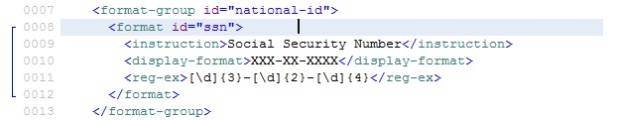

2. BCUI still doesn’t support certain XML Tags like “<format-group>”, “format”, “display-format” which can be done with ease using XML –
Though this is not a common scenario (where we add these kinds of data validations using XML Tags), I am definitely looking ahead for SAP-SF to introduce some kind of provision in BCUI to support these kind of unique XML Tags (either by extending by introducing few additional fields in the “Details” pop-up of the fields or by allowing us to maintain few XML tags manually using BCUI).
3. Though BCUI supports HRIS Sync to the HRIS fields that transports data from Employee Central to Employee profile, BCUI doesn’t support HRIS Sync mapping for Country specific fields of Succession Data Model. We would still have to rely on country specific succession data model (XML file based configuration) to achieve this mapping. I would expect to extend BCUI to support this missing functionality.

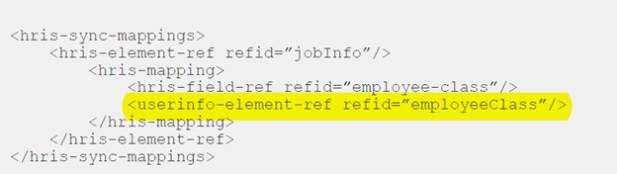

4. Userinfo-element aka User Info fields are user-defined fields in Employee Profile. BCUI currently doesn’t support HRIS Sync mapping of HRIS fields to
these User Info fields. We should still rely on traditional XML configuration to achieve this HRIS Sync mapping –
5. There could be a possible conflict between BCUI and XML Configuration. Let’s say, we enable BCUI using provisioning and we made the changes as
shown below –
Day 1: Download Succession data model
Day 2: Activate BCUI framework in provisioning
Day 3: Made couple of changes to “Employment Information” using BCUI.
Day 4: Upload Succession data model that was downloaded on Day 1
Result: You lose changes done on Day 3 using BCUI.
Not sure if I could call this point as a limitation, but it could create a possible conflict if one is not careful with the changes done using BCUI and upload/download process of XML Data models. I would heed the wonderful advice that was mentioned in the Implementation guide –
