Technical Setup guide for the Co-PIN Integration between SAP S/4HANA Cloud and SAP Cloud for Projects, Project Collaboration Service

Business Purpose and Flow

The integration allows you to integrate the SAP S/4 HANA Cloud with the application SAP Project Intelligence Network. With this integration, you connect with project owners, engineering service providers, contractors, subcontractors, and building material suppliers on a single BIM collaboration platform to eliminate waste and rework and increase productivity with the SAP Project Intelligence Network application.

SAP S/4HANA Cloud Private Edition Financial Accounting Certification Preparation Guide

• Cloud deployment
• Single repository of construction information
• Shared digital twin that supports open BIM standards
• Source of reusable operations information

Process Steps:

1. Configuration in S/4HANA Cloud
2. Configuration in SAP Cloud Integration
3. Configuration in SAP BTP Cockpit

A. Configuration in S/4HANA Cloud

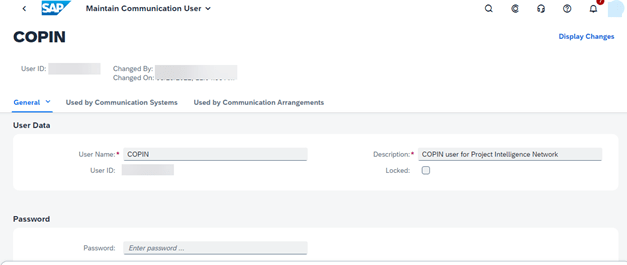

Step 1: Go to maintain communication user and create one communication user named as COPIN.

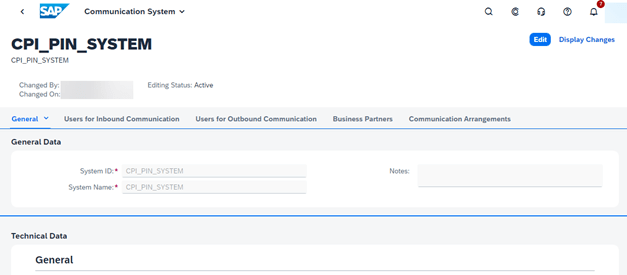

Step 2: Create one Communication system.

Step 3: Enter the host name and port no. Host name as S/4HC api url and port as 443.

Step 4: Add the new communication user in the inbound user.

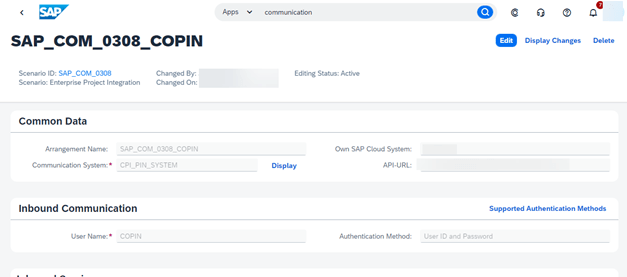

Step 5: Create communication arrangement (SAP_COM_0308) and add the communication system into it.

B. Configuration in SAP Cloud Integration

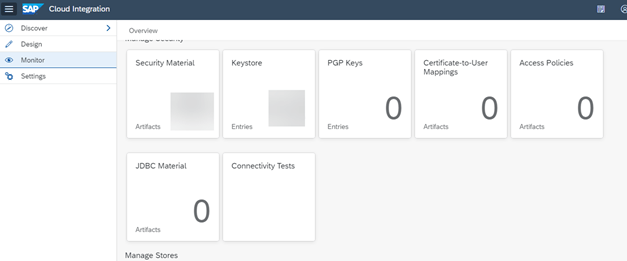

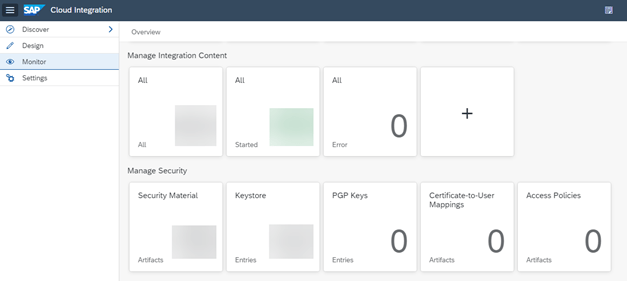

Step 1: Go to Cloud Integration and click on Monitor –> Security material.

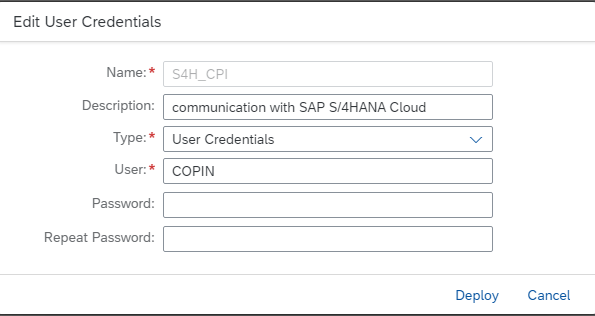

Step 2: Deploy the communication user details as S4H_CPI

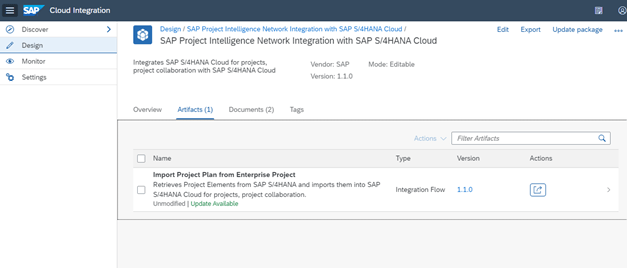

Step 3: Copy this package from Discover tab and then come in the design tab.

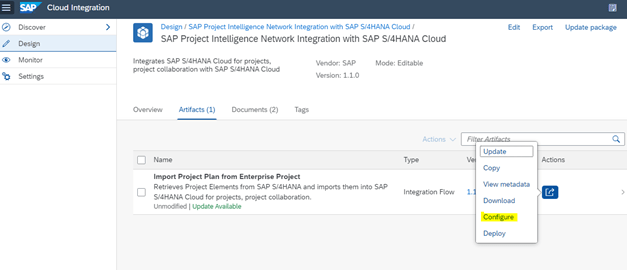

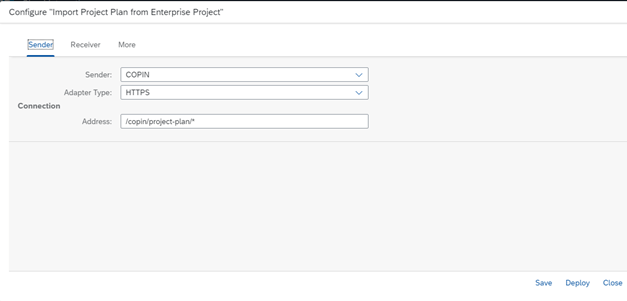

Step 4: Click on Actions-> Configure.

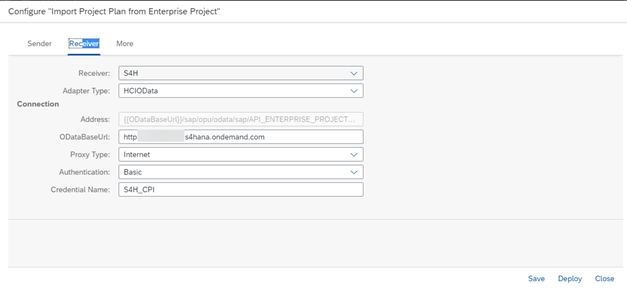

Step 5: Provide S/4Hana cloud url in the oDataBaseUrl and provide the S4 deployed credential name in credential part.

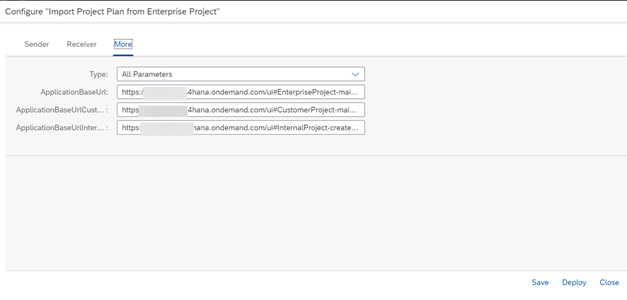

Step 6: In More section,

ApplicationBse URL : <S/4Hana Cloud url> + /ui#EnterpriseProject-maintain&/C_PPM_ProjectControlTP(ProjectUUID=guid'%projectUUID%',IsActiveEntity=true)

ApplicationBaseUrlCustomerProjects : : <S/4Hana Cloud url> +  /ui#CustomerProject-maintainCustomerProject&/Display/ProjEngagementsSet/%project%/?tab=infoTab

ApplicationBaseUrlInternalProjects : <S/4Hana Cloud url> +  /ui#InternalProject-createInternalProject&/Display/ProjEngagementsSet/%project%/?tab=infoTab

Save and deploy the package

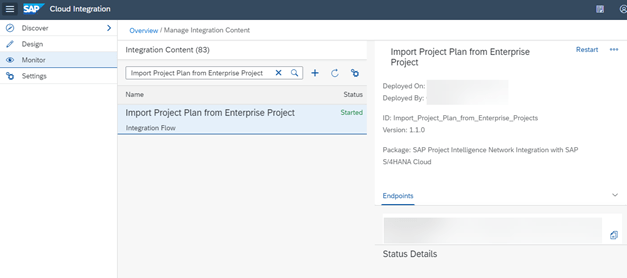

Step 7: Go to monitor –> Manage integration Content.

Step 8: Filter the i-flow name and take the endpoint url.

C. Configuration in SAP BTP Cockpit

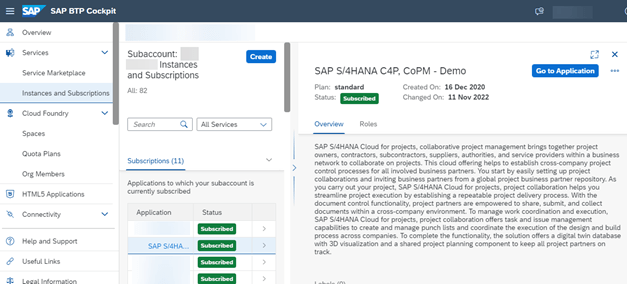

Step 1:Go to CF BTP account and create one subscription for “ SAP S/4HANA C4P, CoPM – Demo “ Service.

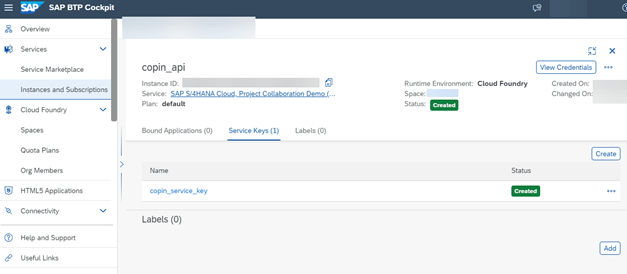

Step 2: Create instance of the service “SAP S/4HANA Cloud, Project Collaboration Demo” and create service key.

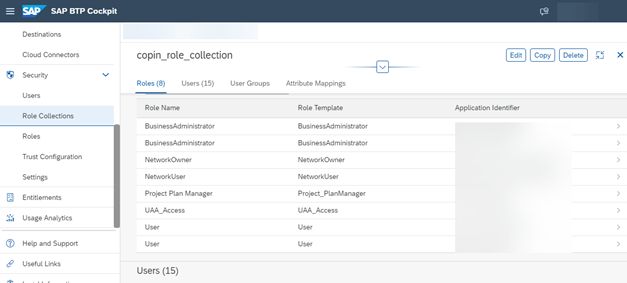

Step 3: Assign the roles to the user to access the pin tenant.

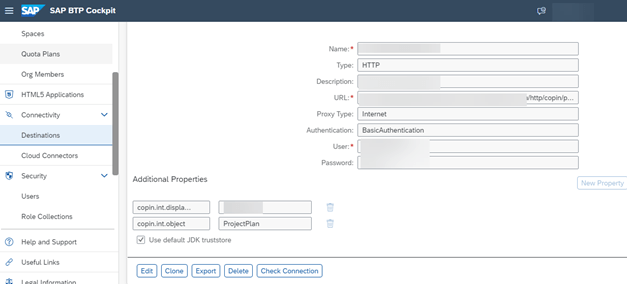

Step 4: Go to destinations and create one destination.

Name: <suitable name>

URL : <CPI end point url>

User: <p user details / Client key>

Password: <p user password/ Client Secret>

In Additional Properties,

copin.int.display_name : <suitable name>

copin.int.object: ProjectPlan

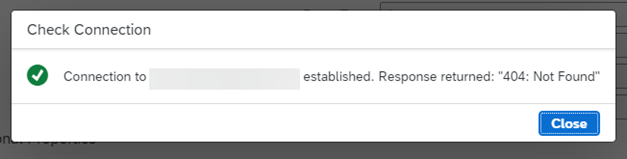

Now, save the destination and do check connection.

So, finally we have completed the integration setup.
