Prerequisite:
You have installed postman on your computer.

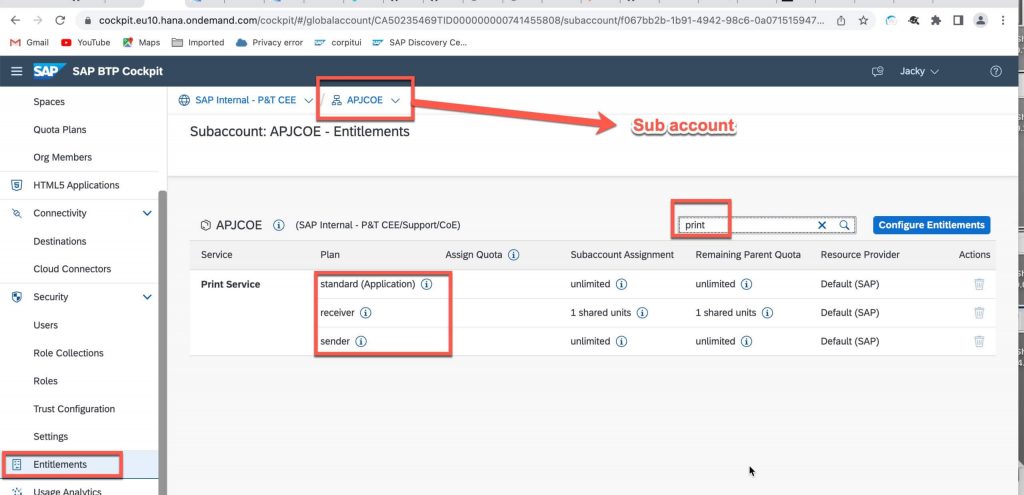

Step 1. Check entitlement in BTP cockpit in your sub-account, the following 3 printing service plans should be listed.
To do this, the role Subaccount Admin should be assigned to your user. If you can not find the following 3 print service plans, please contact your BTP customer success manager.

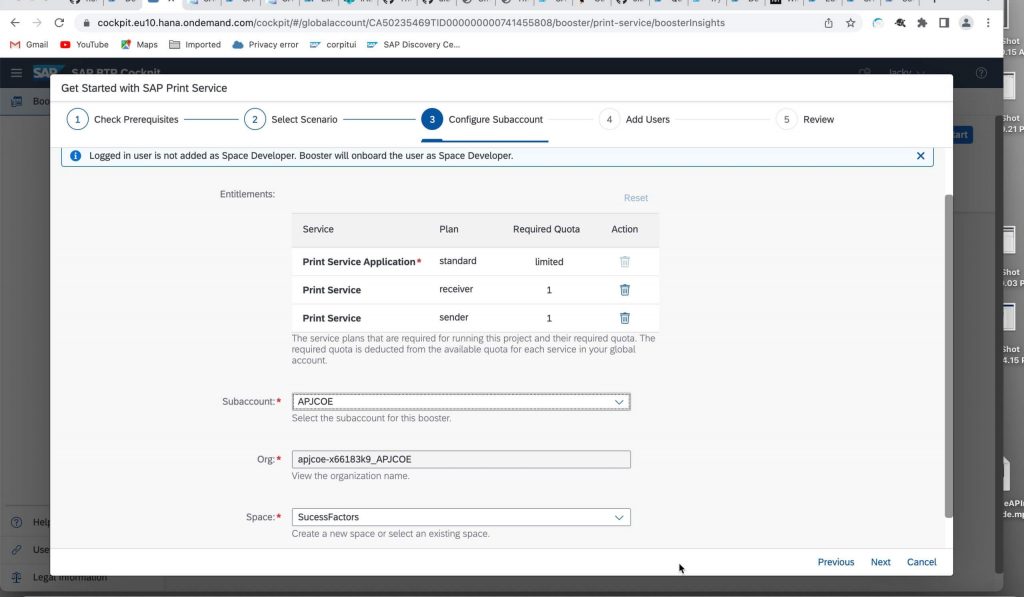

Step 2. Onboarding.

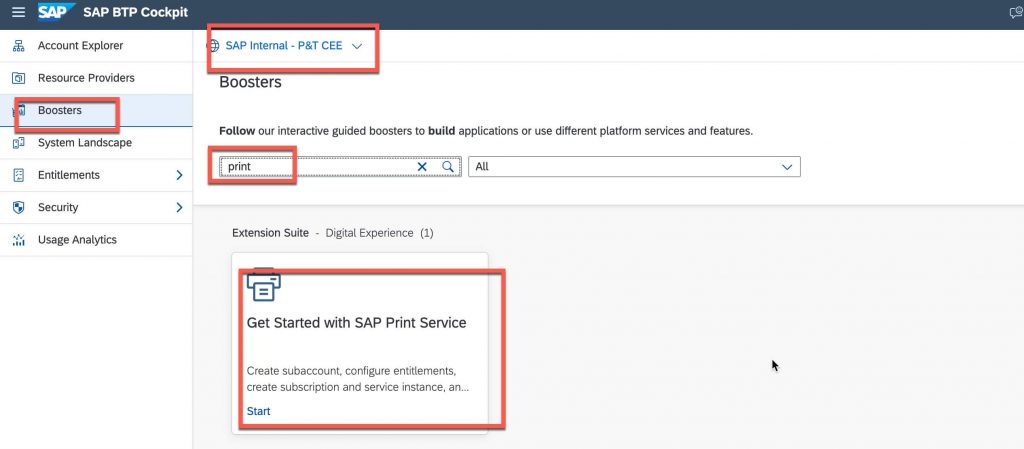

In this step you will create service instances for plan sender and receiver. Service keys for plan sender and receiver will be created. To take out this step you can use Booster from BTP cockpit in global account. Plan sender is used to upload document and create printing task. Plan receiver will be used by cloud printing manager to connect.

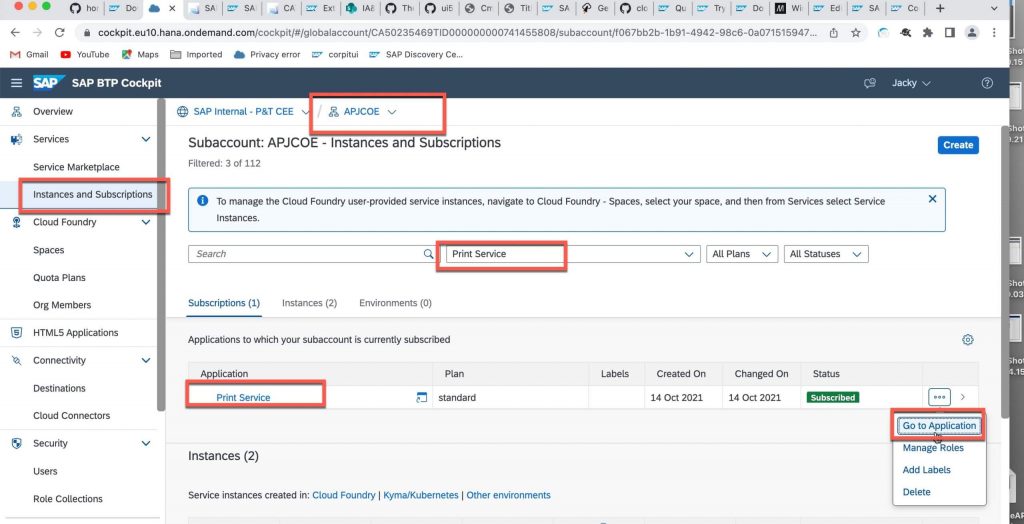

Step 3. Create subscription for print service plan standard configure authorization
You can following the document to create print service subscription.
For authorization configuration, you can follow the following documents:
Assigning Role Collections to Users

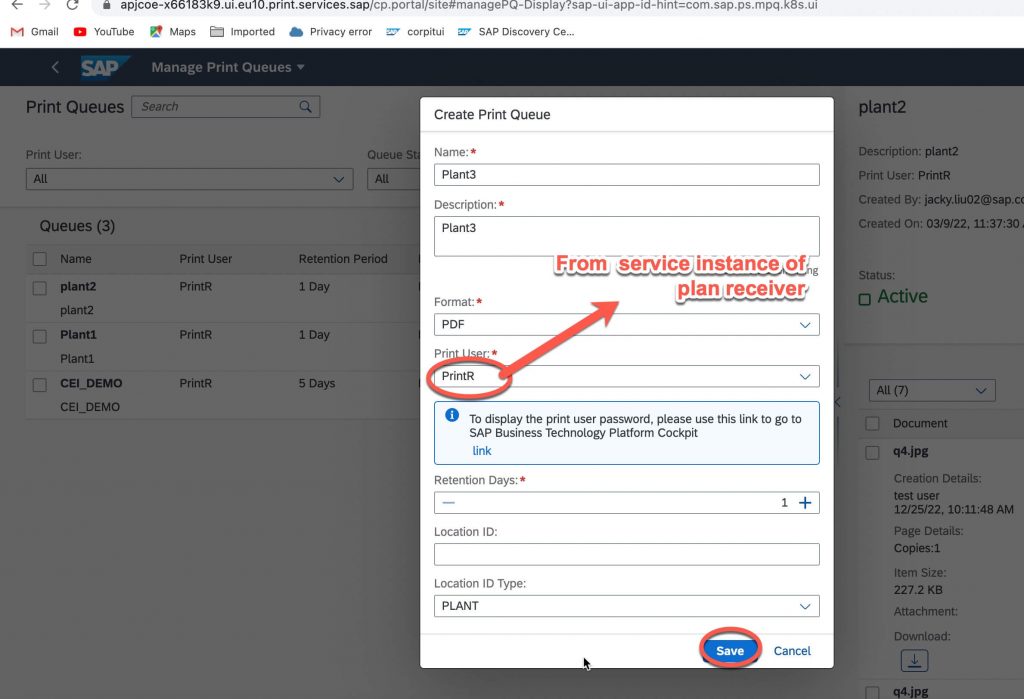

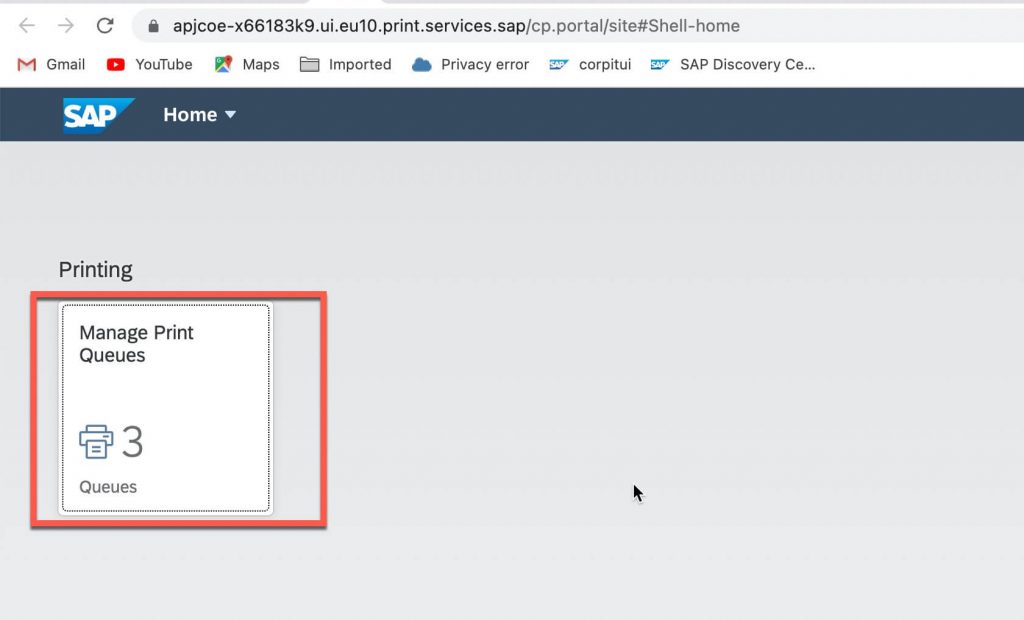

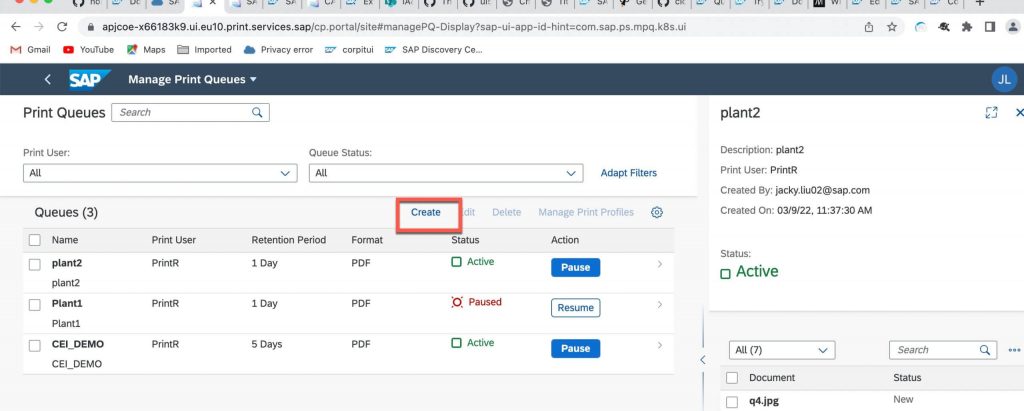

Step 3. Create printQ.

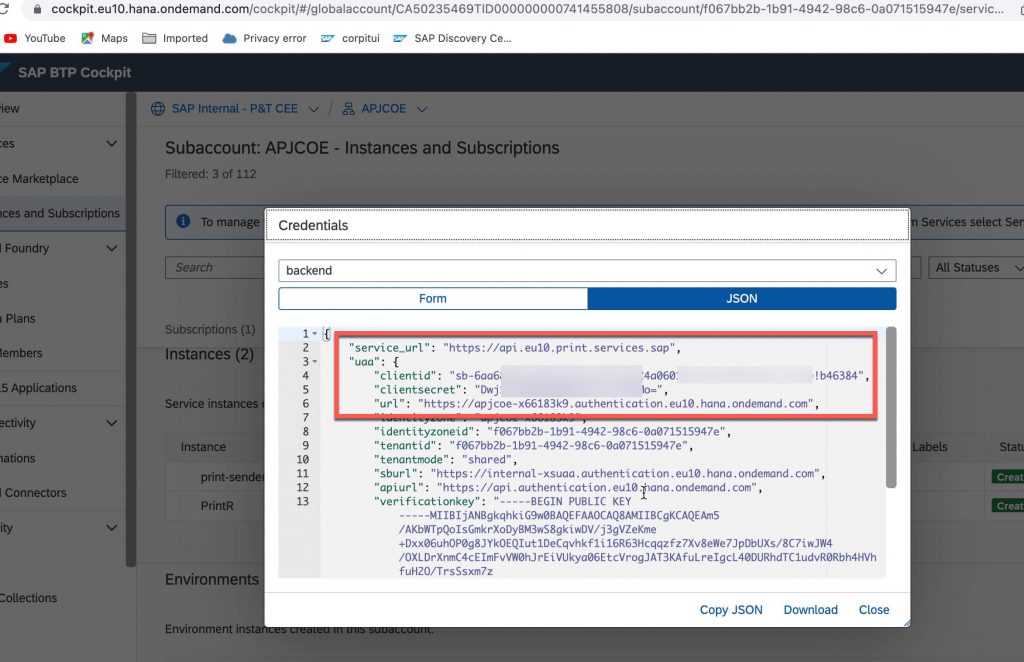

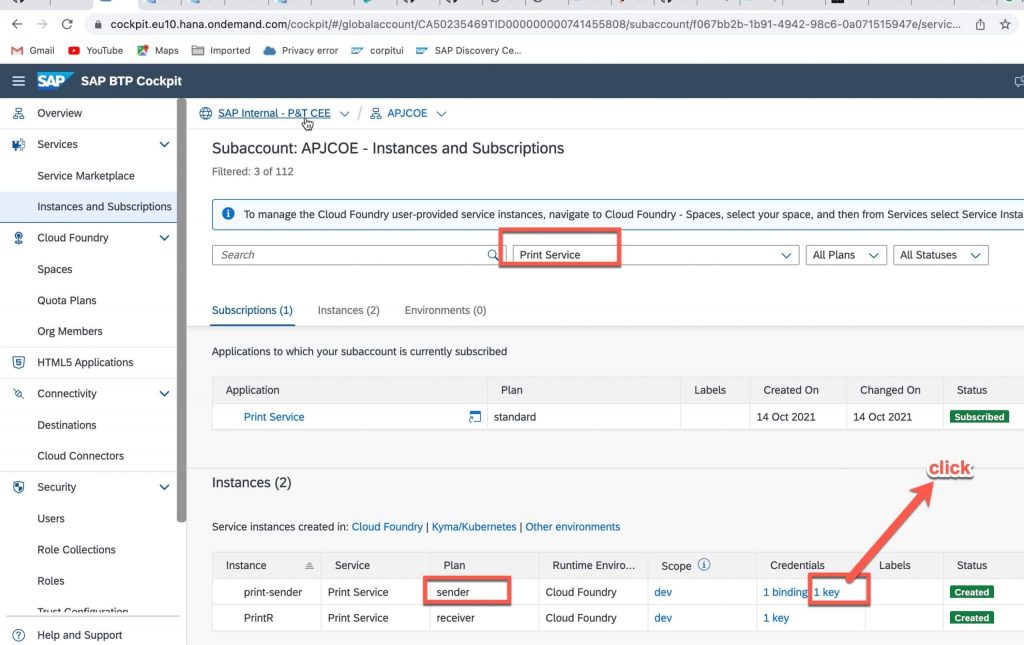

Step 4. Note down service key information of service instance of plan sender.
Note down the information in the red frame.
Step 5. Save postman collection content as a json file.
{
"info": {
"_postman_id": "43b9377d-9355-4e0b-bd4f-044c9deb6d9d",
"name": "print",
"schema": "https://schema.getpostman.com/json/collection/v2.1.0/collection.json"
},
"item": [
{
"name": "Step1 Get Token",
"event": [
{
"listen": "test",
"script": {
"exec": [
"pm.collectionVariables.set(\"bearToken\",\"Bearer \".concat(pm.response.json().access_token))"
],
"type": "text/javascript"
}
}
],
"request": {
"auth": {
"type": "basic",
"basic": [
{
"key": "password",
"value": "{{printclientsecret}}",
"type": "string"
},
{
"key": "username",
"value": "{{printclientkey}}",
"type": "string"
}
]
},
"method": "POST",
"header": [],
"body": {
"mode": "urlencoded",
"urlencoded": [
{
"key": "grant_type",
"value": "client_credentials",
"type": "default"
}
]
},
"url": {
"raw": "{{printtokenurl}}",
"host": [
"{{printtokenurl}}"
]
}
},
"response": []
},
{
"name": "Step2 Get PrintQ",
"event": [
{
"listen": "test",
"script": {
"exec": [
"pm.collectionVariables.set(\"printQ\",pm.response.json()[0].qname)"
],
"type": "text/javascript"
}
},
{
"listen": "prerequest",
"script": {
"exec": [
"pm.request.addHeader(\"Authorization\",pm.collectionVariables.get(\"bearToken\"));"
],
"type": "text/javascript"
}
}
],
"request": {
"auth": {
"type": "oauth2",
"oauth2": [
{
"key": "clientId",
"value": "{{printclientkey}}",
"type": "string"
},
{
"key": "accessTokenUrl",
"value": "{{printtokenurl}}",
"type": "string"
},
{
"key": "grant_type",
"value": "client_credentials",
"type": "string"
},
{
"key": "clientSecret",
"value": "{{printclientsecret}}",
"type": "string"
},
{
"key": "tokenName",
"value": "printkey",
"type": "string"
},
{
"key": "addTokenTo",
"value": "header",
"type": "string"
},
{
"key": "scope",
"value": "",
"type": "string"
},
{
"key": "tokenType",
"value": "Bearer",
"type": "string"
},
{
"key": "client_authentication",
"value": "header",
"type": "string"
},
{
"key": "password",
"value": "Guoq07@5",
"type": "string"
},
{
"key": "username",
"value": "jacky.liu02@sap.com",
"type": "string"
},
{
"key": "headerPrefix",
"value": "Bearer",
"type": "string"
}
]
},
"method": "GET",
"header": [],
"url": {
"raw": "{{printserviceurl}}/qm/api/v1/rest/queues",
"host": [
"{{printserviceurl}}"
],
"path": [
"qm",
"api",
"v1",
"rest",
"queues"
]
}
},
"response": []
},
{
"name": "Step3 Upload Document",
"event": [
{
"listen": "test",
"script": {
"exec": [
"if(pm.response.to.have.status(201)){",
" pm.collectionVariables.set(\"dmId\",pm.response.text());",
" pm.collectionVariables.set(\"fileName\",pm.request.body.formdata.all()[0].src.split(\"/\").last());",
"}",
" "
],
"type": "text/javascript"
}
}
],
"protocolProfileBehavior": {
"disabledSystemHeaders": {
"accept-encoding": true,
"connection": true,
"accept": true
}
},
"request": {
"auth": {
"type": "oauth2",
"oauth2": [
{
"key": "grant_type",
"value": "client_credentials",
"type": "string"
},
{
"key": "client_authentication",
"value": "header",
"type": "string"
},
{
"key": "clientId",
"value": "{{printclientkey}}",
"type": "string"
},
{
"key": "accessTokenUrl",
"value": "{{printtokenurl}}",
"type": "string"
},
{
"key": "clientSecret",
"value": "{{printclientsecret}}",
"type": "string"
},
{
"key": "tokenName",
"value": "printkey",
"type": "string"
},
{
"key": "addTokenTo",
"value": "header",
"type": "string"
},
{
"key": "scope",
"value": "",
"type": "string"
},
{
"key": "tokenType",
"value": "Bearer",
"type": "string"
},
{
"key": "password",
"value": "Guoq07@5",
"type": "string"
},
{
"key": "username",
"value": "jacky.liu02@sap.com",
"type": "string"
},
{
"key": "headerPrefix",
"value": "Bearer",
"type": "string"
}
]
},
"method": "POST",
"header": [
{
"key": "If-None-Match",
"value": "*",
"type": "default"
},
{
"key": "scan",
"value": "true",
"type": "default"
},
{
"key": "Accept",
"value": "application/json",
"type": "default"
},
{
"key": "DataServiceVersion",
"value": "2.0",
"type": "default"
}
],
"body": {
"mode": "formdata",
"formdata": [
{
"key": "file",
"type": "file",
"src": "/Users/I501000/Downloads/q4.jpg"
}
]
},
"url": {
"raw": "{{printserviceurl}}/dm/api/v1/rest/print-documents",
"host": [
"{{printserviceurl}}"
],
"path": [
"dm",
"api",
"v1",
"rest",
"print-documents"
]
}
},
"response": []
},
{
"name": "Step4 Create Print Task",
"event": [
{
"listen": "test",
"script": {
"exec": [
""
],
"type": "text/javascript"
}
},
{
"listen": "prerequest",
"script": {
"exec": [
"pm.collectionVariables.get(\"dmId\");"
],
"type": "text/javascript"
}
}
],
"request": {
"auth": {
"type": "oauth2",
"oauth2": [
{
"key": "grant_type",
"value": "client_credentials",
"type": "string"
},
{
"key": "client_authentication",
"value": "header",
"type": "string"
},
{
"key": "clientId",
"value": "{{printclientkey}}",
"type": "string"
},
{
"key": "accessTokenUrl",
"value": "{{printtokenurl}}",
"type": "string"
},
{
"key": "clientSecret",
"value": "{{printclientsecret}}",
"type": "string"
},
{
"key": "tokenName",
"value": "printkey",
"type": "string"
},
{
"key": "addTokenTo",
"value": "header",
"type": "string"
},
{
"key": "scope",
"value": "",
"type": "string"
},
{
"key": "tokenType",
"value": "Bearer",
"type": "string"
},
{
"key": "password",
"value": "Guoq07@5",
"type": "string"
},
{
"key": "username",
"value": "jacky.liu02@sap.com",
"type": "string"
},
{
"key": "headerPrefix",
"value": "Bearer",
"type": "string"
}
]
},
"method": "PUT",
"header": [
{
"key": "If-None-Match",
"value": "*",
"type": "default"
}
],
"body": {
"mode": "raw",
"raw": "{\n \"numberOfCopies\": 1,\n \"username\": \"test user\",\n \"qname\": \"{{printQ}}\",\n \"metadata\": {\n \"business_metadata\": {\n \"business_user\": \"user1\",\n \"object_node_type\": \"object_node_1\"\n },\n \"version\": 1.2\n },\n \"printContents\": [\n {\n \"objectKey\": \"{{dmId}}\",\n \"documentName\": \"{{fileName}}\"\n }\n ]\n}",
"options": {
"raw": {
"language": "json"
}
}
},
"url": {
"raw": "{{printserviceurl}}/qm/api/v1/rest/print-tasks/{{dmId}}",
"host": [
"{{printserviceurl}}"
],
"path": [
"qm",
"api",
"v1",
"rest",
"print-tasks",
"{{dmId}}"
],
"query": [
{
"key": "itemId",
"value": "2349add8-d48e-46ee-91d6-e7bb98cfdbff",
"disabled": true
}
]
}
},
"response": []
}
],
"event": [
{
"listen": "prerequest",
"script": {
"type": "text/javascript",
"exec": [
""
]
}
},
{
"listen": "test",
"script": {
"type": "text/javascript",
"exec": [
""
]
}
}
],
"variable": [
{
"key": "printtokenurl",
"value": "https://apjcoe-x66183k9.authentication.eu10.hana.ondemand.com/oauth/token",
"type": "default"
},
{
"key": "printclientkey",
"value": "sb-6aa6869e-be85-4b6f-b2345|print-app!b46384",
"type": "default"
},
{
"key": "printclientsecret",
"value": "Dwsj8LMo=",
"type": "default"
},
{
"key": "printserviceurl",
"value": "https://api.eu10.print.services.sap",
"type": "default"
},
{
"key": "dmId",
"value": "",
"type": "default"
},
{
"key": "fileName",
"value": ""
},
{
"key": "printQ",
"value": ""
},
{
"key": "bearToken",
"value": ""
}
]

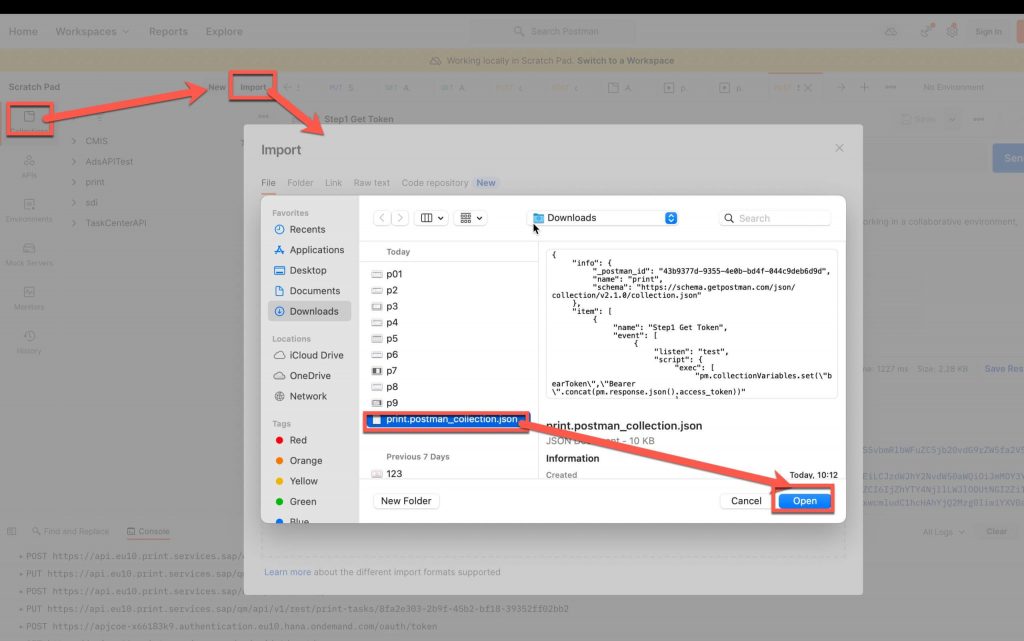

}Step 6. Import collection from step 5’s json file in postman.

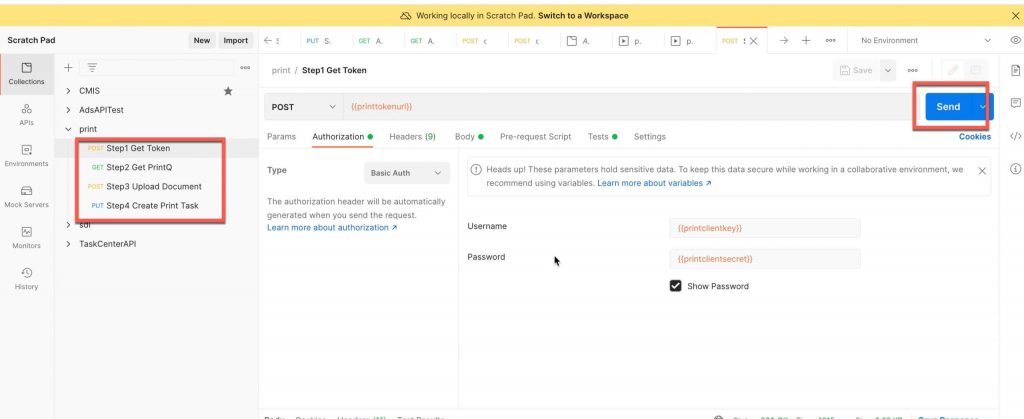

Step 7. Maintain collection variable base on service key information from step 4.
only maintain the variables in the red frame.

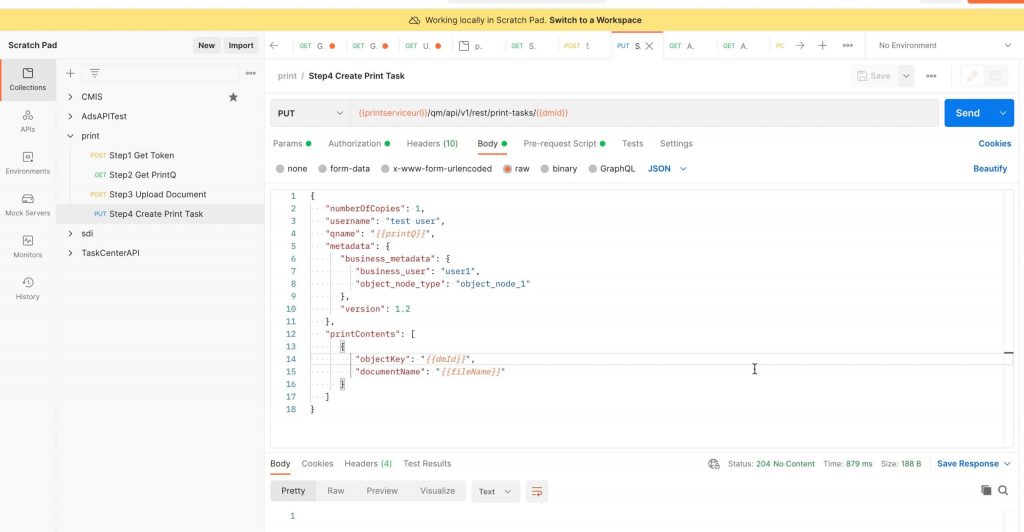

Step 8. Execute the request steps from step 1 to step 4 sequently in postman.
Note: In step 3, please select a picture or a pdf document in request body.

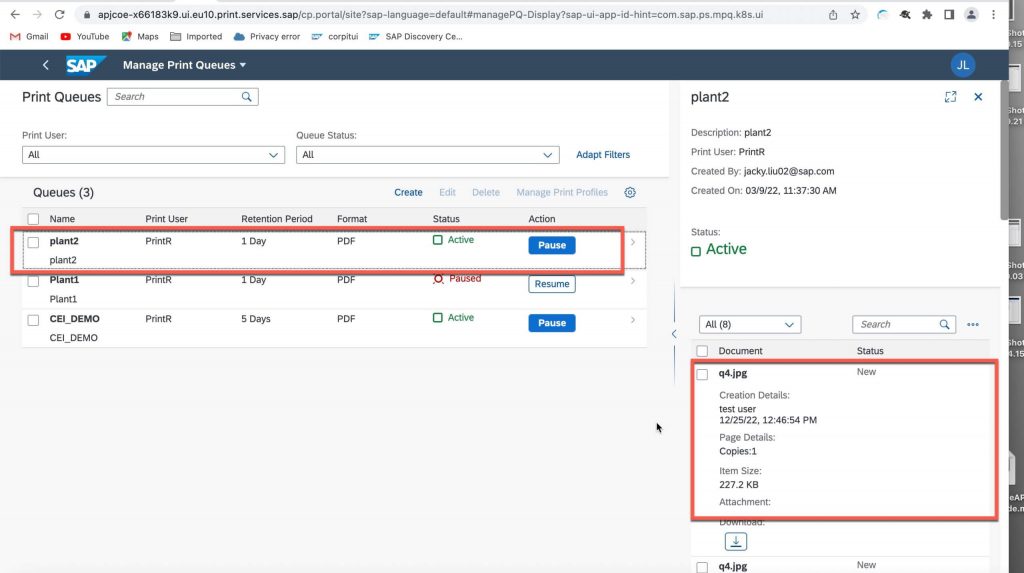

Step 9. Check the result in print Q
We can find the created print task in the following screenshot.
