Using Virtual Elements with CDS in Fiori elements

Overview

In this post you will learn, how we can use ‘READ_TEXT’ function for Fiori elements application. Consumption CDS is generating the Fiori elements application but sometimes we need Abap Logic calculation. (Calculate field values using Abap resources one of them read text belongs to material or orders etc.).

Also Read: SAP Fiori System Administration Certification Preparation Guide

In this case, we can use the CDS with Virtual Element.

What are the Virtual Elements and Why we use that?

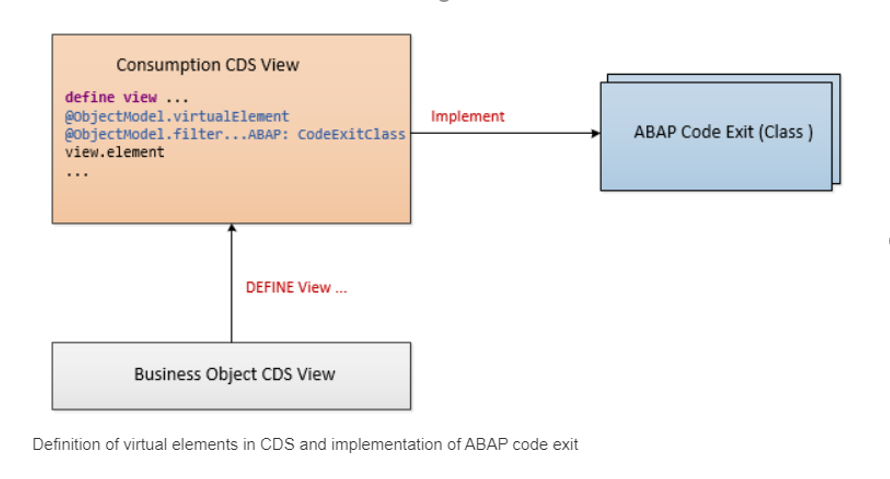

Sometimes when we make a report, we need calculations for fields and we can not easily make calculations with CDS so that their values can be calculated directly on SAP HANA. Virtual elements represent temporary fields in applications. They are defined consumption CDS view with annotations within the SELECT list. However, the field calculations display by Abap classes that implement the specific code exit interfaces provided for this purpose.

The code exit class for virtual elements. We should implement suitable interfaces according to the use case;

  • Interface IF_SADL_EXIT_CALC_ELEMENT_READ
  • Interface IF_SADL_EXIT_FILTER_TRANSFORM
  • Interface IF_SADL_EXIT_SORT_TRANSFORM

Implementation Steps:

1. Use Eclipse for creating CDS View. Use Virtual element in CDS with annotations.

CDS View;

@AbapCatalog.sqlViewName: 'ZI_V_GOODPACK'

@AbapCatalog.compiler.compareFilter: true

@AbapCatalog.preserveKey: true

@AccessControl.authorizationCheck: #CHECK

@EndUserText.label: 'Goodpack Series No - Basic View'


@OData: { publish: true }


@UI.headerInfo:{ typeNamePlural: 'GoodPack'}

define view ZI_GOODPACK


  as select from    likp             as l1

    inner join      lips             as l2 on  l2.vbeln = l1.vbeln and l2.pstyv = 'ZPAC'

    left outer join kna1             as k1 on k1.kunnr = l1.kunnr

    left outer join vbfa             as v1 on  v1.vbelv   = l1.vbeln and v1.vbtyp_n = '8'

    left outer join vttk             as v2 on v2.tknum = l1.vbeln

    left outer join /scdl/db_proch_o as t1 on t1.docno = l1.vbeln

    left outer join /scwm/huref      as t2 on t2.docid = t1.docid

    left outer join /scwm/hu_ident   as t3 on  t3.guid_hu = t2.guid_hu and t3.idart   = 'Y'

    left outer join lips             as l3 on l3.vbeln = l1.vbeln

    left outer join vbrp             as v4 on  v4.vgbel = l1.vbeln and v4.vgpos = l3.posnr

    left outer join vbrk             as v5 on  v5.vbeln = v4.vbeln and sfakn    = ''


{


      @UI: { lineItem: [ { position: 10, label: 'Delivery'} ]}

  key l1.vbeln,


      @UI.hidden: false

      @UI.selectionField: [{ position: 10 }]

      @Consumption.valueHelpDefinition:[{entity:{name:'ZI_VKORGSH',element:'vkorg'}}]

      @Consumption.filter : { selectionType : #RANGE, multipleSelections : true, defaultValue : '1250'}

      l1.vkorg,


      @UI.hidden: false

      @UI.selectionField: [{ position: 20 }]

      @Consumption.valueHelpDefinition:[{entity:{name:'ZI_WERKSSH',element:'werks'}}]

      l1.werks,


      @UI: { lineItem: [ { position: 20, label: 'Customer'} ]}

      @UI.selectionField: [{ position: 30 }]

      @Consumption.valueHelpDefinition:[{entity:{name:'ZI_KUNNRSH',element:'kunnr'}}]

      l1.kunnr,


      @UI: { lineItem: [ { position: 30, label: 'Customer Name'} ]}

      concat( concat( k1.name1, ' '), k1.name2 ) as name1,


      @UI: { lineItem: [ { position: 40, label: 'Delivery Note'} ]}

      l1.xblnr,


      @UI: { lineItem: [ { position: 40, label: 'Container ID'} ]}

      v2.signi,


      @UI: { lineItem: [ { position: 50, label: 'Actual Goods Movement Date'} ]}

      l1.wadat_ist,


      @UI: { lineItem: [ { position: 60, label: 'Material Number'} ]}

      l2.matnr,


      @UI: { lineItem: [ { position: 70, label: 'Short text for sales order item'} ]}

      l2.arktx,


      @UI: { lineItem: [ { position: 80} ]}

      v1.vbeln                                   as vbfa_vbeln,


      @UI: { lineItem: [ { position: 90} ]}

      t4.konsimento_tarih,

      @UI: { lineItem: [ { position: 100} ]}

      t4.konsimento_no,


      @UI: { lineItem: [ { position: 110, label: 'Virtual Element'} ]}

      @ObjectModel.virtualElement: true

      @ObjectModel.virtualElementCalculatedBy: 'ZCL_DEMO_CDS_CALC'

      cast( ''  as abap.char(255))               as note


}

group by

  l1.vbeln,

  l1.vkorg,

  l1.werks,

  l1.kunnr,

  k1.name1,

  k1.name2,

  l1.xblnr,

  l1.wadat_ist,

  l2.matnr,

  l2.arktx,

  v1.vbeln,

  v2.signi,

  t2.guid_hu,

  t3.huident,

  t4.konsimento_tarih,

  t4.konsimento_no

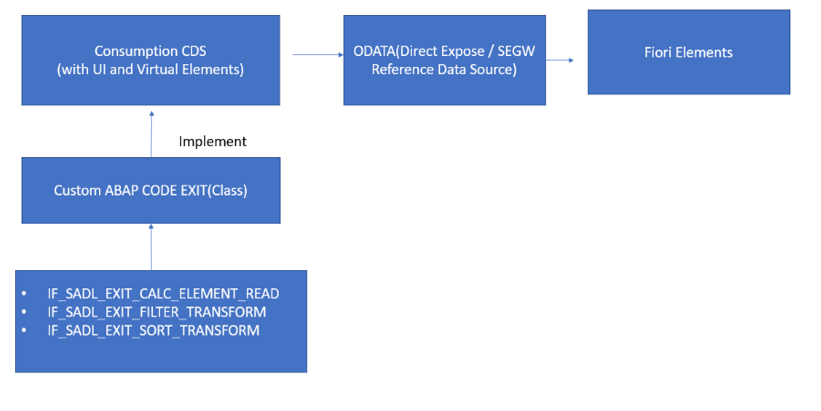

Define relationship with CDS, ODATA and Custom Class.

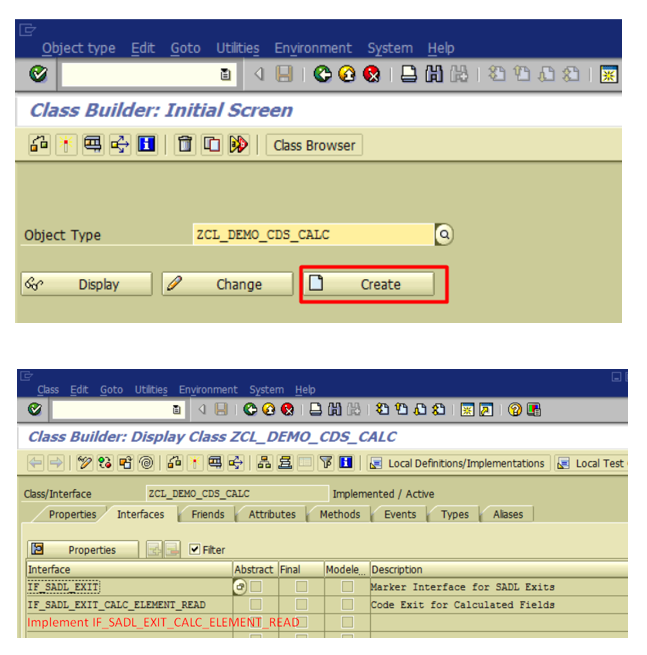

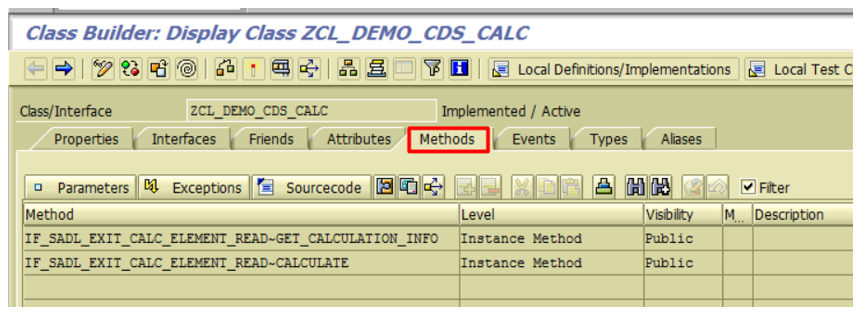

2. Create custom class and implement intarface ‘IF_SADL_EXIT_CALC_ELEMENT_READ’. Implement both methods ‘GET_CALCULATE_INFO’ and ‘CALCULATE’.

  • Method GET_CALCULATION_INFO is used to provide the list of fields which is required for the calculation.
  • Method CALCULATE is actual method where we implement the custom logic.

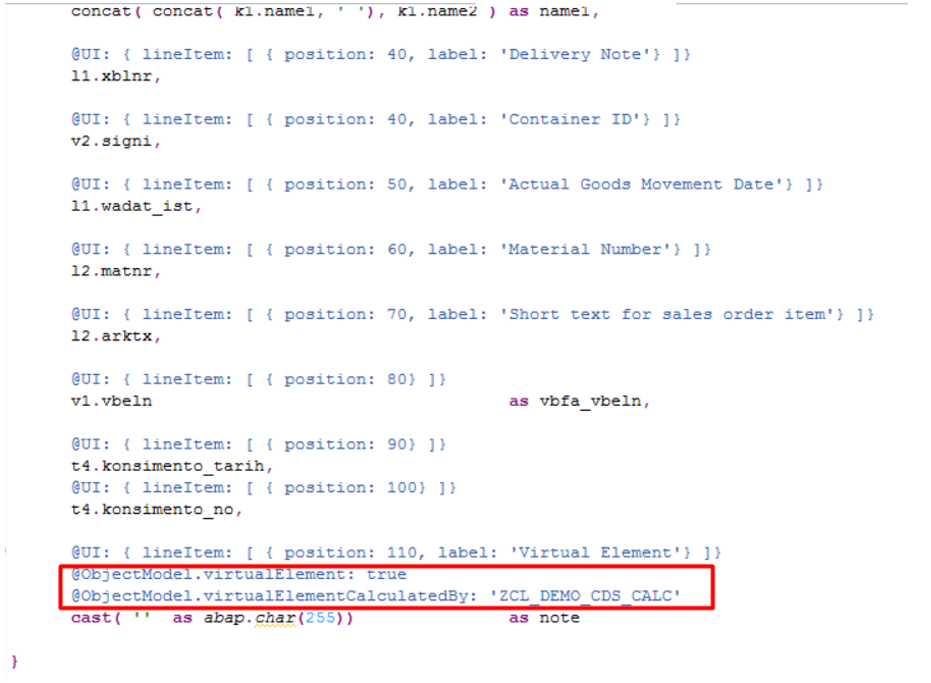

  • Implementation Step 1 : We called custom class in CDS view.
@ObjectModel.virtualElement: true

       @ObjectModel.virtualElementCalculatedBy: 'ZCL_DEMO_CDS_CALC'

       cast( ''  as abap.char(255))  as note

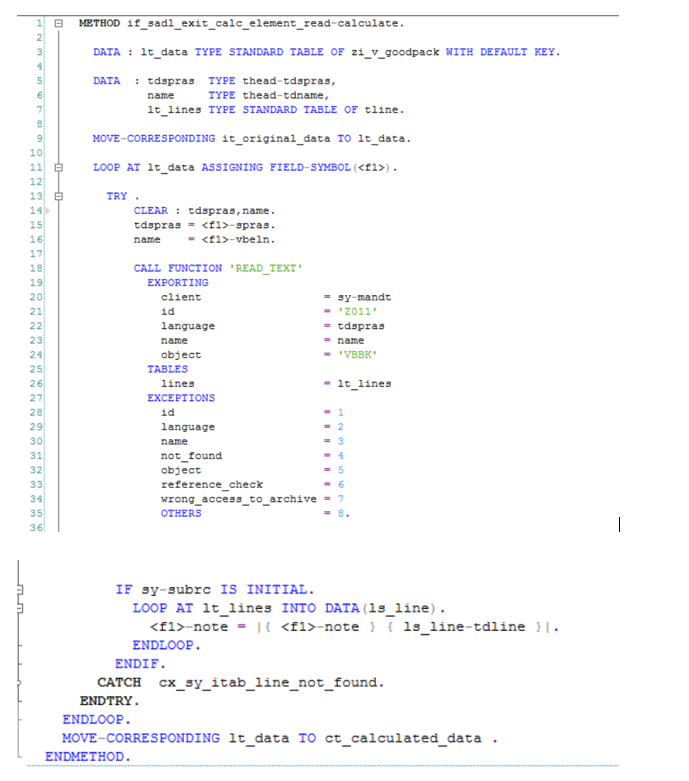

Use the CALCULATE method for utilizing ABAP resource.

3. Use SAP Web IDE for creating List Reporting App.

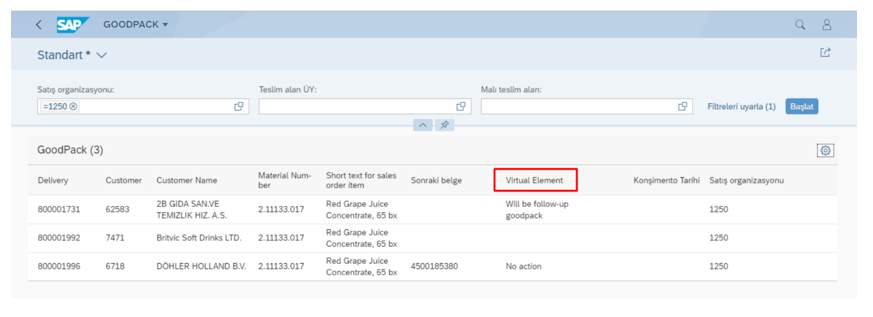

Output
